5 Maintenance
Preserving operational readiness
90°
90°

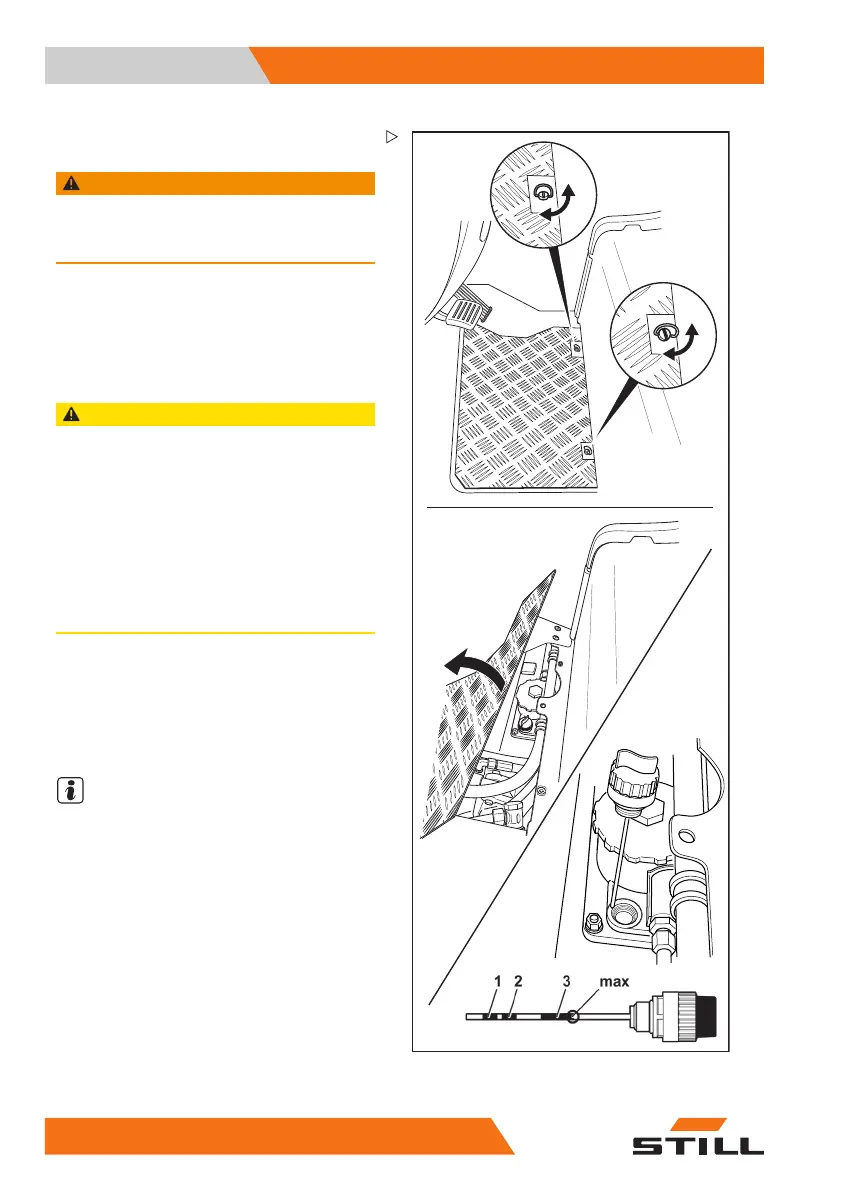

Checking the hydraulic oil lev
el
WARNING
Hydraulic oils are hazardous to your health.
– Observe the safety regulations in the chapter
entitled "Hydraulic fluid".
– Park the truck safely on a horizontal surface.
– Tilt the lift mast backwards until it reaches
the stop.
– Lower the fork carriage; if attachments are
fitted, retract the working cylinders.
CAUTION
Potential for damage to the battery male connector!
If the battery male connector is disconnected while
the truck is switched on (under load), an arc will be
produced. This can lead to erosion at the contacts,
which considerably shortens the service life of the
contacts.
– Switch off the truck before the battery male
connector is disconnected.
– Do not disconnect the battery male connector
while the truck is switched on, except in an
emergency.
– Disconnect the battery male connector.
– Turn the bayonet catches on the bottom
plate 90° to the left.
– Fold up the bottom
plate with the floor mat
and secure it in pl
ace.
NOTE
The components for dual-pedal operation
are attached to the bottom plate from below.
If the electric cable for dual-pedal operation
is stretched out, disconnect the connection
assembly from the drive potentiometer. After
checking the oil level, reattach the connection
assembly.
– Unscrew the breather filter with the dipstick
in an anti-clockwise direction.
– Keep the breather filter and dipstick in a
horizontal position.
– Check the oil level on the dipstick.
