Operating devices and display elem
ents
Fingertip
1
2
3
4
5
6
7
8
9
10
11

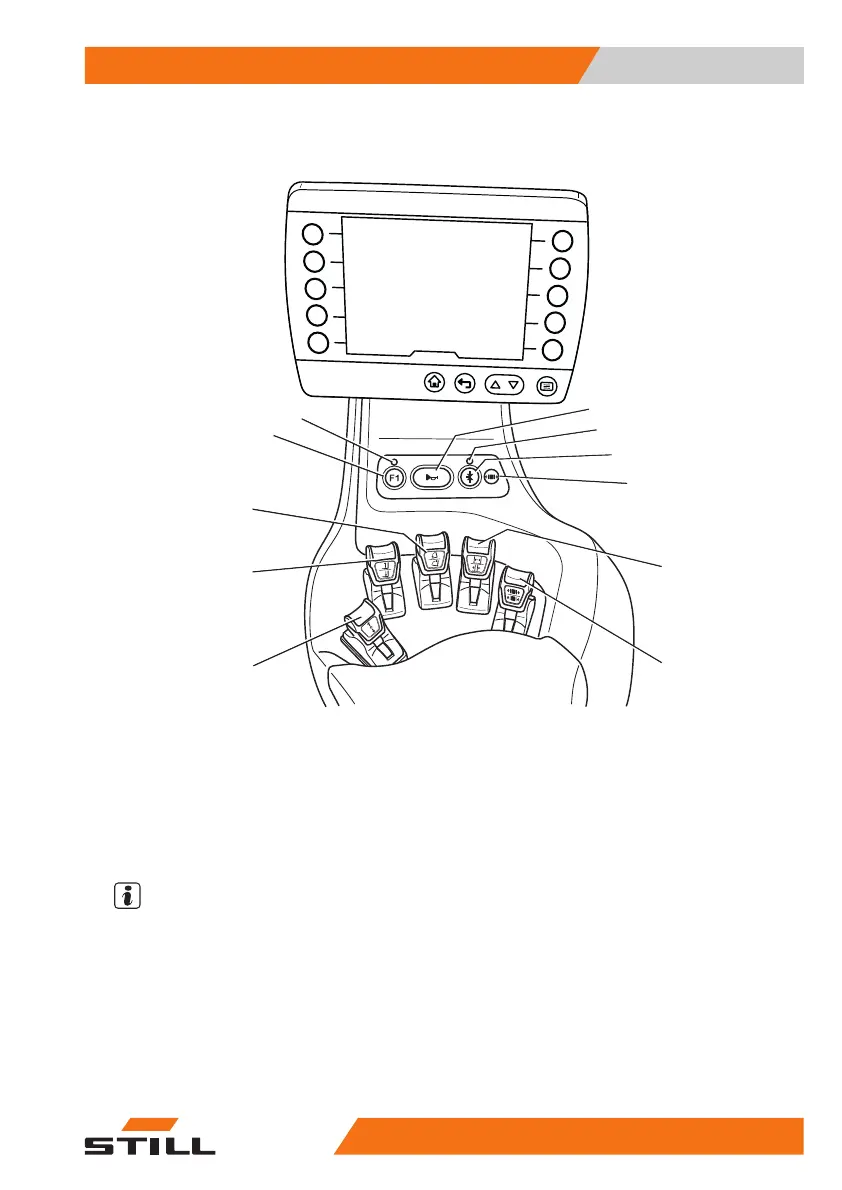

1 Signal horn button
2 LED for the "5th function"
3 Function key for the "5th function"
4 LED for the "Clamp release"
5 Operating lever for "Auxiliary hydraulics 1"
6 Operating lever for "Auxiliary hydraulics 2"
7 Drive direction switch
8 "Lift/lower" operating lever
9 "Tilt" operating lever
10 "F1" function key
11 LED for "F1"
NO
TE
The
authorised service centre can assign
dif
ferent functions to the "F1" function key.
563
