Overviews 3
Operating devices and display elem
ents

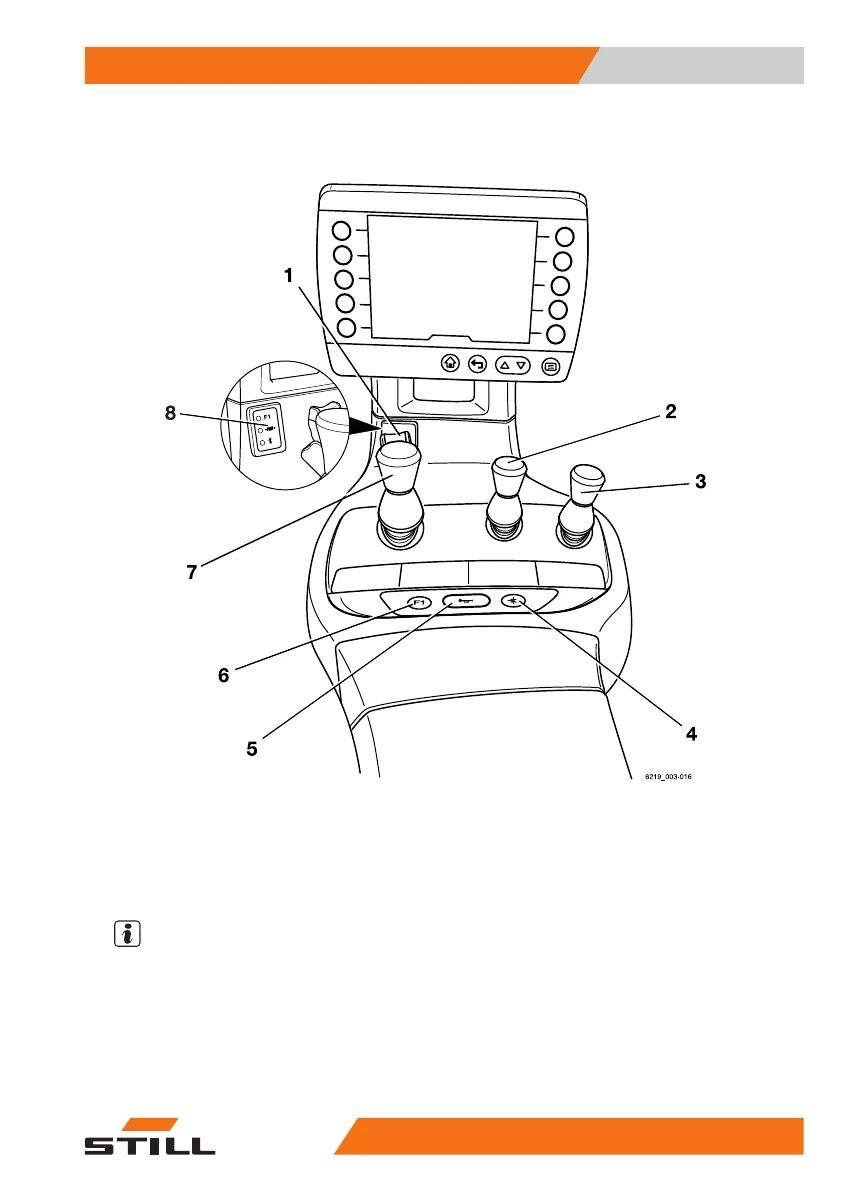

Triple mini-lever
1Drive
direction switch
2 "Auxil
iary hydraulics 1" operating lever
3"Aux
iliary hydraulics 2" operating lever
4F
unction key for the "5th function"
5 Signal h
orn button
6"F1"fu
nction key
7"Lif
t mast" 360° lever
8 Displ
ay field for the hydraulic functions
NOTE
The authorised service centre can assign
different functions to the "F1" function key.
563
68011531 EN - 06/2019 - 02 83
