4 Operation

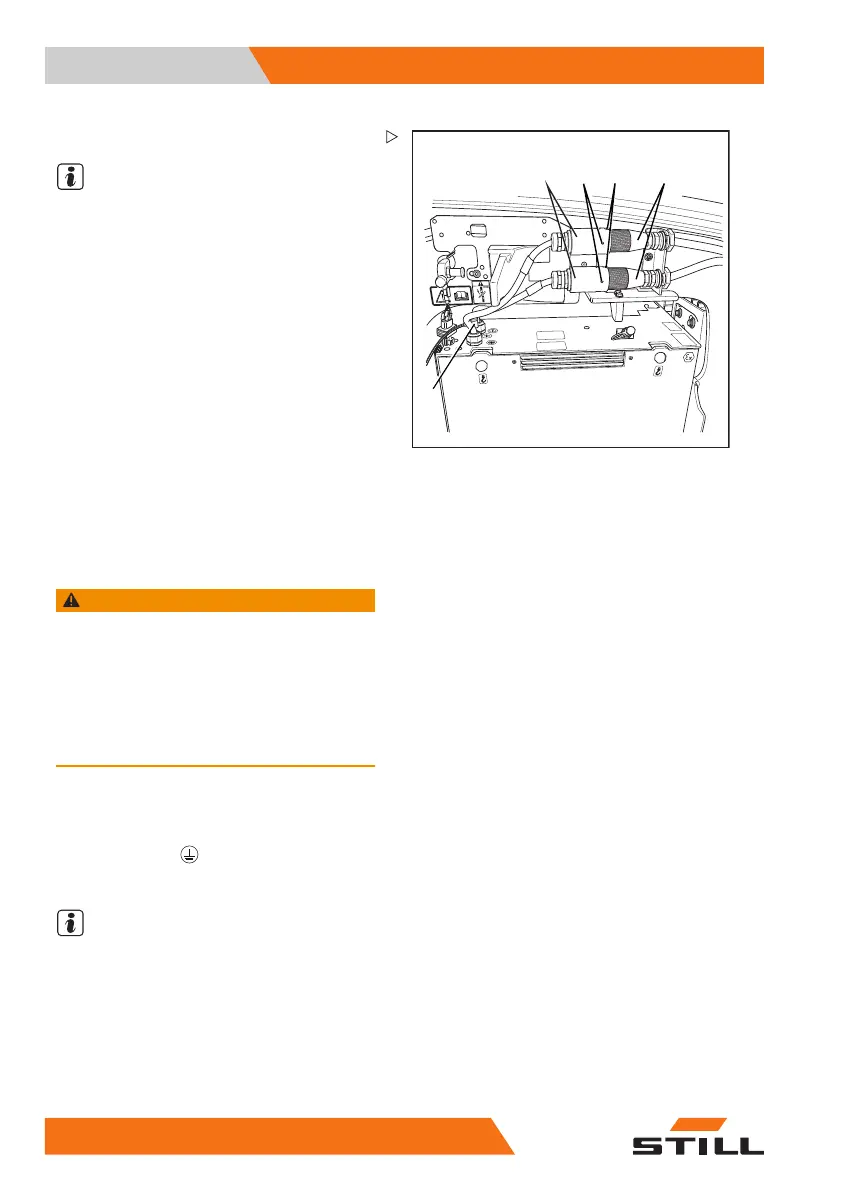

Connecting and disconnecting the b
attery male connector
6219_901-020
123 4
5
Category 2 version
NOTE
The category 2 and category 3 versions
of the trucks have different battery male
connectors. The specific features of the
category 2 version are described here. The
battery male connectors on the category 2
version are non-interchangeable.
•
The "positive" battery male connector (red
marking) is routed through two grooves.
•
The "negative" battery male connector (blue
marking) is routed through one groove.
– Open the battery door.
– Loosen the screws (2).
– Connect the battery male connectors (2)
by twisting them into the grooves (3) in the
sockets (4).
– Tighten the screws (1) to secure the battery
male connectors in place.
WARNING
Risk of accident!
The battery male connectors are only protected
against disconnection when the screws (2) are
tightened.
Otherwise, the battery male connectors may work
loose during operation. If this happens, the power
supply of the truck is interrupted and it is no longer
possible to operate the truck.
– If necessary, connect the potential equali-
sation (5).
The potential equalisation point is marked with
decal information
.
– Close the ba
ttery door.
NOTE
The truck is not approved for use in potentially
explosive areas if the battery male connectors
are unsecured.
Category 3 version
– Open the battery door.
306
56368011531 EN - 06/2019 - 02
