4 Operation
Attachments

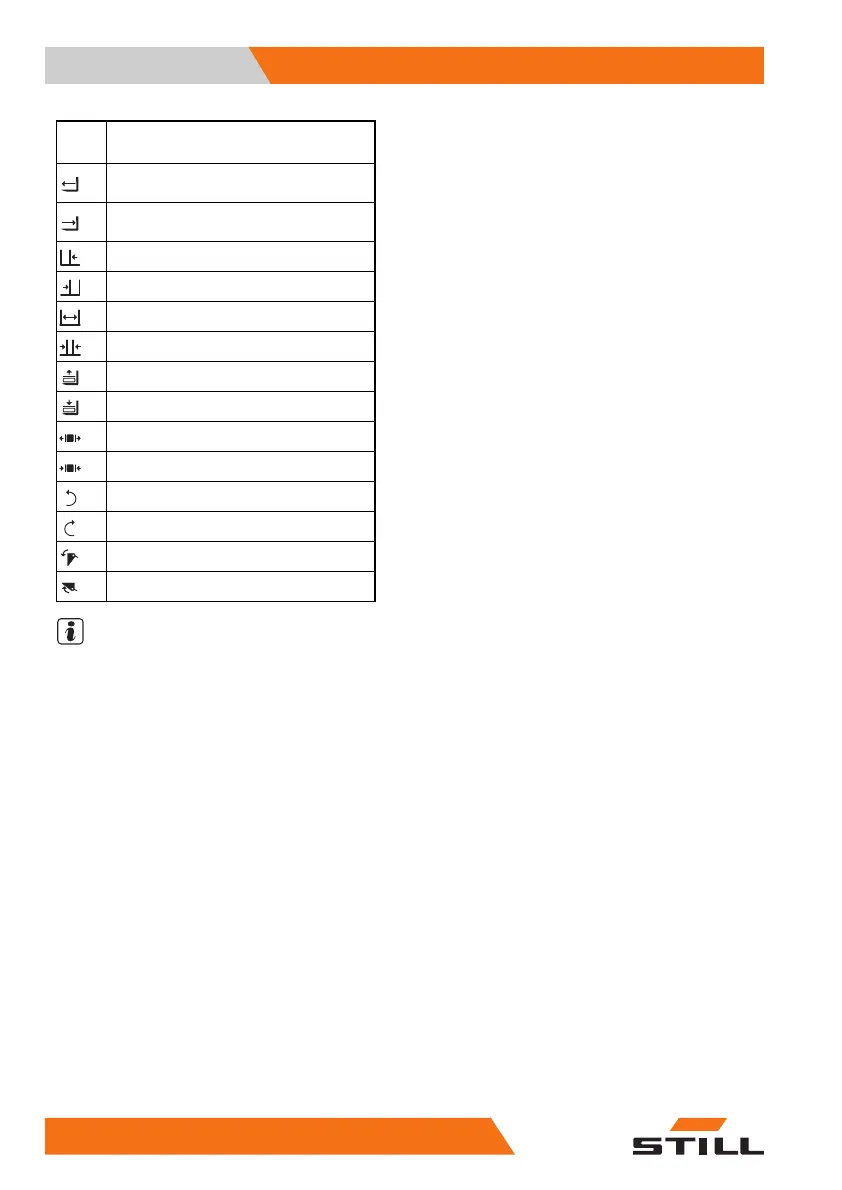

Picto-
gram
Attachment function
Movethesideshiftframeorfork
forwards
Movethesideshiftframeorfork
backwards
Move the sideshift to the left
Move sideshift to the right
Adjust fork arms: open
Adjust fork arms: close
Release load retainer
Clamp load retainer
Open clamps
Close clamps
Rotate to the left
Rotate to the rig
ht
Tip shovel over
Tip shovel back
NOTE
The pictograms are affixed according to
the attachment fitted at the factory. If an
attachment with different functions is fitted,
the authorised service centre must check that
the pictograms bear the correct representation
and must change them if necessary.
– For actuation of the clamp locking mecha-
nism, see the section entitled "Clamp lock-
ing mechanism (variant)".
246
56368011531 EN - 06/2019 - 02
