Still RX20-20L - Before picking up a load

4 Operation
Lifting
+
F
6219_003-165_V2
D
C
2

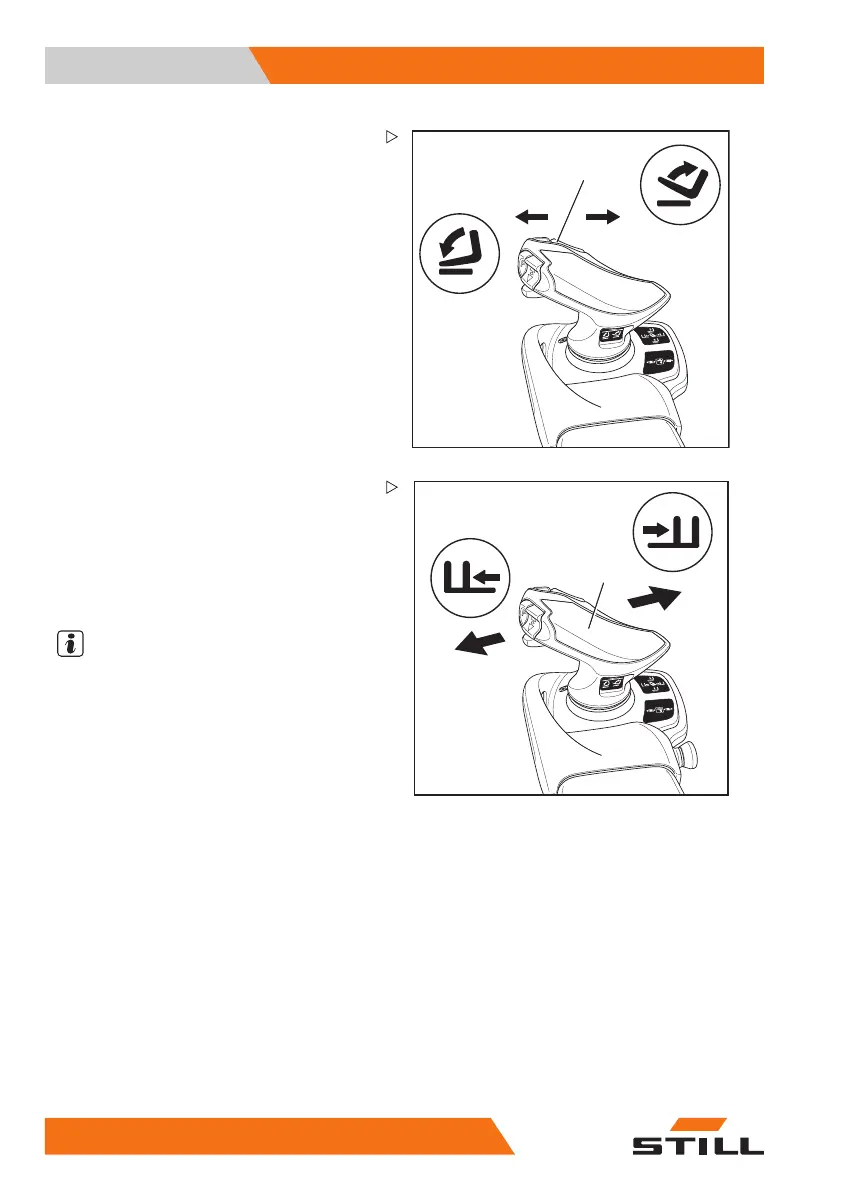

Tilt the lift mast
Totilttheliftmastforwards:
– Tilt the horizontal rocker button (2) to the
left (C).
To tilt the lift mast backwards:
– Tilt the horizontal rocker button (2) to the
right (D).
+
F
1
E
F
Fork-carriage sideshift
To move the fork carriage to the left.
– Push the Joystic
k 4Plus (1) to the left (E).
To move the fork carriage to the right:
– Push the Joystick 4Plus (1) to the right (F).
NOTE
The pictograms on the Joystick 4Plus indicate
the direction of movement of the lift mast and
the fork carriage.
