Operation 4
Lifting
WARNING
There is a risk of tipping!
The weight and dimensions of the fork extension
affect the stability of the truck. The permissible
weights stated on the capacity rating plate must be
reduced in proportion to the actual load distance.
If the truck is equipped with a fork extension ex
works, then the capacity rating plate will already
have been adjusted accordingly.
– Observe the load capacity; refer to the chapter
entitled "Before picking up a load".
NOTE
If the truck is equipped with the "load mea-
surement" comfort feature (variant), a "zero
adjustment of the load measurement" must
always be performed after the fork arms have
been changed. Otherwise, correct load mea-
surement cannot be guaranteed.
7071_003-104_V2
1
2
3

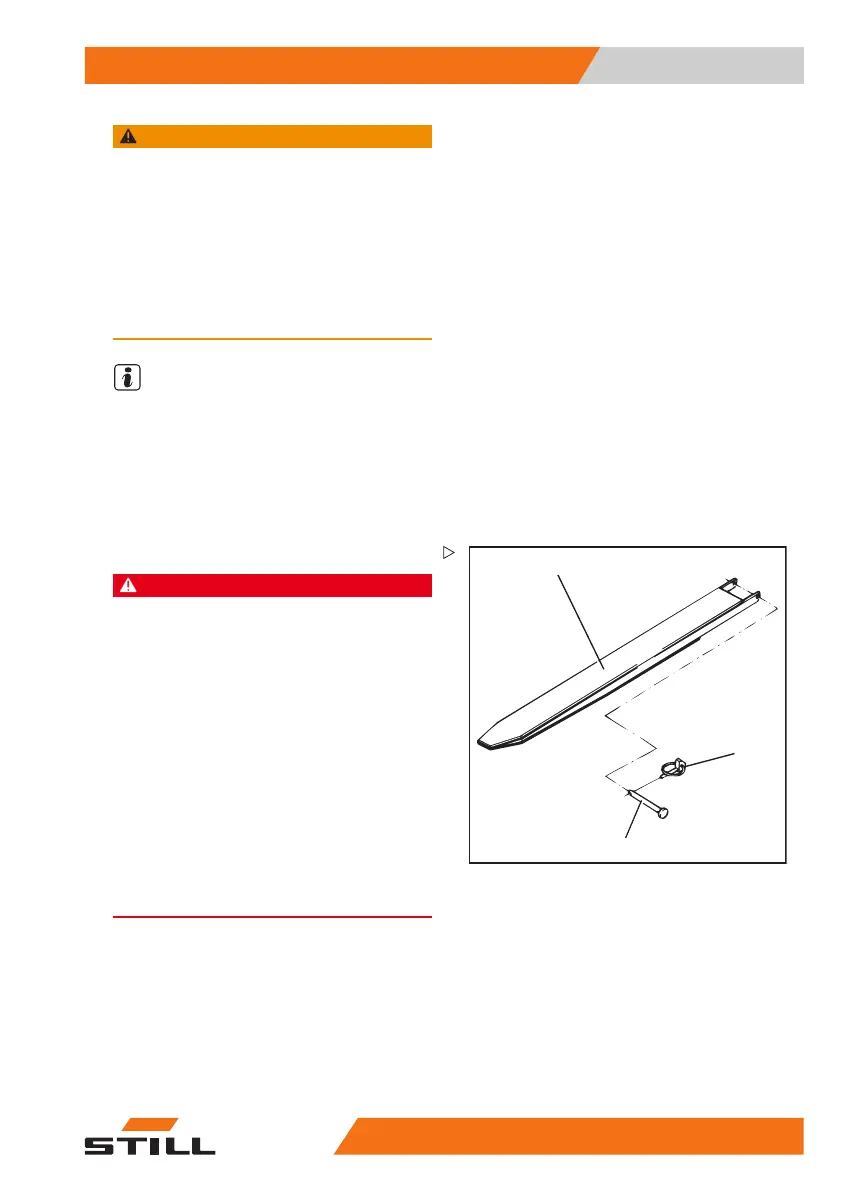

Attaching
DANGER
Risk of fatal i
njury from falling load!
At least 60% of
the length of the fork extension must
lieonthefor
k arm. No more than 40% of the length
of the fork e
xtension may overhang the end of the
fork arms
. In addition, the fork extension must be
secured
against slipping from the fork arm.
If the
fork extension (1) is not secured with a secu-
ring
bolt (2) and linch pin (3), the load may fall, along
wi
th the fork extension.
–P
ush the fork extension all the way to the back of
the fork.
– Make sure that 60% of the length of the fork
extension is on the fork arm.
– Always secure the fork extension with the
securing bolt.
– Always secure the securing bolt with the linch
pin.
– Remove the linch pin (3) from the securing
bolt (2).
– Remove the securing bolt from the fork
extension (1).
– Push the fork extension onto the fork arms
until the fork extension is flush with the fork
back.
563
68011531 EN - 06/2019 - 02 183
