4 Operation

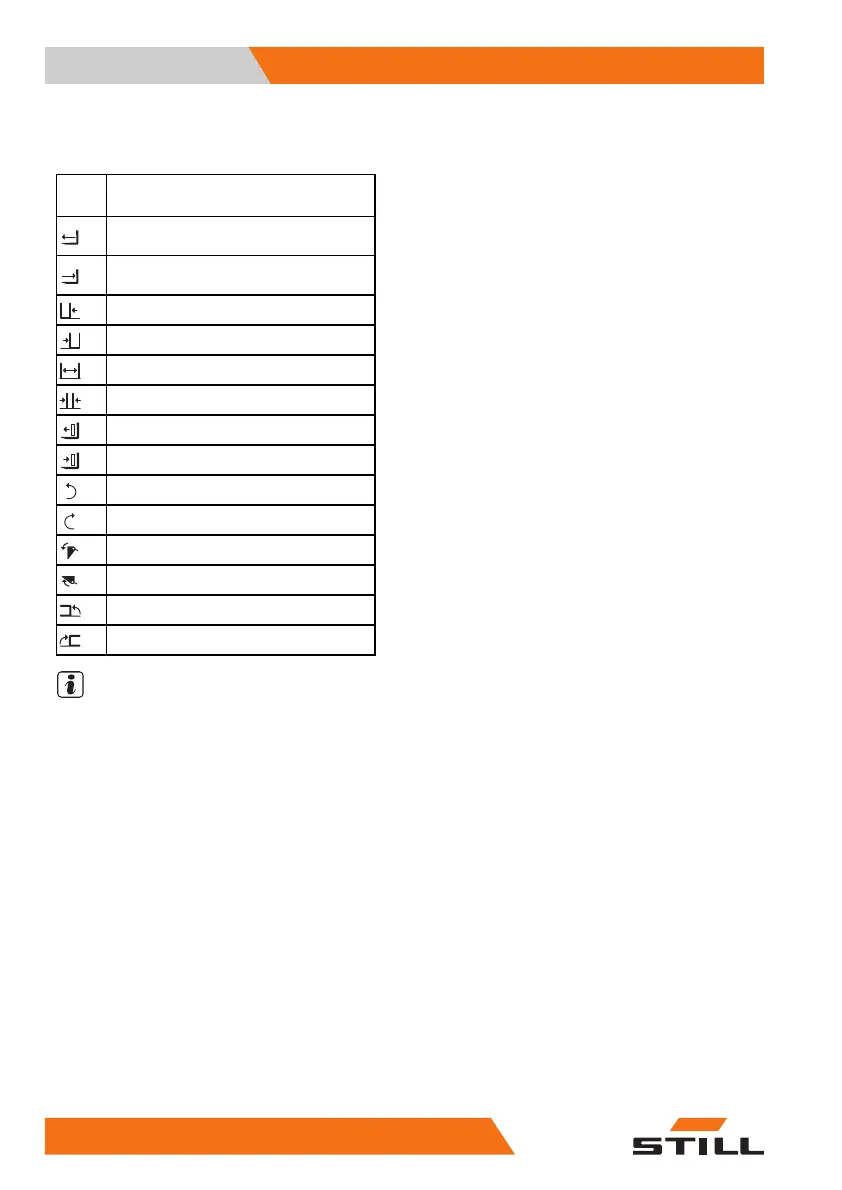

Attachments
– Note the following attachment functions and
pictograms.
Picto-
gram
Attachment function
Movethesideshiftframeorfork
forwards
Movethesideshiftframeorfork
backwards
Move the sideshift to the left
Move sideshift to the ri
ght
Adjust fork arms: open
Adjust fork arms: clos
e
Push off the load
Pull in the load
Rotate to the left
Rotate to the right
Tip shovel over
Tip shovel back
Swivel the fork to the left
Swivel the for
k to the right
NOTE
The pictograms are affixed according to the at-
tachment fitted at the factory. If an attachment
with different functions is fitted, the authorised
service centre must check that the pictograms
bear the correct representation and must
change them if necessary. If the attachment is
known, the relevant symbol is stuck on the pa-
nelling in front of the corresponding operating
lever.
234
56368011531 EN - 06/2019 - 02
