4 Operation
Attachments

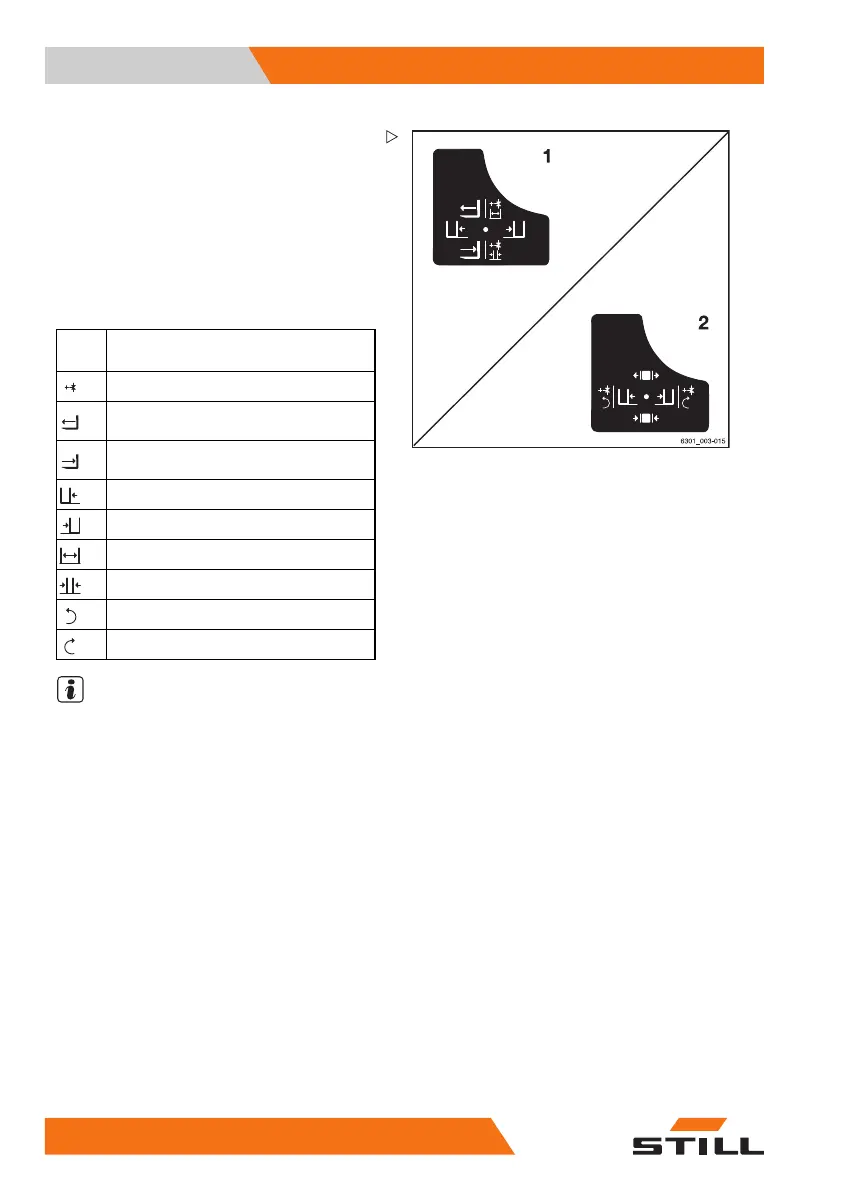

Example using the pictograms for configura-
tion (1):
If the "attachments" cross le
ver (1) is moved
in the direction of the arrow (
A), the fork is
extended.
If the function key for the "5th function" (3) is
actuated and the "attachments" cross lever (1)
is moved in the direction of the arrow (A), the
fork arms open.
Picto-
gram
Attachment function
Auxiliary hydraulics "5t
h function"
Movethesideshiftframeorfork
forwards
Movethesideshiftframeorfork
backwards
Move the sideshift to the left
Move sideshift to th
e right
Adjust fork arms: op
en
Adjust fork arms:
close
Rotate to the left
Rotate to the right
NOTE
The pictograms are affixed according to
the attachment fitted at the factory. If an
attachment with different functions is fitted,
the authorised service centre must check that
the pictograms bear the correct representation
and must change them if necessary.
