4 Operation
Attachments

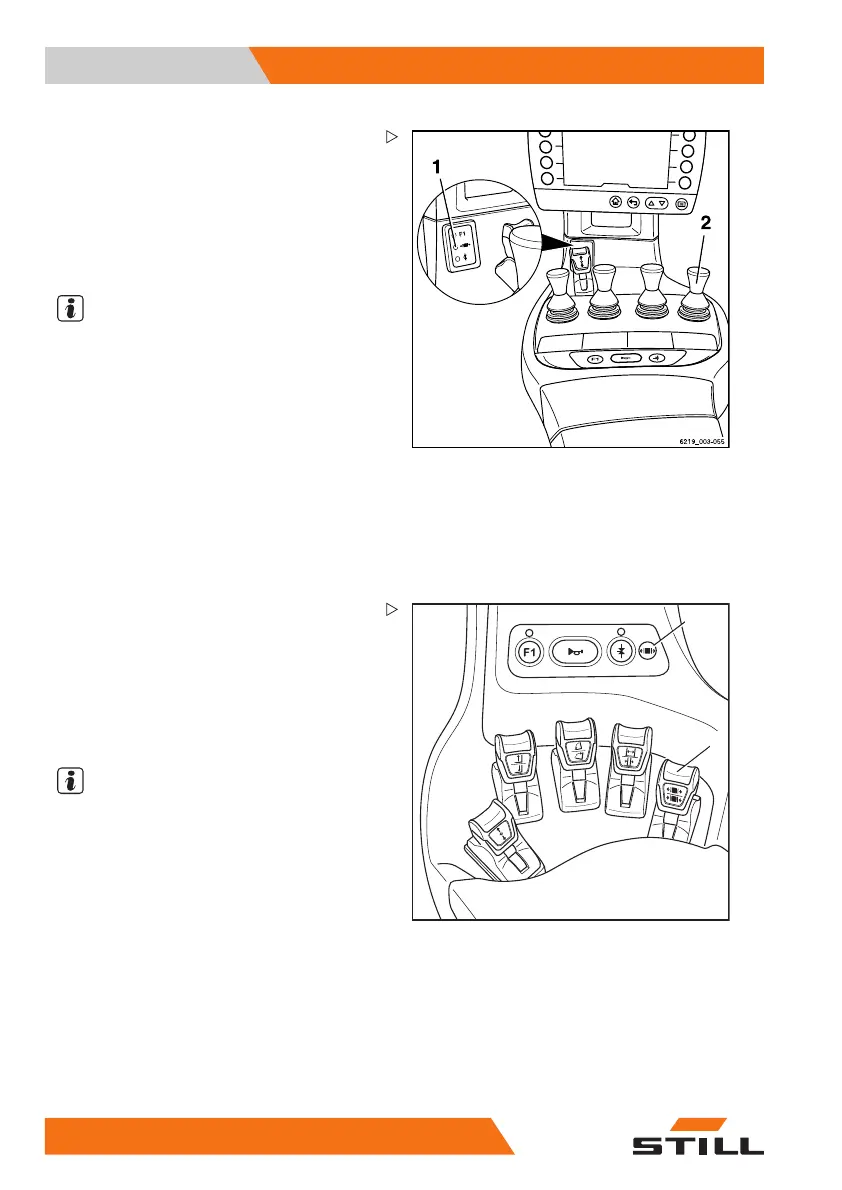

Quadruple mini-lever
– To release the clamp locking mechanism,
push the operating lever (2) forwards.
The clamp locking mechanism is released.
The LED for the "clamp release" (1) lights
up and remains lit while the clamp locking
mechanism is released.
NOTE
The hydraulic function fo
r opening the clamp
is available for one secon
d after the clamp
locking mechanism is rele
ased. After one
second, the clamp locking
mechanism is
automatically reactiv
ated.
– To open the clamp, push the operating
lever (2) forwards again.
It is not necessary to release the clamp locking
mechanism in order to close the clamp.
– To close the clamp, pull
the operating
lever (2) backwards.
1
2
6219_003-207
Fingertip
– To release the clamp locking mechanism,
push the operating lever (2) forwards.
The clamp locking mechanism is released.
The LED for the "clamp release" (1) lights
up and remains lit while the clamp locking
mechanism is released.
NOTE
The hydraulic function for opening the clamp
is available for one second after the clamp
locking mechanism is released. After one
second, the clamp locking mechanism is
automatically reactivated.
– To open the clamp, push the operating
lever (2) forwards again.
It is not necessary to release the clamp locking
mechanism in order to close the clamp.
– To close the clamp, pull the operating
lever (2) backwards.
254
56368011531 EN - 06/2019 - 02
