Operation 4
Trailer operation
WARNING
Risk of component damage if the tiller in the tow
coupling is tilted!
The tiller should be kept as horizontal as possible
when towing. This ensures that the rotation range
is sufficient at the top and bottom. The authorised
service centre can adjust the assembly height for
the tow coupling to the tiller height if necessary.
– Make sure that the tiller is level.
– To change the coupling height, contact the
authorised service centre.
NOTE
When manoeuvring in restricted areas, take
into account the projection of the coupling.
Coupling the trailer
NOTE
Tow coupling RO*244 is intended for a tow-bar
eye in accordance with DIN 74054 (bore
diameter 40 mm) or DIN 8454 (bore diameter
35 mm).
– Take measures to prevent the trailer from
rolling away, e.g. using wedges.
– Adjust the tow bar eye of the tiller so that it is
at the centre of the towing jaws.

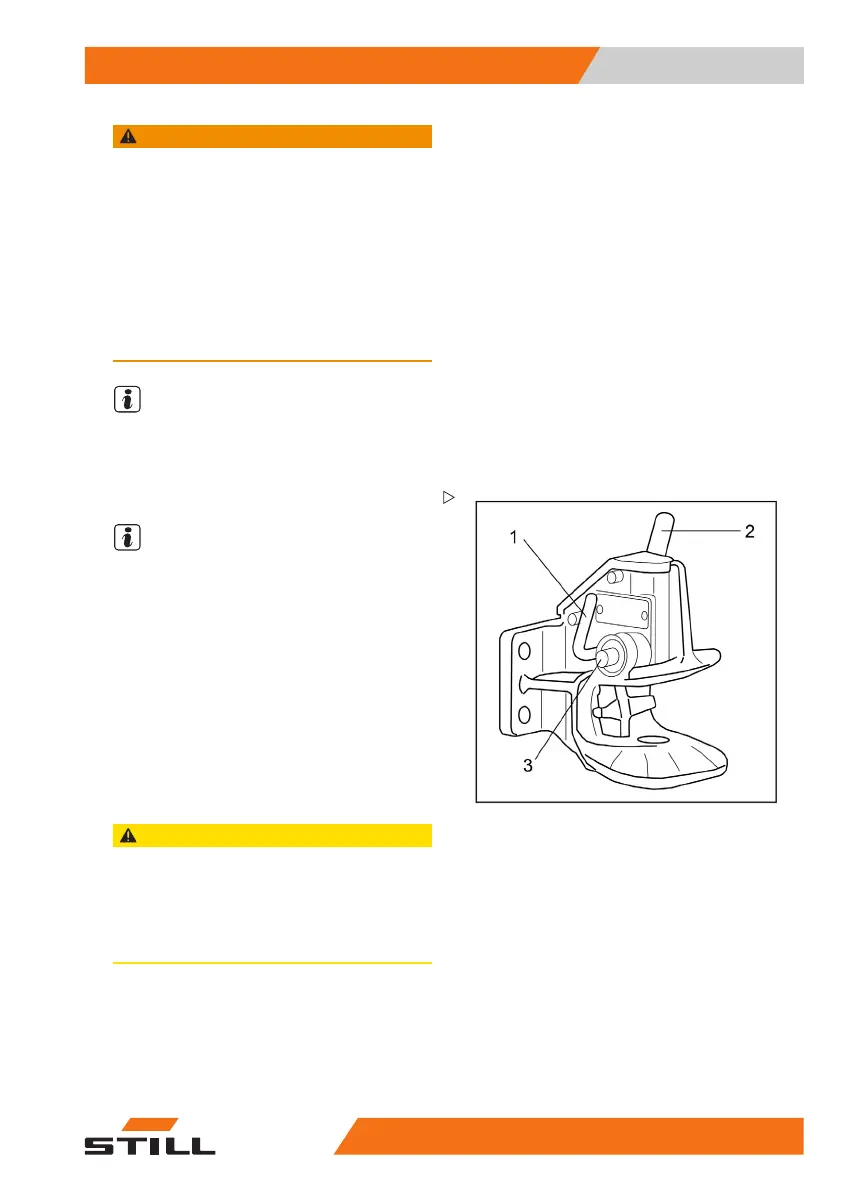

– Push the hand lever (2) upwards until it
snaps into place.
The tow coupling is opened.
CAUTION
When being
coupled, the tow-bar eye must engage
in the midd
le of the coupling jaw. Failure to follow
these inst
ructions could result in damage to the
coupling
jaw or to the tow-bar eye!
– Ensure t
hat the tow-bar eye enters the coupling
jaw ce
ntrally.
–Movethe
truck back slowly until the tow bar
eye is inse
rted centrally into the coupling
jaw of the t
ow coupling and the coupling pin
engages.
563
68011531 EN - 06/2019 - 02 279
