Operation 4
Replacing and transporting the bat
tery
1
3
2
1

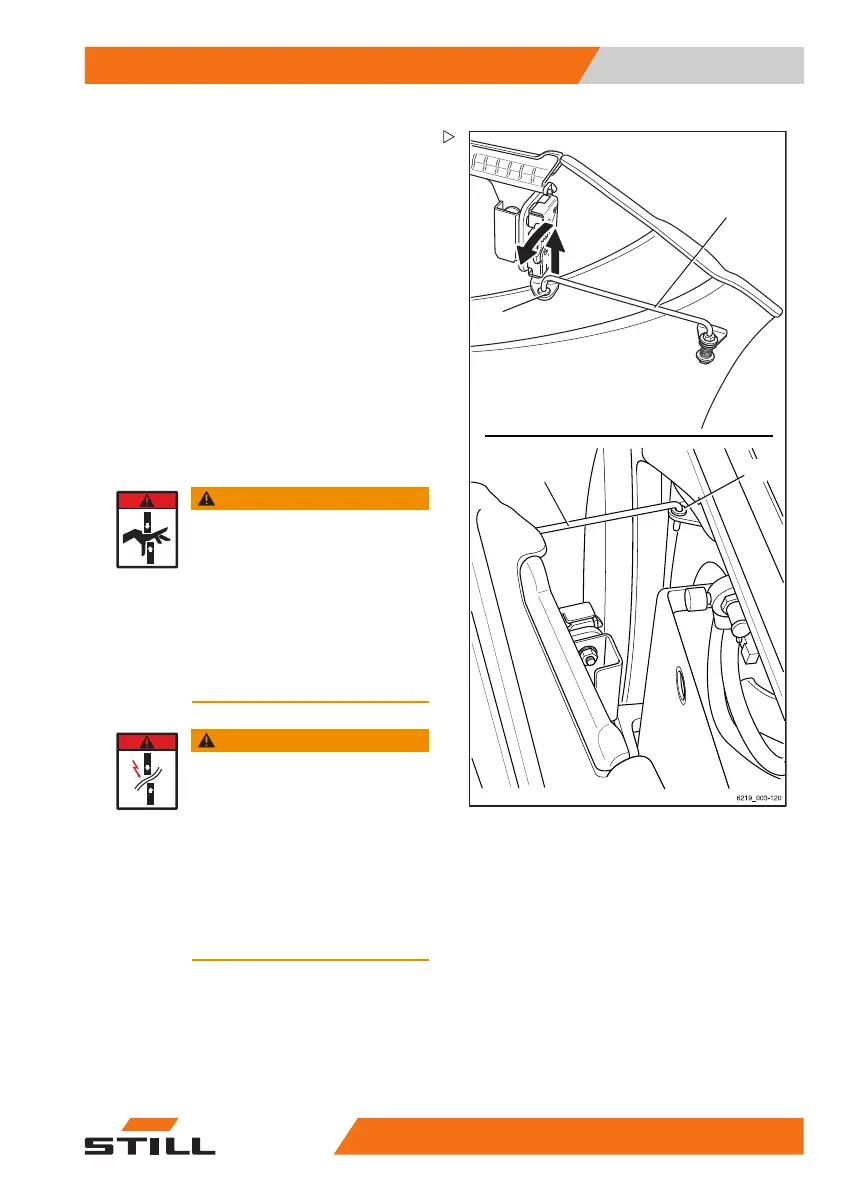

Locking the battery door into a slightly
open position
The battery door can be locked in the open
position using a support bracket.
– Pull the support bracket (1)
up and out of its
support eyelet (2) on the b
attery door.
– Swing the support bracket (1) outwards in
an anticlockwise direction.
– Press down on the support bracket (1) to
clip it into the support eyelet (3) on the truck.
– To close the support brac
ket (1), swing it
back into position and lo
ck it into the support
eyelet (2) on the batter
y door.
Closing the battery do
or
WARNING
When closing the battery door, limbs
could become trapped — risk of
crushing!
When closing the battery door,
nothing should come between the
battery door and the edge of the
chassis.
– Carefully close the battery door.
– Only close the battery door if there
are no parts of the body in the way.
WARNING
When closing the battery door, there
is a risk of trapping the battery cable.
If the cable is crushed or sheared off,
there is a risk of short circuit!
When closing the battery door,
nothing should come between the
battery door and the edge of the
chassis.
– Carefully close the battery door.
– Only close the battery door if the
battery cable is not in the way.
563
68011531 EN - 06/2019 - 02 327
