4 Operation
Replacing and transporting the bat
tery
6219_901-009

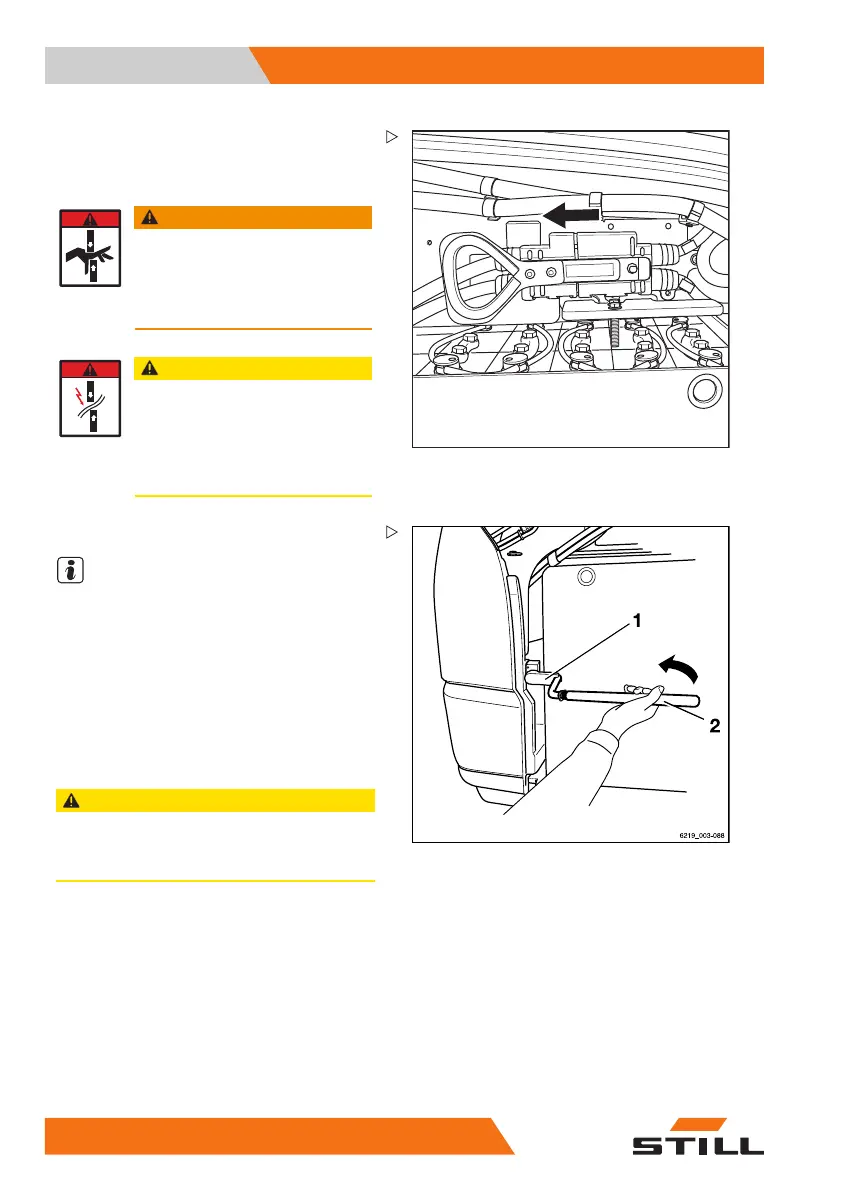

– Disconnect the battery male connector.
– Disconnect the potential equalisation
connection if necessary.
WARNING
Risk of crushing or shearing!
No one must stand directly
next to the
battery or between the bat
tery and the
truck when removing and i
nserting the
battery.
CAUTION
Risk of damage!
– Position the battery cable on the
battery in such a way that the cable
cannot be crushed either when
removing or inserting the battery or
when closing the battery door.
– Open the battery locks (1).
NOTE
If the battery locks cannot be opened by hand,
the coupling pin (2) from the counterweight
canbeusedasaleverextension.
– Carefully drive the truck under the battery.
– Carefully lift the battery until it maintains
a sufficient distance from the seating and
from the chassis above.
– Position the fork arms horizontally.
CAUTION
Damage to the b
attery possible!
– If the battery
knocks against the chassis above,
lower the batte
ry immediately.
– Slowly remove
the battery from the battery
compartment.
330
56368011531 EN - 06/2019 - 02
