Objet30 User Guide 5 Using Objet Studio
DOC-34025 Rev. I 5-35
To display objects as boxes, showing their maximum dimensions
instead of their shape:
➢ From the View menu, select Display Bounding Box.

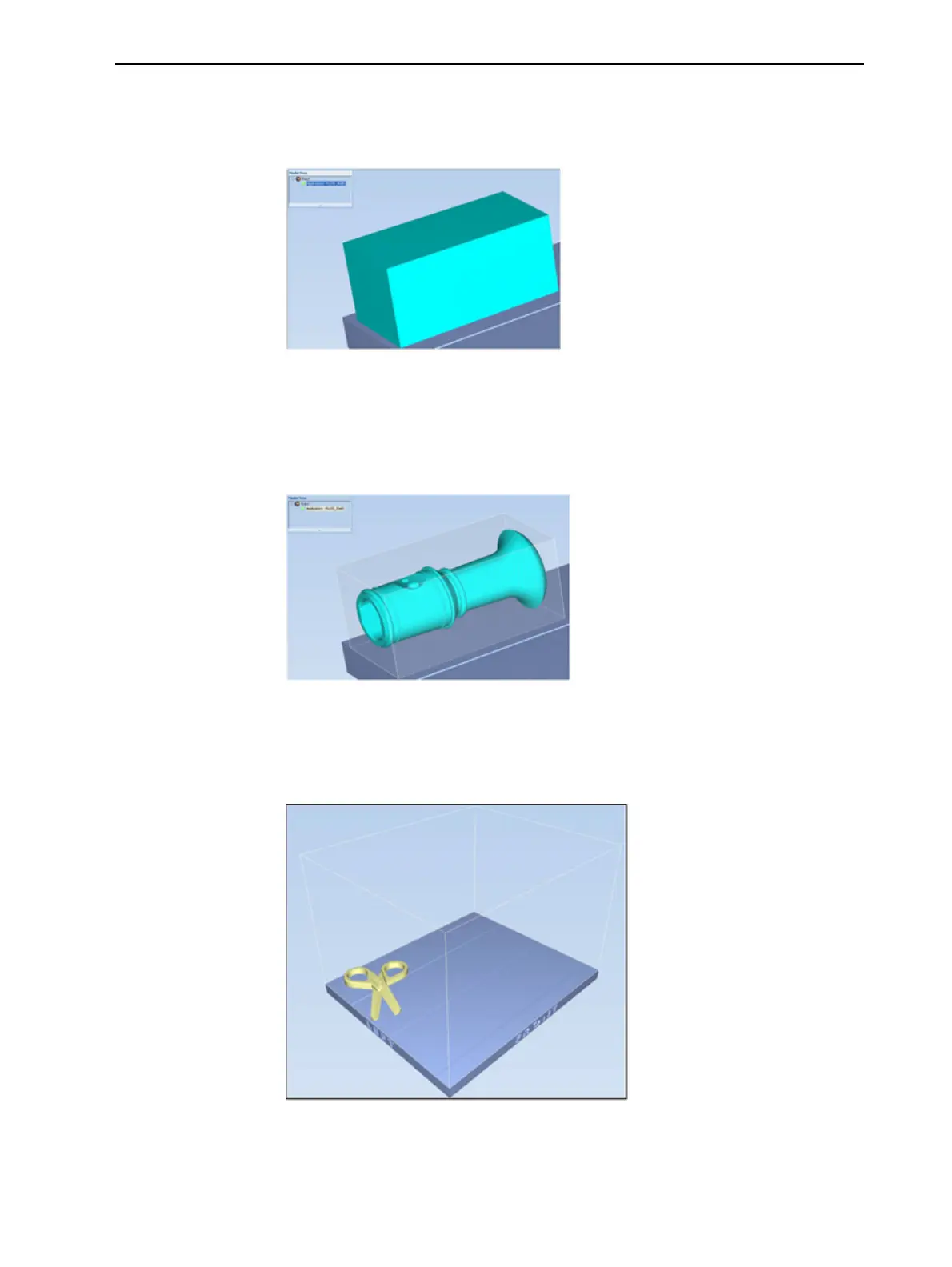

Figure 5-33 Model displayed with bounding box
To display the area around objects needed for support material (to
produce a matte finish):
➢ From the View menu, select Display Thickening Box.
Figure 5-34 Model displayed with thickening box
To display the maximum build height:
➢ From the View menu, select Display Tray 3D Box.
Figure 5-35 Tray 3D Box
