102 Description Of Specific Functions
V560 Series High Performance Closed-Loop Vector Inverter User Manual
modified incorrectly at the current power-on.
This function can only be used when the device is stopped. If this function is activated when the device is
running, the inverter will send alarm aL.059 and give up operation.
F0.0.02 Macro-call parameter
modification password
Setting range: 0~65535 Factory default: 0
For modifying the system macro setting (kilobit) of the macro parameter F0.0.00, the modification password
1580 must be entered. This password will automatically disappear after 30 seconds. The macro parameter
cannot be modified once within 30 seconds upon input of the password. If it is intended to make modification
once again, the password should be entered again.
F0.0.04 LCD display setting (H) Setting range: 0000~0037 Factory default: 0023
This function is only effective for the operating panel equipped with LCD.
_ _ X _: Normal display mode
0: Steady mode
1: Single parameter display
The LCD panel will only display the status parameters set for F0.0.12 in the normal monitoring mode.
2: Dual parameter display
The LCD panel will display the status parameters set for F0.0.12 and F0.0.13 in the normal monitoring mode.
3: Three parameter display
The LCD panel will display the status parameters set for F0.0.12, F0.0.13 and F0.0.14 in the normal
monitoring mode.
F0.0.05 Parameter locking (H) Setting range: 0000~0012 Factory default: 0000
F0.0.06 Parameter locking
password
Setting range: 0~65535 Factory default: 0
After the parameter locking is effective, during modification of the locked parameter, LED panel will display
“---”; LCD panel will prompt “password locked and modification forbidden”. This function is used to forbid
modification of functional parameters by unauthorized personnel.
The password setting will take effect if OK key is pressed down within 30 seconds. If no confirmation (OK key)
is conducted beyond 30 seconds or any other key is pressed down within 30 seconds, the password setting
will be given up. The sketch of locking operation is as below:

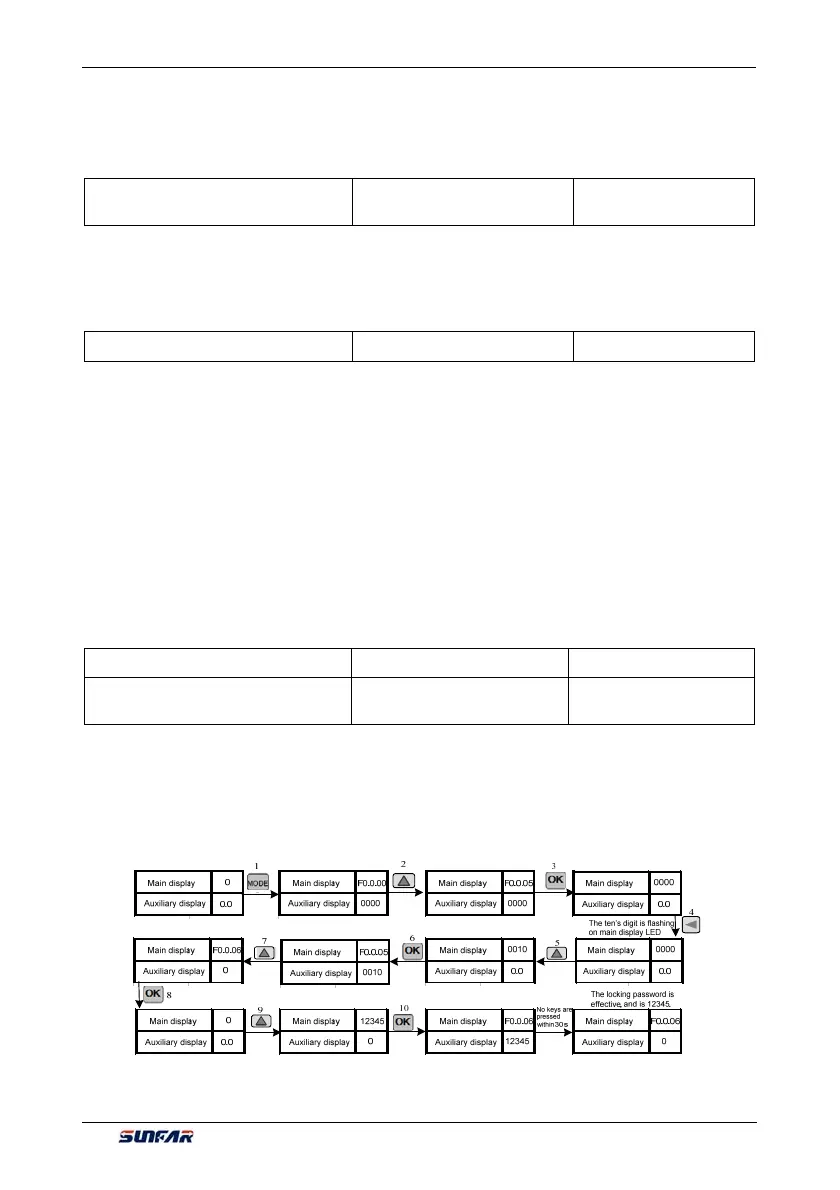

Figure 7-5 Parameter locking flow
To Next Page
