Wiring Of Frequency Inverter 29
V260 Series High Performance Closed-Loop Vector Inverter User Manual

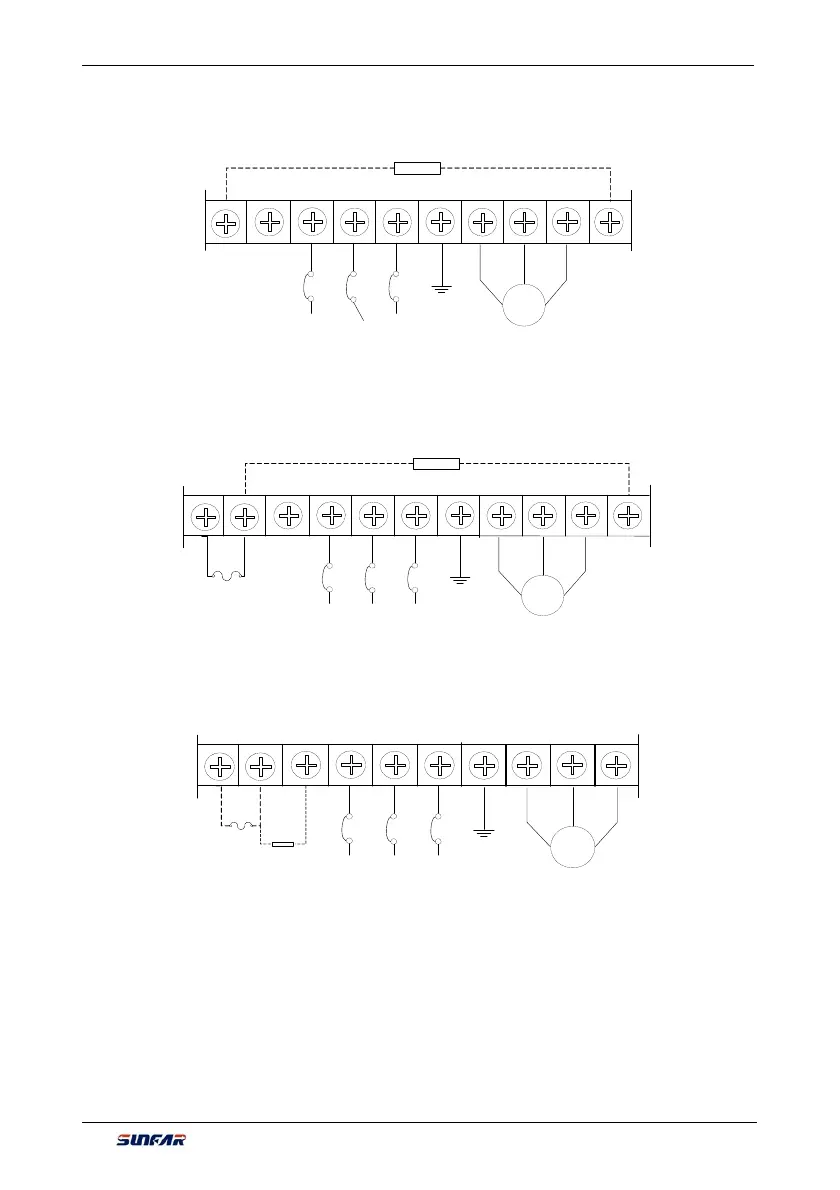

Type III major loop terminal Applicable type: V260-4T0055G/4T0075P ～ V260-4T0110G/4T0150P
R STP- E U V W
PB
Ground
Energy consumption braking resistor
Motor
P+
Three-phase power supply
Type IV major loop terminal Applicable type: V260-4T0150G/4T0185P ～ V260-4T0185G/4T0220P
R STP- E U V W
PB
Ground
Energy consumption braking resistor
Motor
P+
P
DC reactor
Three-phase power supply
Type V major loop terminal Applicable type: V260-4T0220G/4T0300P
R STPB E U V W
Ground
Motor
P+
P
DC reactor
Energy consumption
braking resistor
Three-phase power supply
