Wiring Of Frequency Inverter
V260 Series High Performance Closed-Loop Vector Inverter User Manual
30

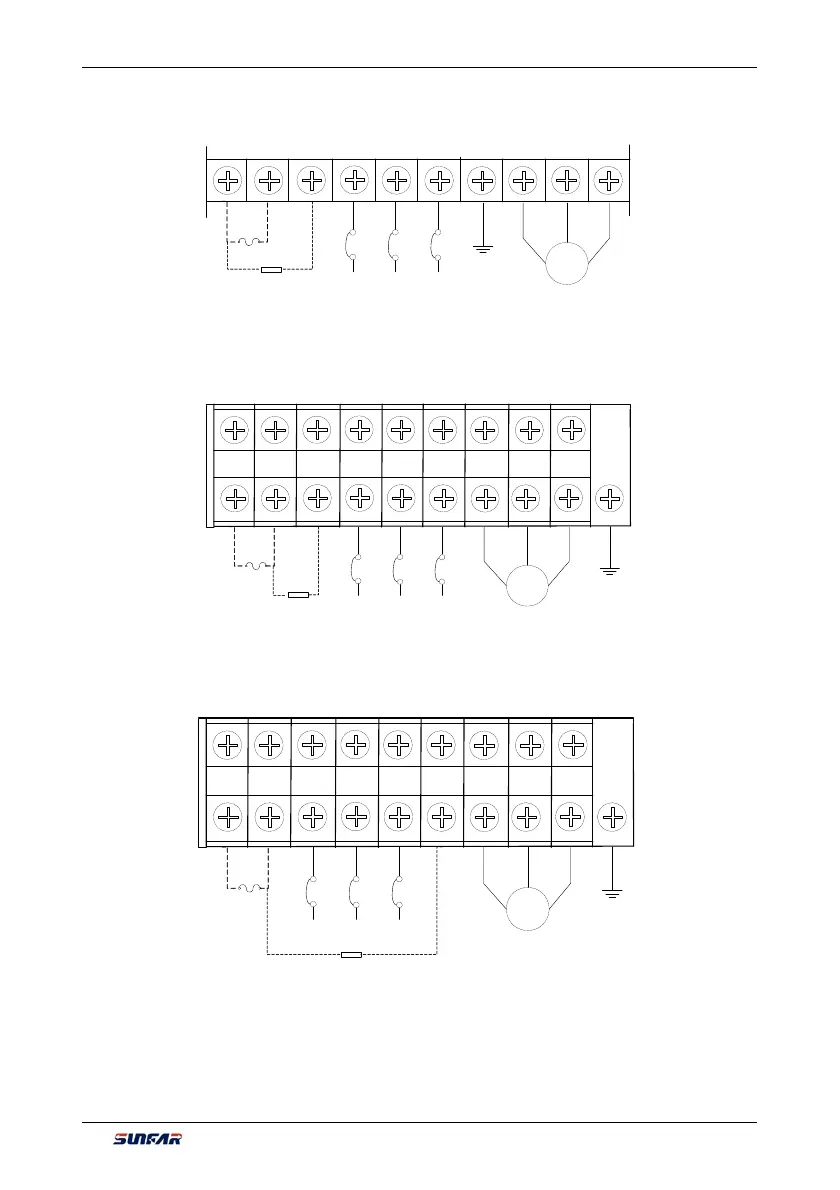

Type VI major loop terminal Applicable type: V260-4T0220G/4T0300P
R STP- E U V W
Ground
Three-phase power supply
Motor
P+
P
DC reactor
Braking unit
Type VII major loop terminal Applicable type: V260-4T0370G/4T0450P ～ V260-4T0450G/4T0550P
R STP-
E
UV
W
Ground
Three-phase power supply
Motor
P+
P
DC reactor
Braking unit
Type VIII major loop terminal Applicable type: V260-4T0550G/4T0750P
R STP-
E
UV
W
Ground
Three-phase power supply
Motor
P+
P
DC reactor
Braking unit
