4 DISPLAY AND CONTROL ELEMENTS
4.22 MHL380 D
SYSTEM DIAGNOSTICS 1 – DIGITAL I/O -
B35 (CR0020)
The current states (HIGH = green, LOW =
grey) of the digital inputs and outputs of the
main control -B35 (CR0020) are displayed in
this menu.
SYSTEM DIAGNOSTICS 1 – DIGITAL I/O -
B68 (CR2016-1/ZE)
The current states (HIGH = green, LOW =
grey) of the digital inputs and outputs of the
first I/O extension -B68 (CR2016-1/ZE) are
displayed in this menu.
SYSTEM DIAGNOSTICS 1 – DIGITAL I/O -
B74 (CR2016-2/ZE)
The current states (HIGH = green, LOW =
grey) of the digital inputs and outputs of the
second I/O extension -B74 (CR2016-2/ZE)
are displayed in this menu.

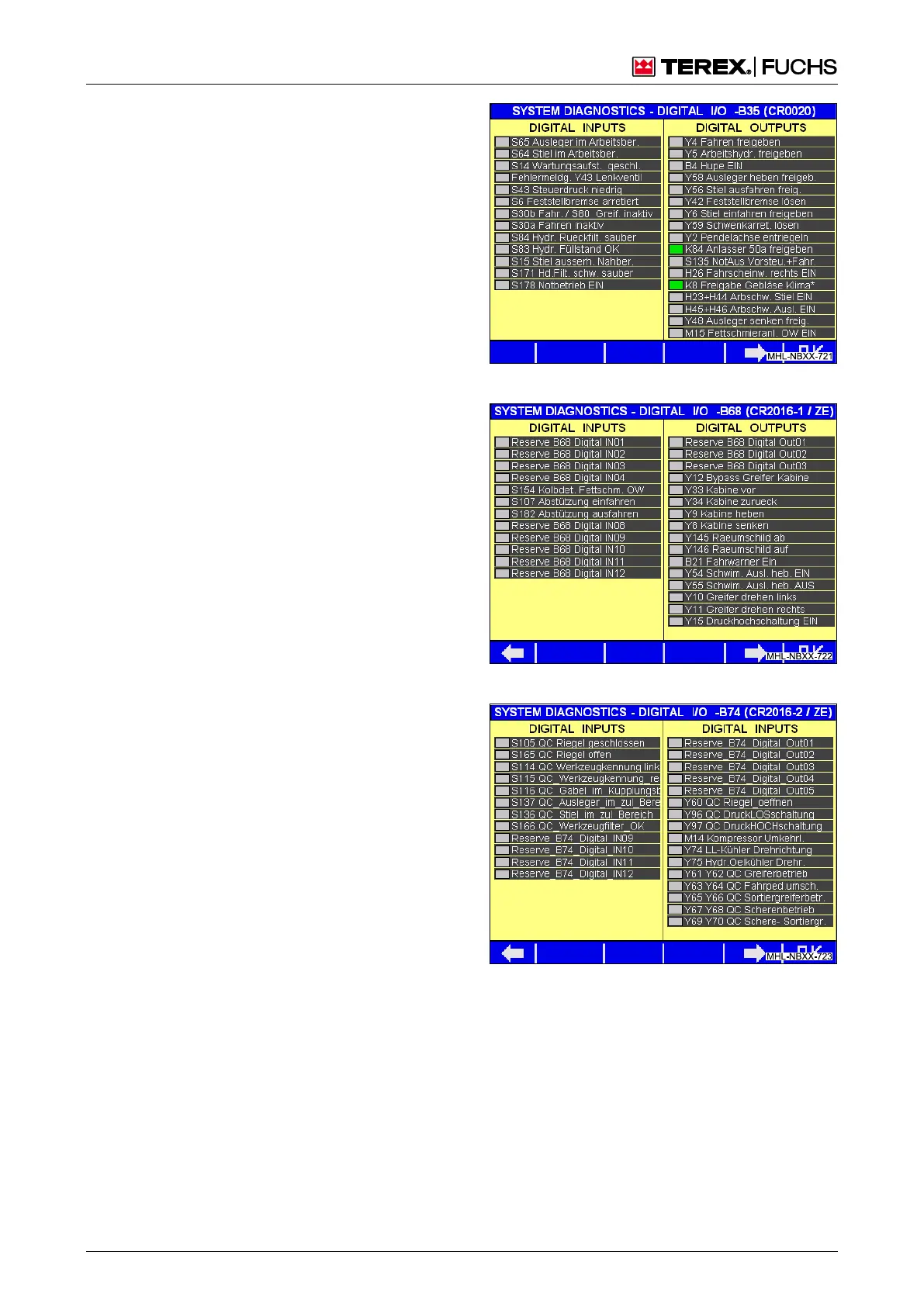

Fig. 46 System diagnostics
Fig. 47 System diagnostics
Fig. 48 System diagnostics
