DISPLAY AND CONTROL ELEMENTS 4
MHL380 D 4.23

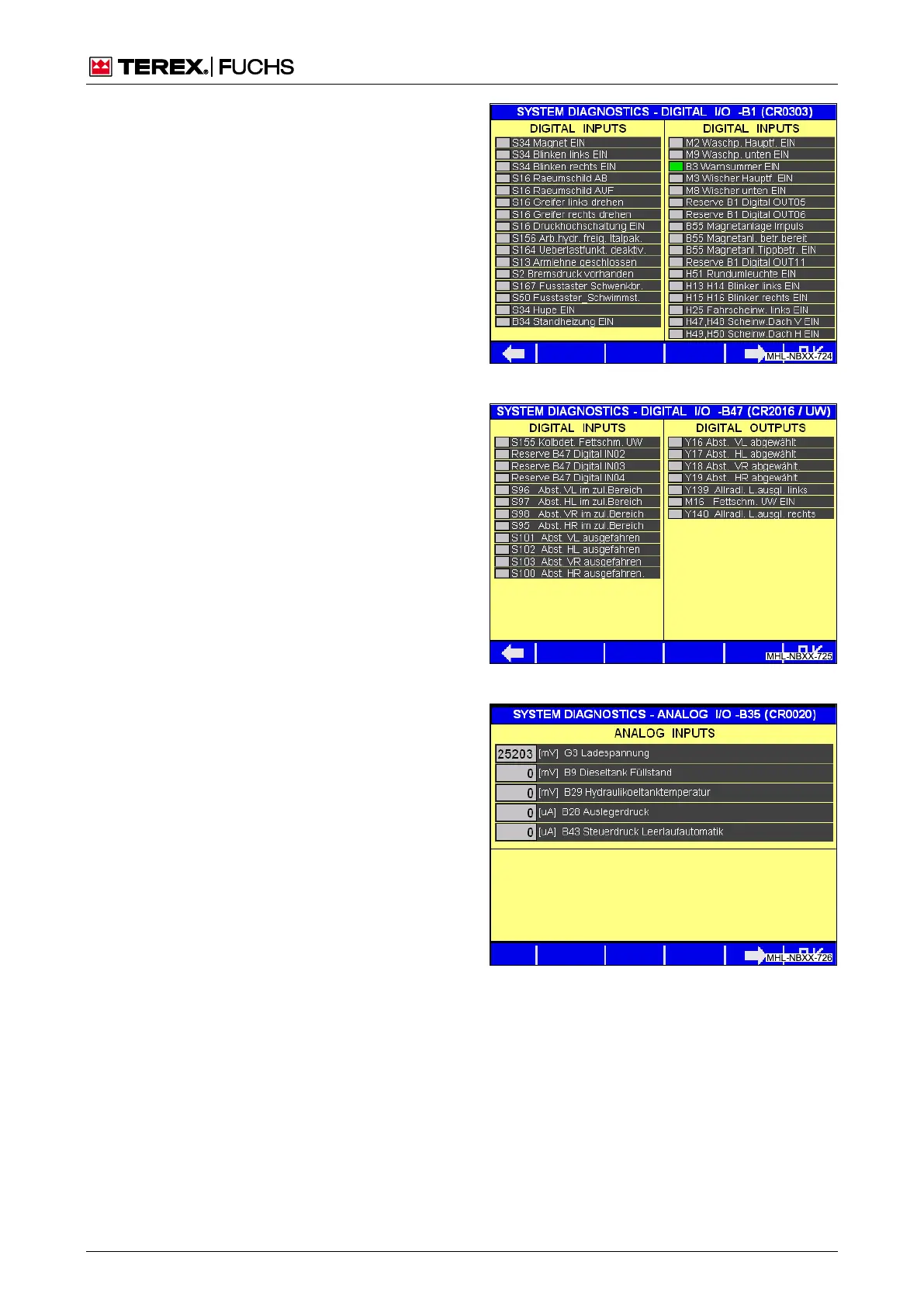

SYSTEM DIAGNOSTICS 1 – DIGITAL I/O -
B1 (CR0303)
The current states (HIGH = green, LOW =
grey) of the digital inputs and outputs of the
cab control -B1 (CR0303) are displayed in
this menu.
SYSTEM DIAGNOSTICS 1 – DIGITAL I/O -
B47 (CR2016/UW)
The current states (HIGH = green, LOW =
grey) of the digital inputs and outputs of the
I/O extension in the undercarriage -B47
(CR2016/UW) are displayed in this menu.
SYSTEM DIAGNOSTICS 2 – ANALOG I/O -
B35 (CR0020)
The current states of the analog inputs and
outputs of the main control -B35 (CR0020)
are displayed in this menu.
Fig. 49 System diagnostics
Fig. 50 System diagnostics
Fig. 51 System diagnostics
