CARE AND MAINTENANCE 7
MHL380 D 7.43
To refuel, proceed as follows:
►
Open the tank cover on the fuel tank (pres-
sure equalization!).
►
Remove the sealing cover (190/1) from the
intake adapter (190/2).
►
Mount the intake hose on the intake adapt-
er (190/2).
►
Introduce the free end of the intake hose
with the filter side into a fuel barrel.
►
Keep the toggle switch (190/3) next to the
tank filling pump in the upper position,
"ON", to pump fuel into the tank of the ma-
chine. The maximum fill level is achieved
when the LED (190/4) lights up red.
ATTENTION
Make certain the fuel level does not
fall below the intake level of the in-
take hose. The pump should not be
allowed to run dry under any cir-
cumstances.
►
Release the toggle switch (190/3) to the
lower "OFF" position. The refueling pump
stops.
►
Uncouple the intake hose and make sure
that there is no fuel in the intake hose be-
fore stowing it away. Seal the intake
adapter (190/2) with the cap (190/1).
ATTENTION
It is essential to use the cap, since
the built-in non-return valve is not
suitable for providing a long-term
seal.
►
Close the tank cover.
340-1680-168
1
4
2
3

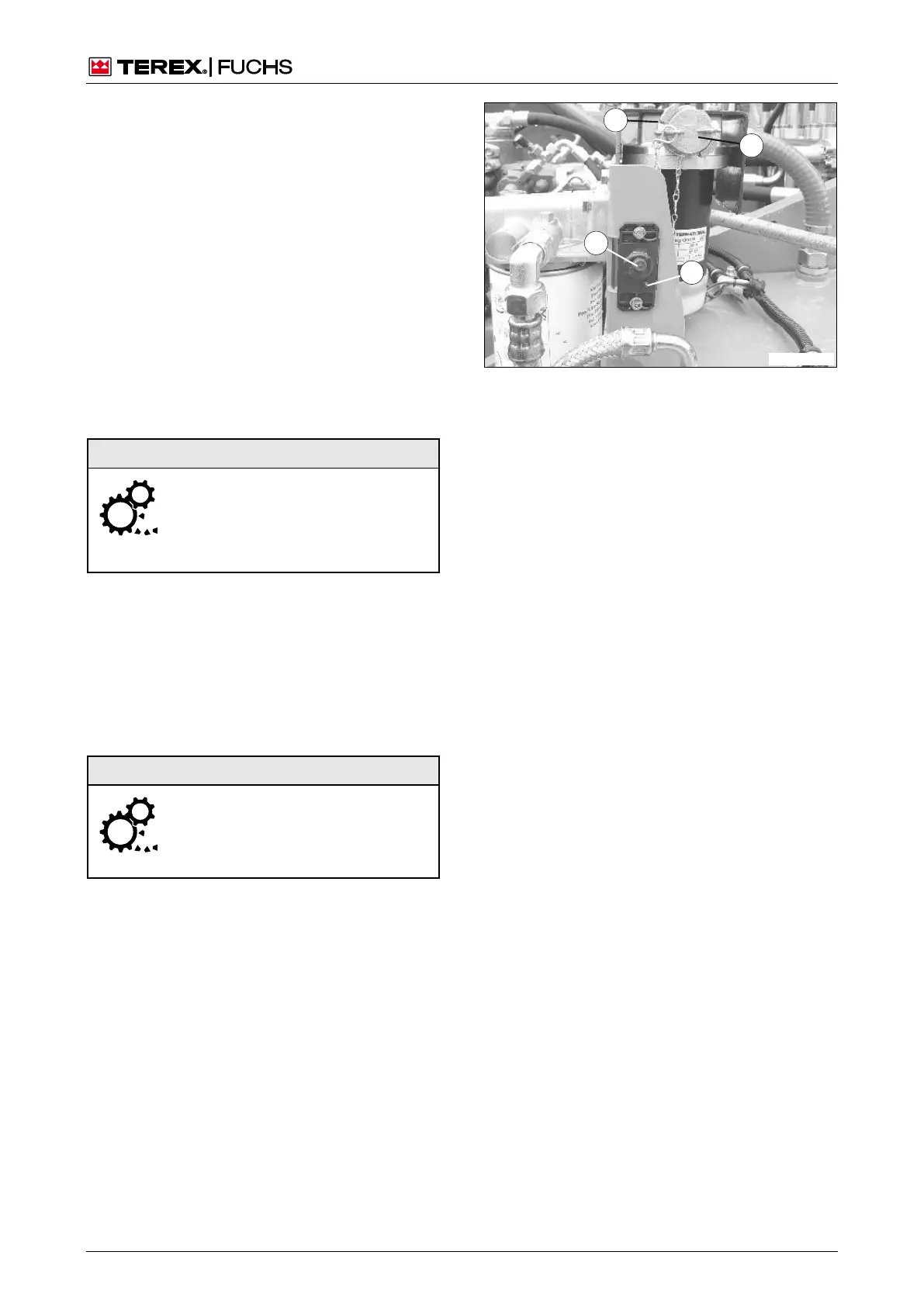

Fig. 190 Tank filling pump
