CHAPTER 5 TPCL MODE (INTERFACE COMMANDS)
B-EP Series
5-16

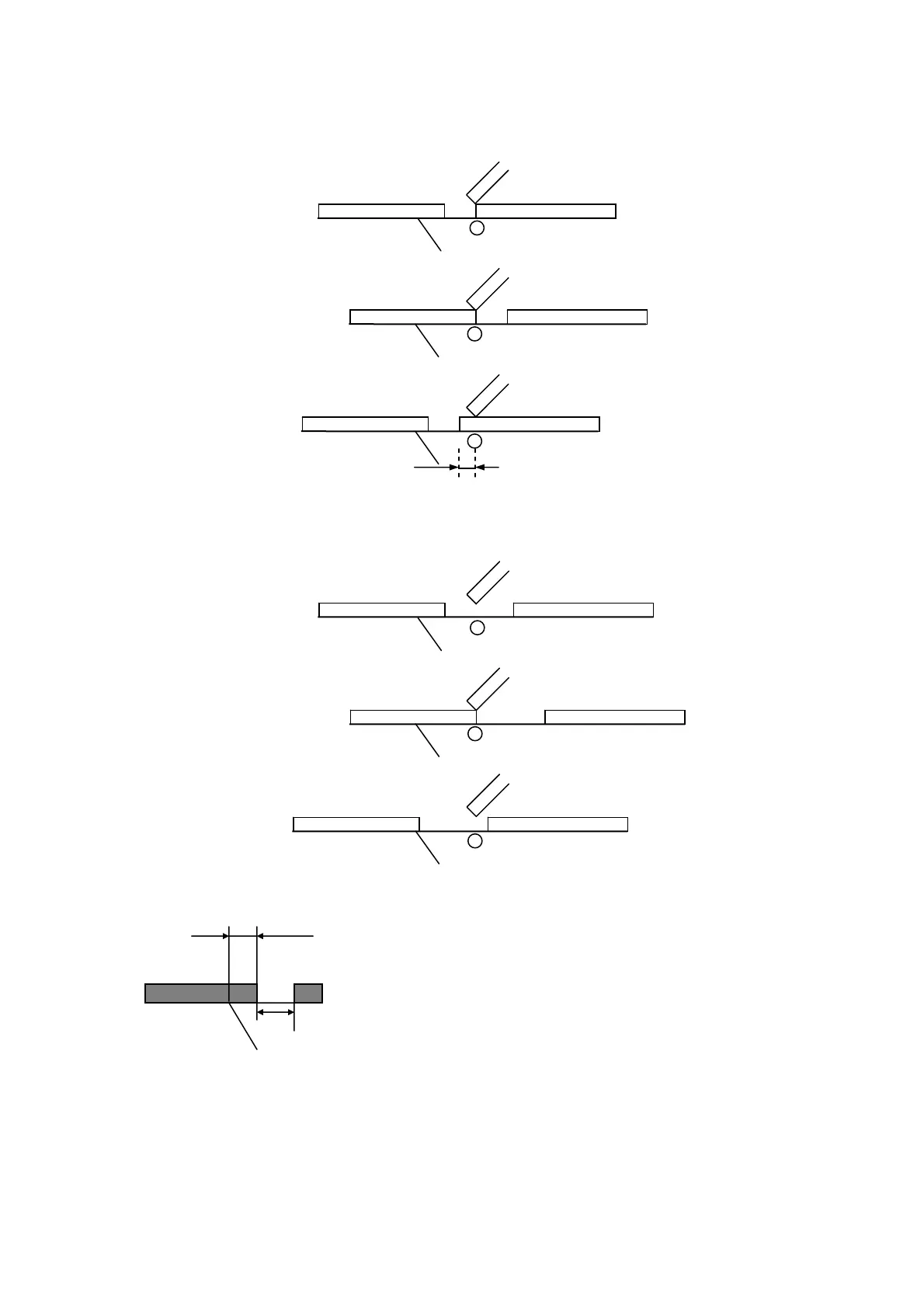

[Strip position fine adjustment]
When the label-to-label gap is 3 mm,
When the label-to-label gap is 7 mm,
• In strip issue mode, a label is stopped at the position
where the distance between the leading edge of the strip
shaft and the trailing edge of the label is 2.35 mm,
regardless of the label-to-label gap.
However, only when the fine adjustment value for print
position is not selected (up to V1.0C).
• When the stop position is not proper, it should be adjusted
using the strip position fine adjustment function.
2.35 mm
3 mm to 7mm
± 0.0 mm
- 2.0 mm
+ 3.0 mm
* Refer to Notes (7).
± 0.0 mm
- 2.0 mm
+ 3.0 mm
To Next Page
