CHAPTER 6 LABEL MODE (INTERFACE COMMANDS)
B-EP Series
6-65
6.8 COMMANDS RELATED TO WRITABLE CHARACTERS
6.8.1 WRITABLE CHARACTER DATA STORE COMMAND [ESC] XD
Function Stores writable characters and logos into flash memory.
Format [ESC] XD; aa, bbb --- bbb [LF] [NUL]
Term aa: Writable character code
FF40H to FF71H
bbb---bbb: Writable character data (Fixed at 72 bytes)
Explanation
1
00H
2
60H
3
00H
4
00H
5
70H
6
00H
67
EFH
68
80H
69
00H
70
3EH
71
00H
72
00H

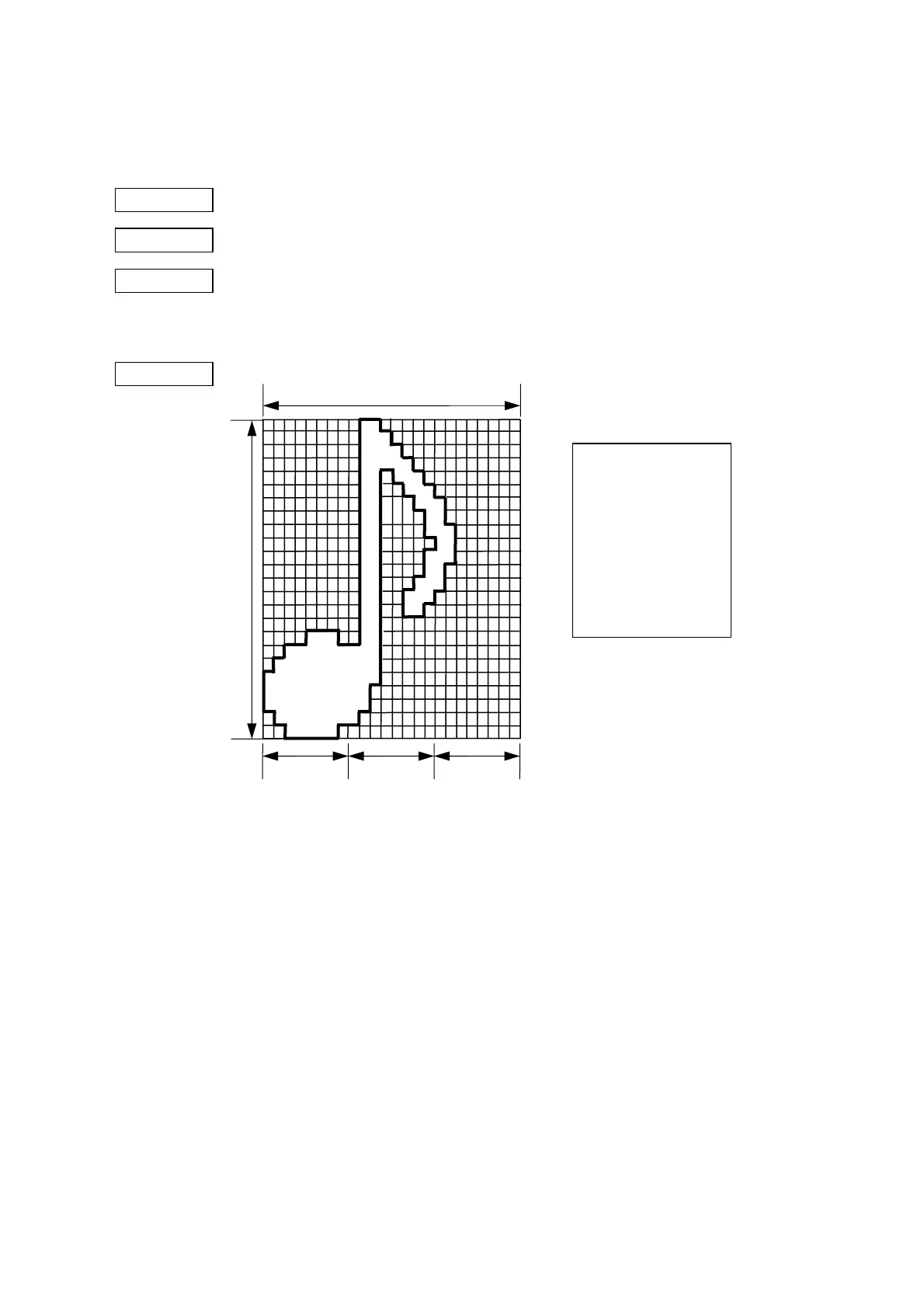

(1) The writable character data should be separated into units of 8 dots and sent in the
above order (1
to 72).
(2) The writable character data is 00H to FFH.
(3) The number of dots of a writable character width and a writable character height
are fixed at 24 dots. Dots with no data are transmitted as data 0. 72-byte data
should be sent.
(4) Max. 50 types of writable character data can be stored. The writable character
data is backed up in memory (even if the power is turned off).
(5) Writable character data is assigned from FF40H to FF71H. Therefore, to read the
code, the code (2 bytes) which was stored by this command should be designated.
(6) A new writable character can be stored in codes which have been stored in an
already existing code.
8 dots8 dots 8 dots
Graphic width 24 dots
Graphic
height
24 dots
