CHAPTER 6 LABEL MODE (INTERFACE COMMANDS)
B-EP Series
6-67
6.9 COMMANDS RELATED TO GRAPHICS
6.9.1 GRAPHIC DATA STORE COMMAND [ESC] SG
Function Stores the graphic data on the printer.
Format [ESC] SG ; a, bbbb, cccc, ddd --- ddd [LF] [NUL]
Term a: Graphic No.
1 to 2
bbbb: No. of graphic width dots to be stored
0001 to 1248 (in units of dots)
Max. No. of width dots
B-EP2DL-GHxx 384
B-EP4DL-GHxx 832
cccc: No. of graphic height dots to be stored
0001 to 9999 (in units of dots)
ddd --- ddd: Graphic data

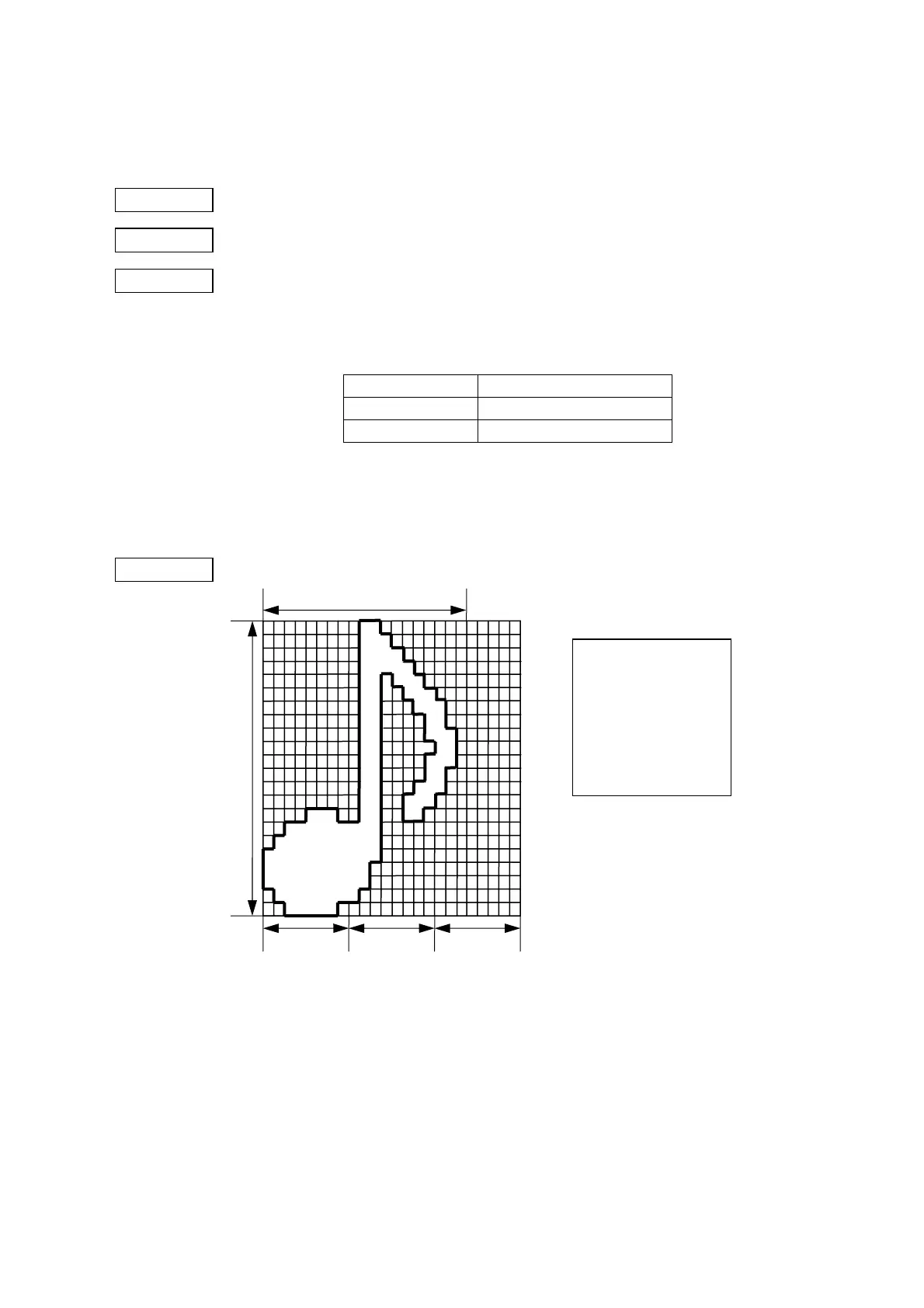

Explanation
1
00H
2
60H
3
00H
4
00H
5
70H
6
00H
•
•
•
•
67
EFH
68
80H
69
00H
70
3EH
71
00H
72
00H
(1) The graphic data should be separated into units of 8 dots and sent in the above
order (1 to 72).
(2) The graphic data is 00H to FFH.
(3) The minimum unit of a graphic width is 8 dots. Dots with no data are transmitted
as data 0.
88 8
Graphic width 19 dots
Graphic
height
22 dots
To Next Page
