CHAPTER 8 ESC/POS MODE (INTERFACE COMMANDS)
B-EP Series
8-6
8.8 EXAMPLE OF RECEIPT PRINTER PRINT LAYOUT (B-EP2DL)
Note 1) A minimum margin of 2 mm must be reserved at the top and bottom of a receipt.
Note 2) If printing starts from a stand-by position (or motor stop position) after a logo is printed, a
blank must be inserted for a minimum of 24 pulses (3.0 mm) (or 48 pulses (6.0 mm) or
over recommended). (This is because of reserving a slow-up area. The number of
slow-up pulses varies depending on the print speed.)
Note 3) A logo must be printed within the range of 21 mm at maximum.
Note 4) After a logo is printed, a blank must be inserted for a minimum of 24 pulses (3.0 mm) (or
48 pulses (6.0 mm) recommended).

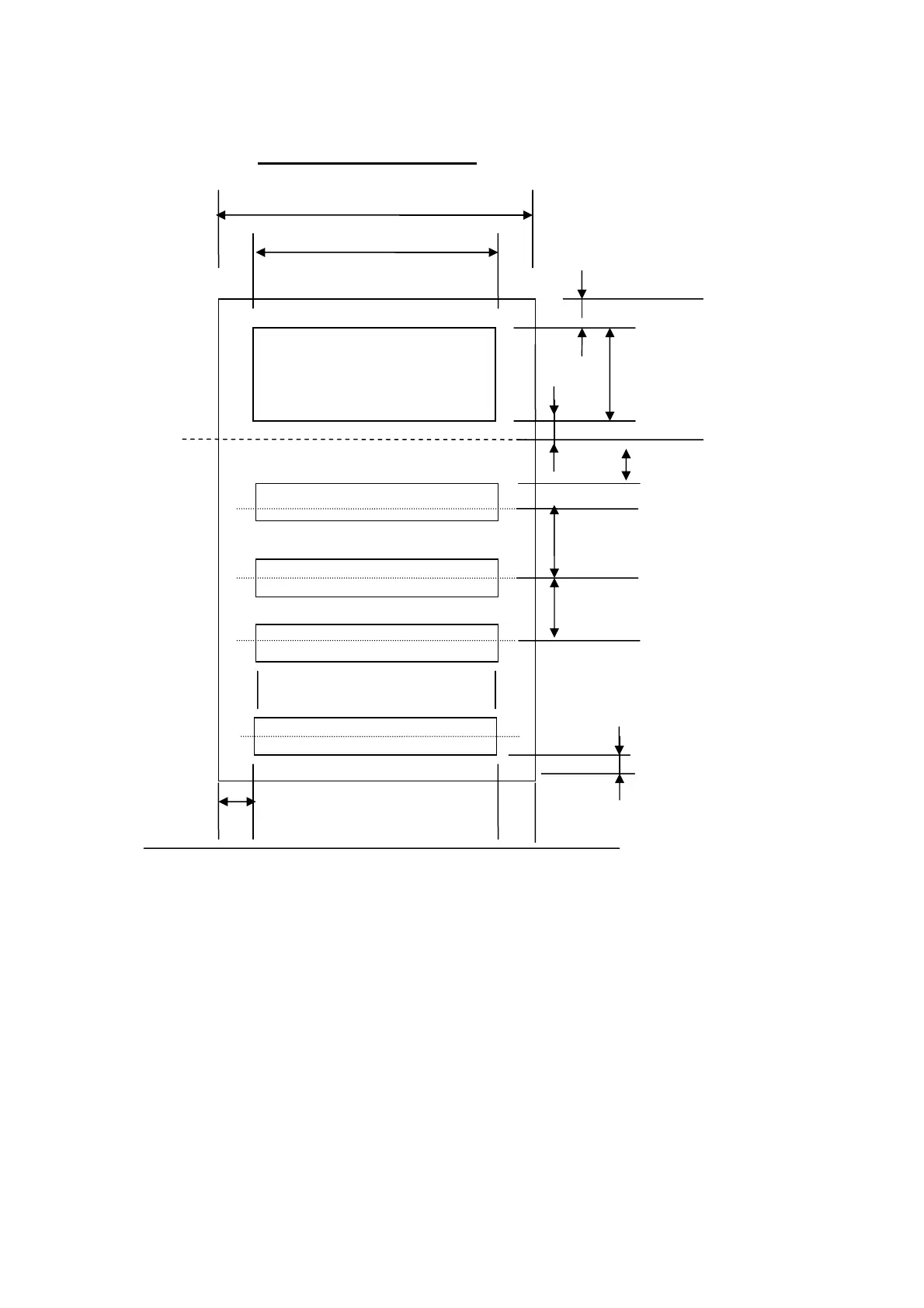

Receipt print position (unit: mm)
58
48
Printable range 384 dots
Note 1
Logo printed
3.75
3.75
3±1.5
(4±1.5)
Note 3
Note 4
Note 2
Note 1
