6.9.2 GRAPHIC FIELD COMMAND [ESC] N
Function Sets how the graphic data is to be printed on the label.
Format [ESC] N; a, bbbb, cccc [LF] [NUL]
Term a: Graphic No. to be invoked and drawn
1 to 2
bbbb: Print origin of X-coordinate of graphic data
Fixed at 4 digits (in 0.1 mm units)
cccc: Print origin of Y-coordinate of graphic data
Fixed at 4 digits (in 0.1 mm units)
Explanation (1) If the Graphic Field Command is stored in a form, like the Bit Map Font Field
Command, the Outline Font Field Command, or the Barcode/Two-dimensional
Code Format Command, the graphic data is automatically drawn, when the stored
form is invoked by the Data Print Command.
(2) When no graphic data has been stored, the printer does not print any graphics
even if a graphic data number is specified by the Graphic Field Command.

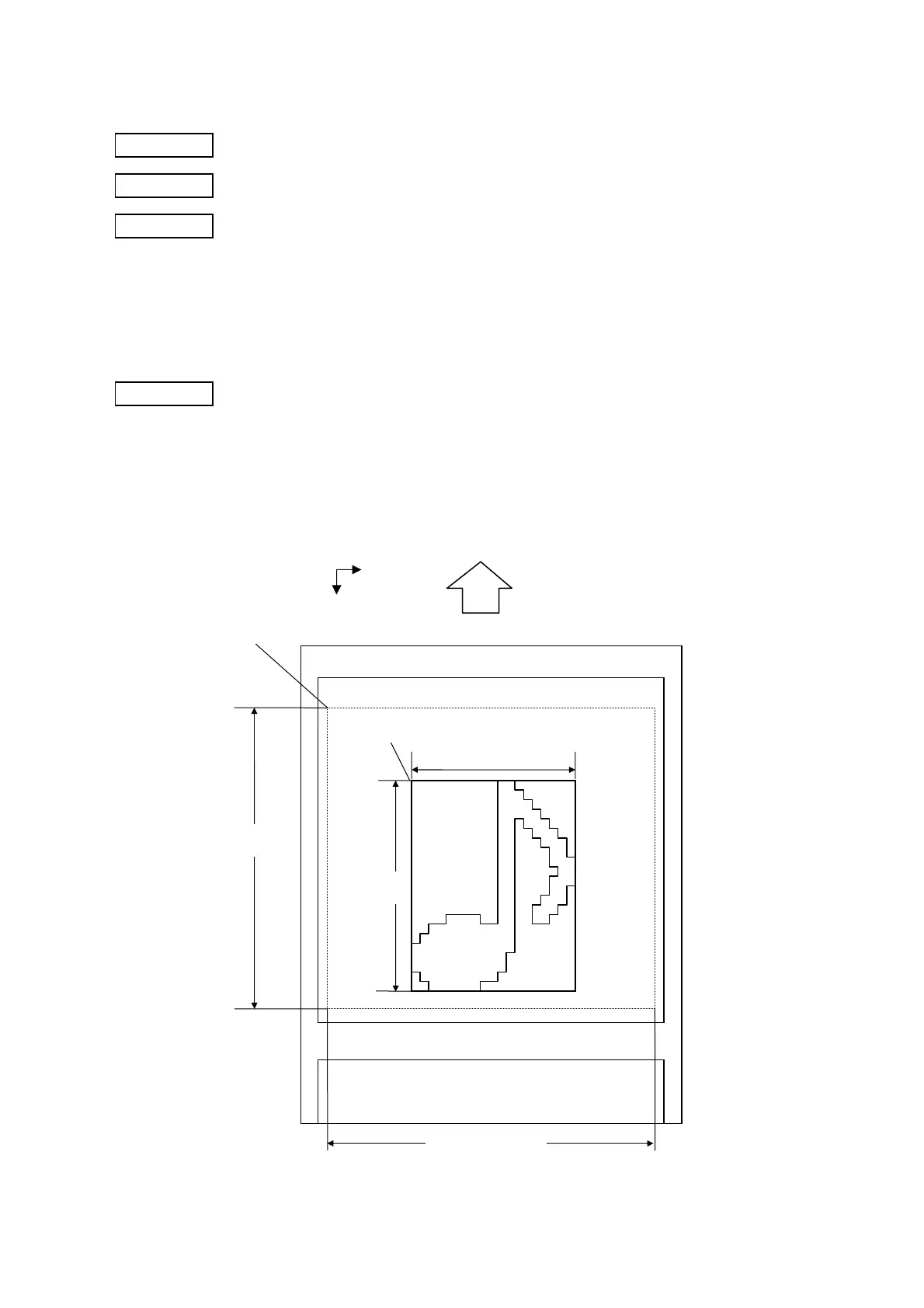

Paper feed direction
Y
0
X
Origin of coordinates
(0, 0)
Effective
print length
Print origin of
coordinates
Effective print width
Height of
the graphic
Width of the graphic
