CHAPTER 6 LABEL MODE (INTERFACE COMMANDS)
B-EP Series
6-68
(4) The number of bytes of the graphic to be transmitted must be as follows;
The number of bytes of the graphic to be transmitted (Max. 64 KB)
= {(No. of graphic width dots + 7)/8} × No. of graphic height dots
* The value in the brackets is rounded down to the nearest whole number.
Example
[ESC] SG; 1, 0019, 0024,
[00H] [60H] [00H] [00H] [70H] [00H] [00H] [78H] [00H]
[00H] [7CH] [00H] [00H] [6EH] [00H] [00H] [67H] [00H]
[00H] [63H] [80H] [00H] [61H] [80H] [00H] [61H] [C0H]
[00H] [60H] [C0H] [00H] [61H] [C0H] [00H] [61H] [80H]
[00H] [63H] [80H] [00H] [67H] [C0H] [00H] [66H] [00H]
[0FH] [60H] [00H] [0EH] [60H] [00H] [3FH] [E0H] [00H]
[7FH] [FEH] [00H] [FFH] [E0H] [00H] [FFH] [C0H] [00H]
[FFH] [C0H] [00H] [EFH] [80H] [00H] [3EH] [00H] [00H]
[LF] [NUL]

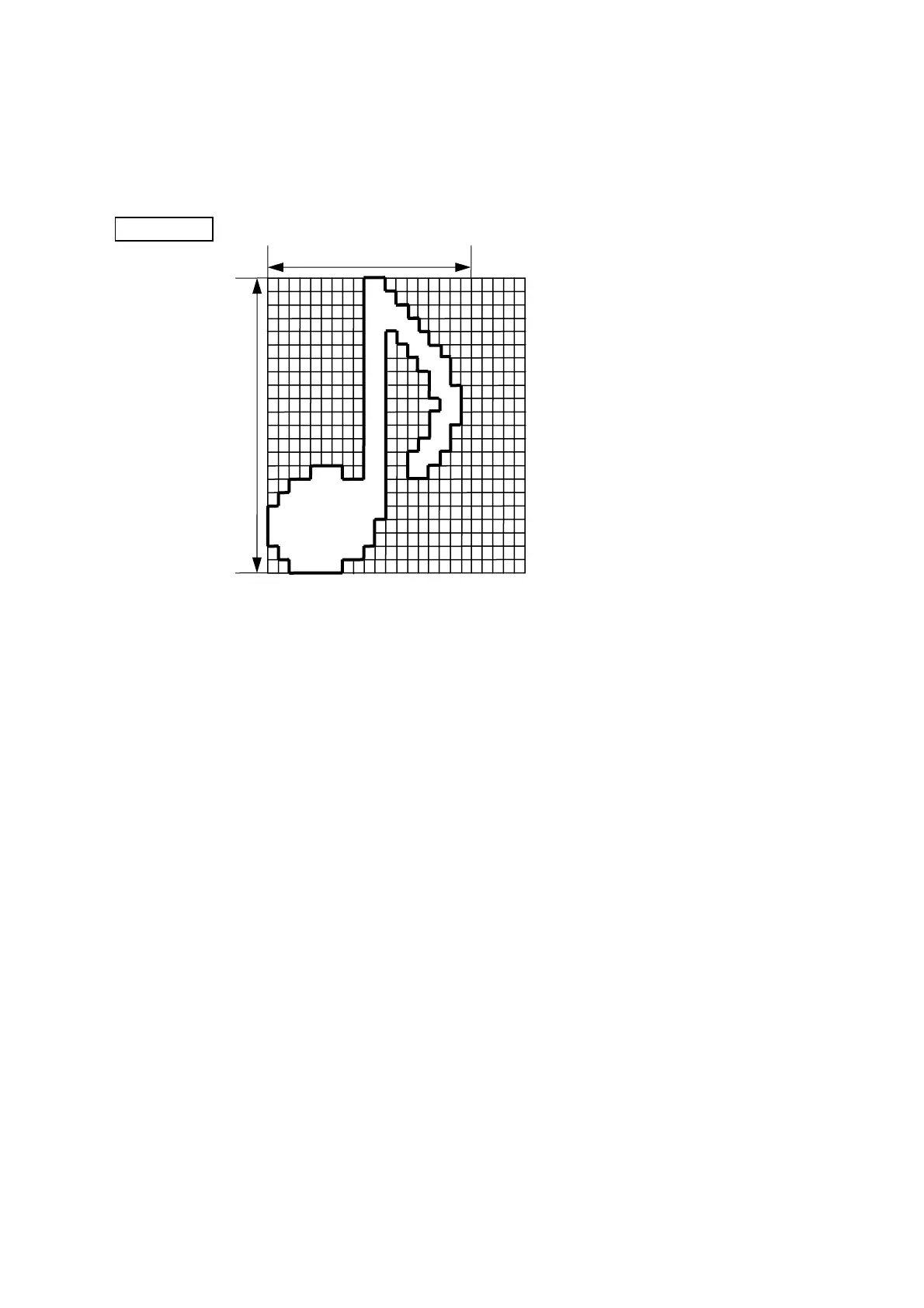

Graphic width 19 dots
Graphic
height
22 dots
To Next Page
