CHAPTER 5 TPCL MODE (INTERFACE COMMANDS)
B-EP Series
5-30

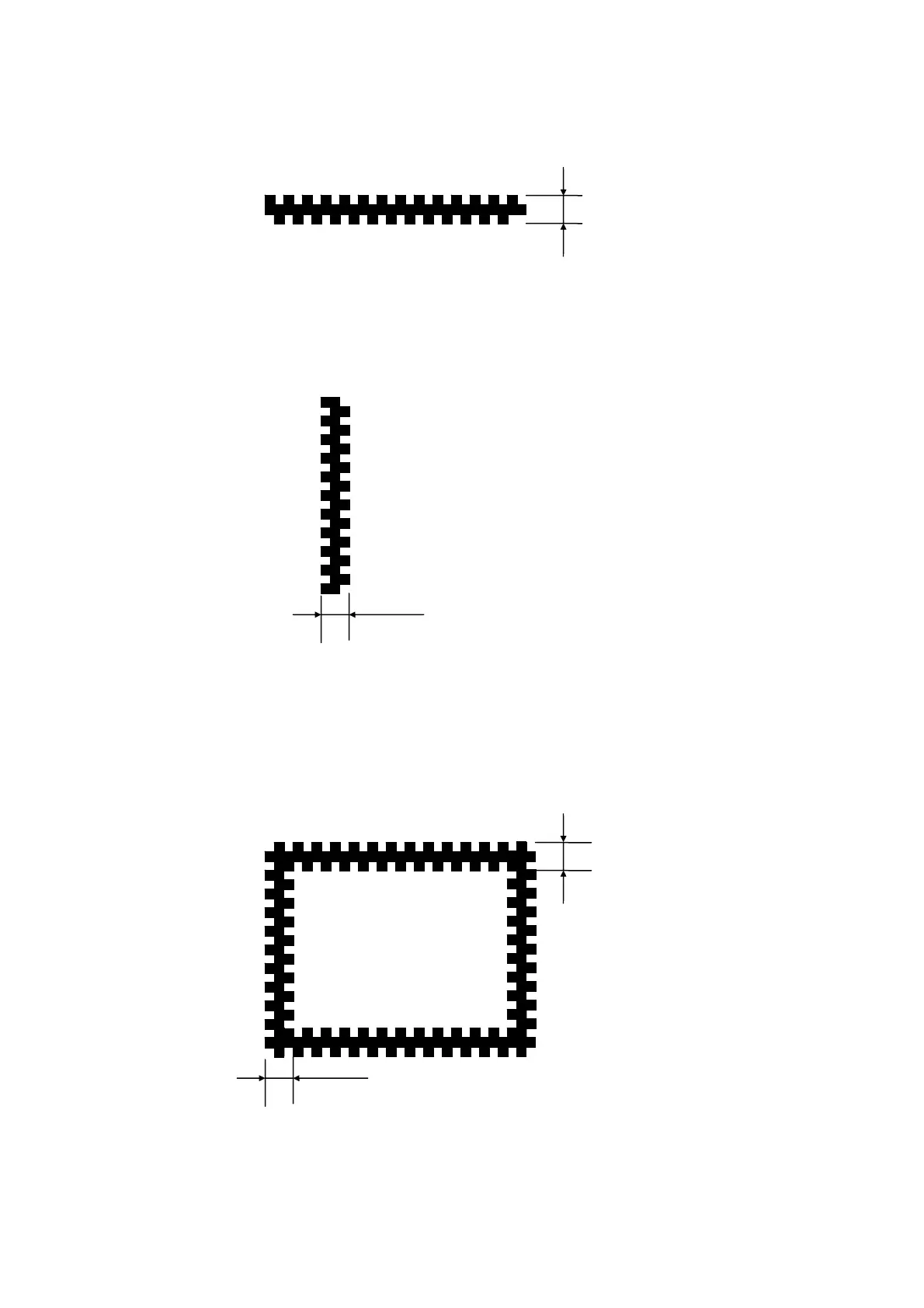

[Line with some dots skipped]
(1) Horizontal line
Dots are skipped at the top and bottom areas only, which means that the thicker the
line width is, the thicker the middle area of the line is.
(2) Vertical line
Dots are skipped at the leftmost and rightmost areas only, which means that the
thicker the line width is, the thicker the middle area of the line is.
[Rectangle]
(1) Radius of rounded corners = 000, or parameter is omitted
Dots are skipped at the top, bottom, leftmost and rightmost areas only, which means
that the thicker the line width is, the thicker the middle area of the line is.
Line width + 1 dot
(X
1
,Y
1
)
(X
2
,Y
2
)
Line width + 1 dot
Line width + 1 dot
(X
1
,Y
1
)
(X
2
,Y
2
)
(X
1
,Y
1
)
(X
2
,Y
2
)
Line width + 1 dot
To Next Page
