CHAPTER 5 TPCL-LE MODE (INTERFACE COMMANDS)
B-EP Series
5-80
Notes
(1) The check digit attachment, increment/decrement and zero suppression are performed
according to the following priority. If any of the conditions is improper, no drawing will
take place.
For example, the zero(s) is replaced with a space(s) as a result of zero suppression, but
the modulus 10 designated to be attached cannot be calculated.
Increment/decrement > zero suppression > attachment of check digit
(2) Up to 32 fields for which increment/decrement has been designated can be drawn. If the
total of bit map font, outline font and barcode increment/decrement fields exceeds 32,
drawing will take place without incrementing/decrementing any excessive field. The field
to be incremented or decremented is incremented or decremented until the Image Buffer
Clear Command ([ESC] C) is transmitted.

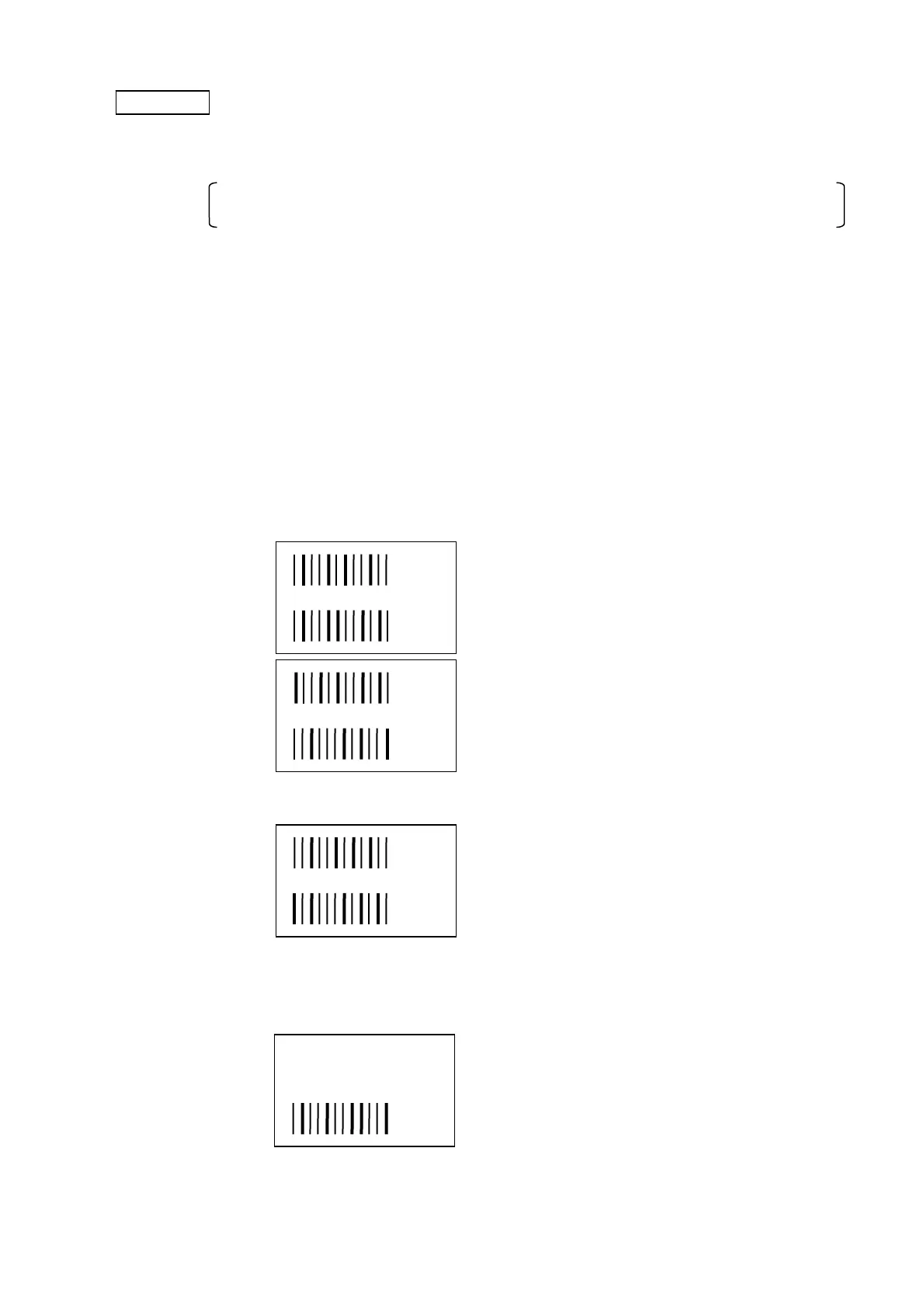

[Example]
1) Format Command (Incrementing barcode No. 01 (+1))
2) Format Command (Incrementing barcode No. 02 (+2))
3) Image Buffer Clear Command
4) Data Command (Barcode No. 01 “0001”)
5) Data Command (Barcode No. 02 “0100”)
6) Issue Command (2 labels)
7) Issue Command (1 label)
8) Image Buffer Clear Command
9) Data Command (Barcode No. 02 “3000”)
10) Issue Command (1 label)
(0100)
(0001)
(0102)
(0002)
(0104)
(0003)
(3000)
