Toshiba B-EP4DL-GH32-QM-R Interface Specification

CHAPTER 5 TPCL-LE MODE (INTERFACE COMMANDS)
B-EP Series
5-94
sss ------ sss: Data string to be printed (Omissible)
Max. 126 digits.
However, the number of digits varies according to the type of barcode.
tt
1
, tt
2
, tt
3
, ------. tt
20
: Link field No. (Omissible)
01 to 99 (1 to 99 can also be used.)
Up to 20 fields can be designated using commas.
Explanation
(1) Barcode number
When drawing by the Data Command ([ESC] RB), the format designated by the barcode
is selected.
(2) Print origin of coordinates

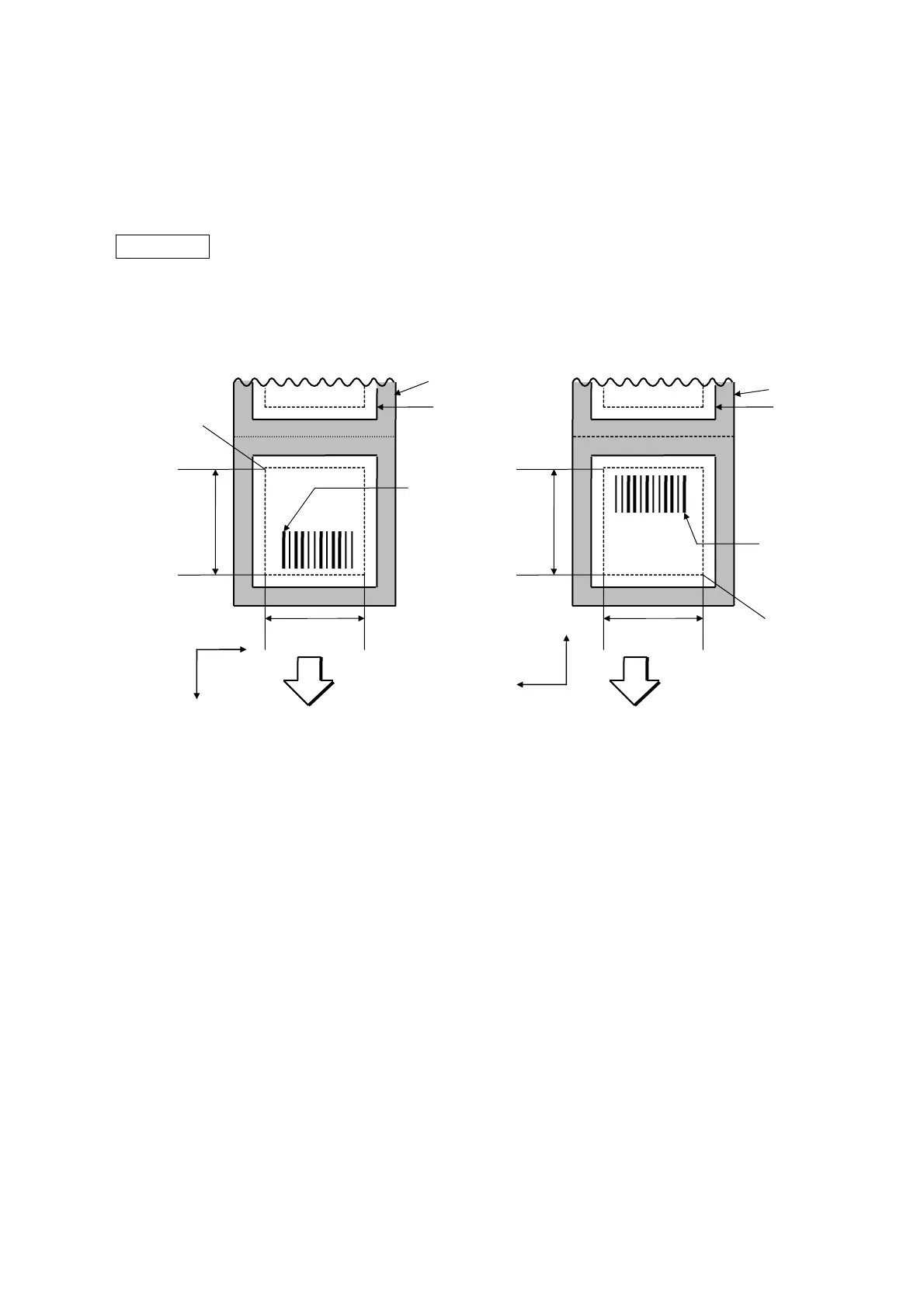

[Printing direction: Bottom first] [Printing direction: Top first]
The print origin of coordinates must be set so that the barcode drawing result will be
within the effective print area set by the Label Size Set Command ([ESC] D).
Label
Paper feed direction
0
X
Y
Effective
print
length
Origin of
coordinates
(0, 0)
Effective
print width
Print origin of
coordinates
Backing paper
Backing paper
Paper feed direction
0
X
Y
Label
Effective
print
length
Origin of
coordinates
(0, 0)
Effective
print width
Print origin of
coordinates
