CHAPTER 5 TPCL-LE MODE (INTERFACE COMMANDS)
B-EP Series
5-121
Explanation
(1) Two-dimensional code number
When drawing by the Data Command ([ESC] RB), the format designated by the two-
dimensional code number is selected.

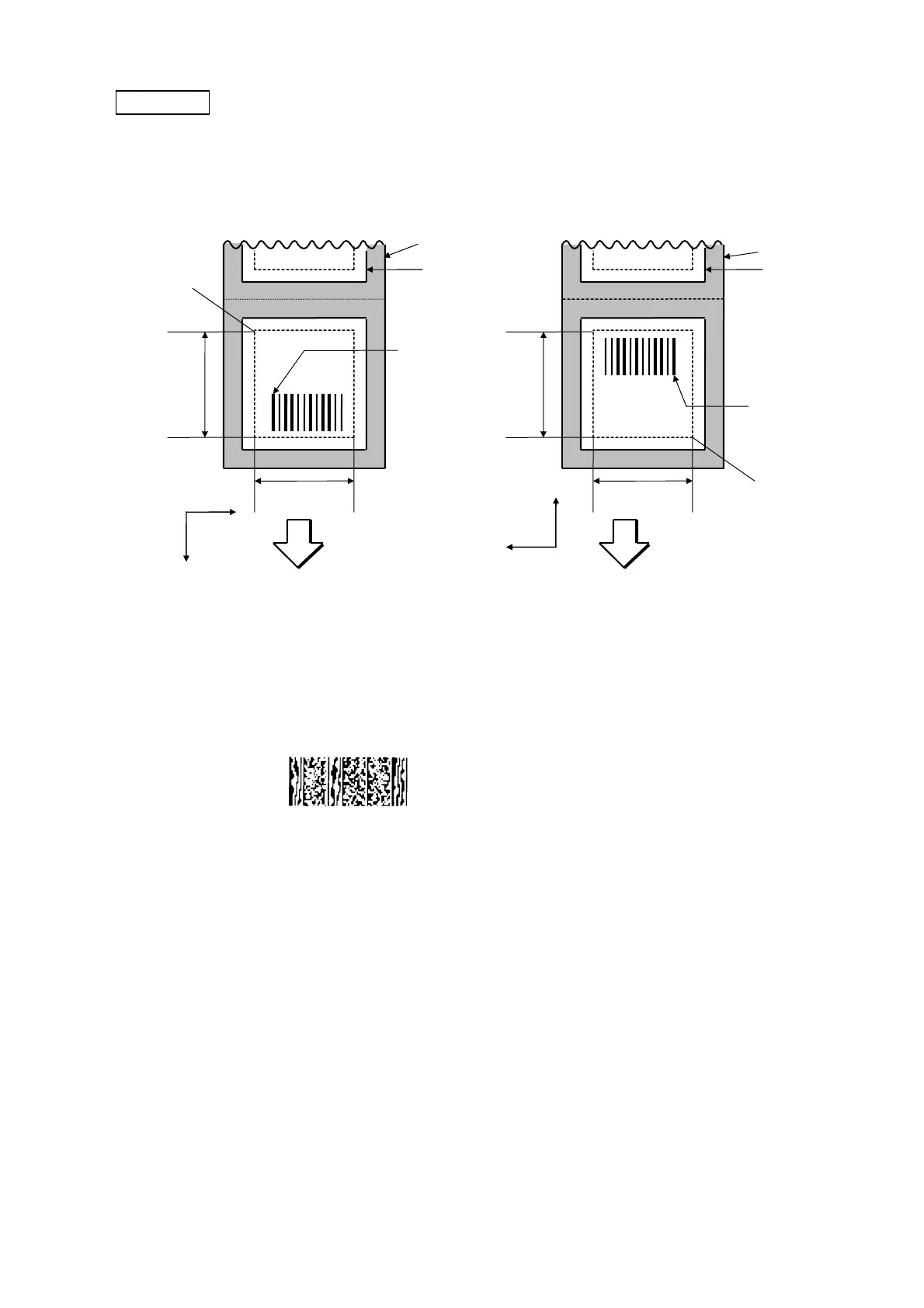

(2) Print origin of coordinates
[Printing direction: Bottom first] [Printing direction: Top first]
The print origin of coordinates must be set so that the two-dimensional code drawing
result will be within the effective print area set by the Label Size Set Command ([ESC] D).
(3) Type of two-dimensional code
X: MicroPDF417
(4) Security level
The MicroPDF417 contains a function to correct a code reading error using an error
correcting code word and restore normal data. The printer automatically sets the
security level.
Label
Paper feed direction
0
X
Y
Effective
print
length
Origin of
coordinates
(0, 0)
Effective
print width
Print origin of
coordinates
Backing paper
Backing paper
Paper feed direction
0
X
Y
Label
Effective
print
length
Origin of
coordinates
(0, 0)
Effective
print width
Print origin of
coordinates
