Toshiba B-EP4DL-GH32-QM-R Interface Specification

CHAPTER 5 TPCL-LE MODE (INTERFACE COMMANDS)
B-EP Series
5-138
Explanation
(1) Two-dimensional code number
When drawing by the Data Command ([ESC] RB), the format designated by the two-
dimensional code number is selected.
(2) Print origin of coordinates

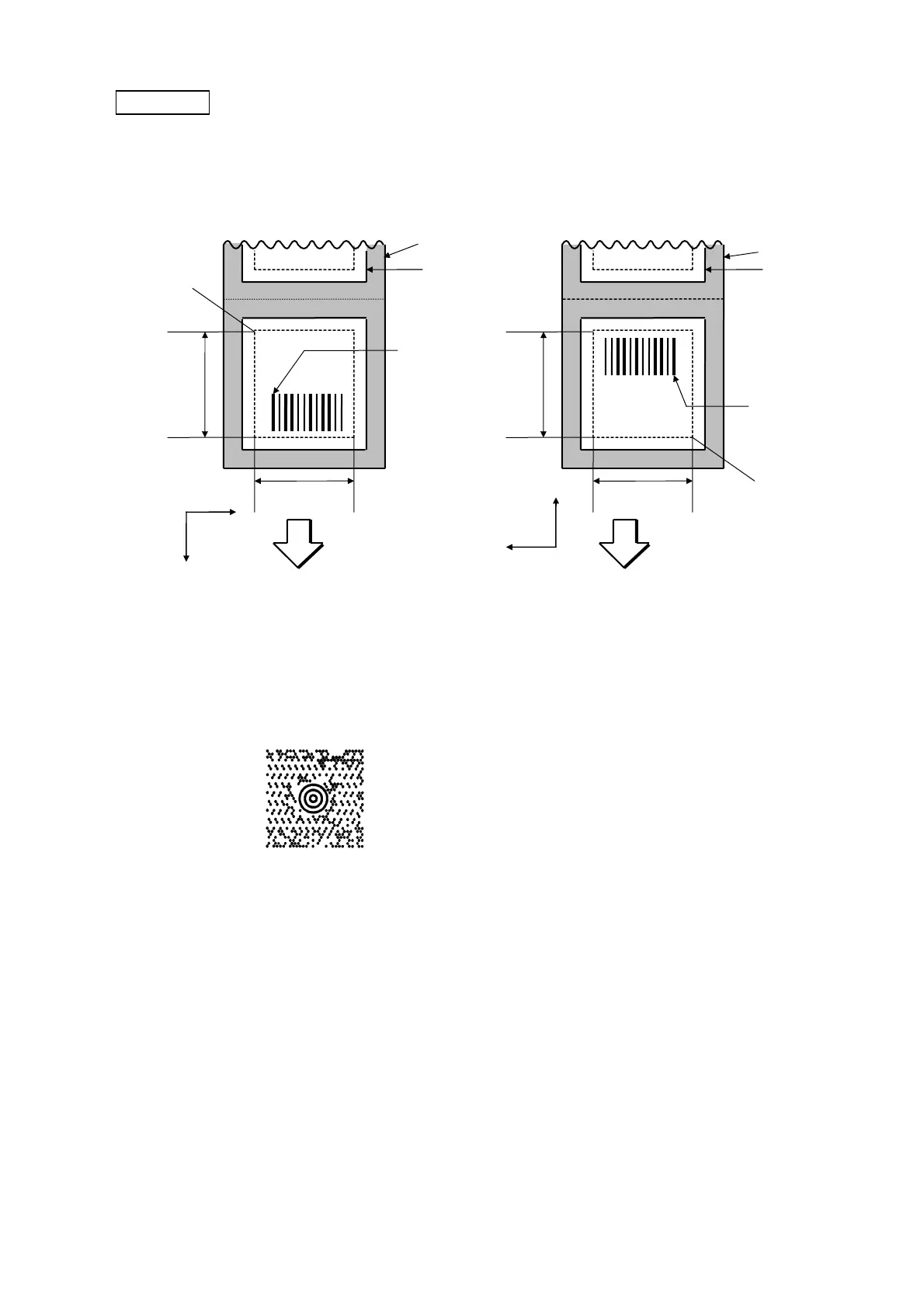

[Printing direction: Bottom first] [Printing direction: Top first]
The print origin of coordinates must be set so that the two-dimensional code drawing
result will be within the effective print area set by the Label Size Set Command ([ESC] D).
(3) Type of two-dimensional code
Z: MaxiCode
(4) Data string to be printed
Drawing data can be programmed by designating the number of digits after the symbol
“=.” The maximum number of digits to be printed is 93.
(5) Connection setting
For MaxiCode, data can be divided into several codes. The data can be divided into a
max. of 8 codes.
Label
Paper feed direction
0
X
Y
Effective
print
length
Origin of
coordinates
(0, 0)
Effective
print width
Print origin of
coordinates
Backing paper
Backing paper
Paper feed direction
0
X
Y
Label
Effective
print
length
Origin of
coordinates
(0, 0)
Effective
print width
Print origin of
coordinates
