Toshiba B-EP4DL-GH32-QM-R Interface Specification

CHAPTER 6 LABEL MODE (INTERFACE COMMANDS)
B-EP Series
6-21
Explanation (1) Character string No.
The data in the Data Print Command (X) is selected and linked in the order of this
character string No. (The format of character string Nos. 00 and 01 is linked to
the first and second data, respectively. In the same order, the format is linked to
the data.) Therefore, the Nos. of the bit map font character string, the outline
font character string, and the barcode/two-dimensional code, should be
consecutive, starting from 00 (in ascending order). The same No. must not be
used in one form for the bit map font character string field, the outline font
character string field, and the barcode/two-dimensional code field.

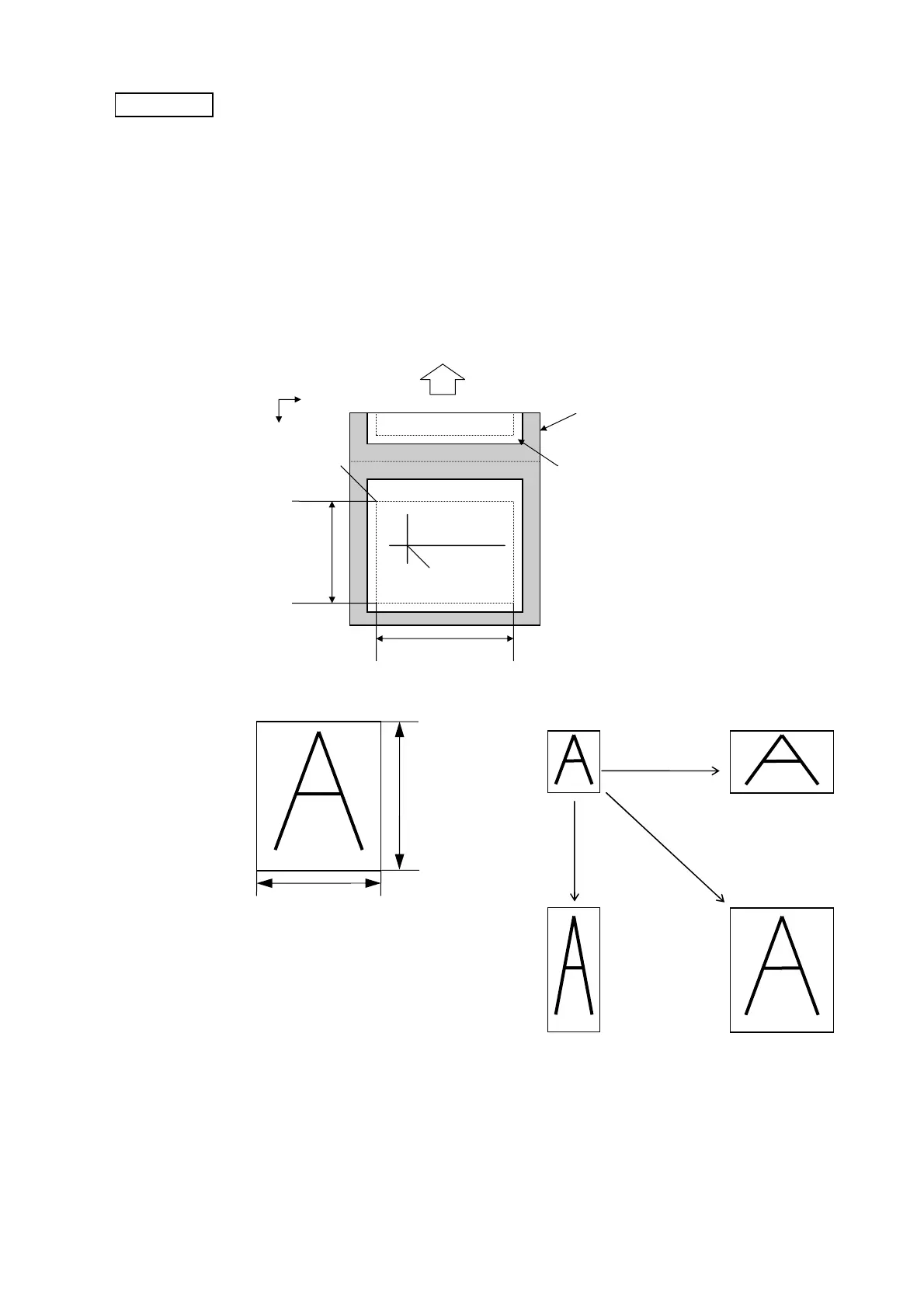

(2) Print origin of coordinates
(3) Horizontal magnification and vertical magnification
NOTE: When a large character or many characters is/are printed, the print
density may become lower. (When the print ratio per line is high, the
print density may become lower.)
Vertical
magnification
Horizontal mag.: 2
Vertical mag.: 1
Horizontal mag.: 1
Vertical mag.: 1
Horizontal mag.: 2
Vertical mag.: 2
Horizontal mag.: 1
Vertical mag.: 2
Horizontal
magnification
Sample
Origin of
coordinates
(0, 0)
Paper feed direction
Print origin of
coordinates
Effective print width
Effective
print length
Backing paper
Label
0
X
Y
