PROCEDURE
1 Attach the platform (004, Figure 8-5) to the crankshaft (002) and to the longitudinal
beam (003).
2 Attach the adjustable platform (001) to the applicable position between the columns
(005).
3 Obey the maximum load of the platforms on the related nameplate.

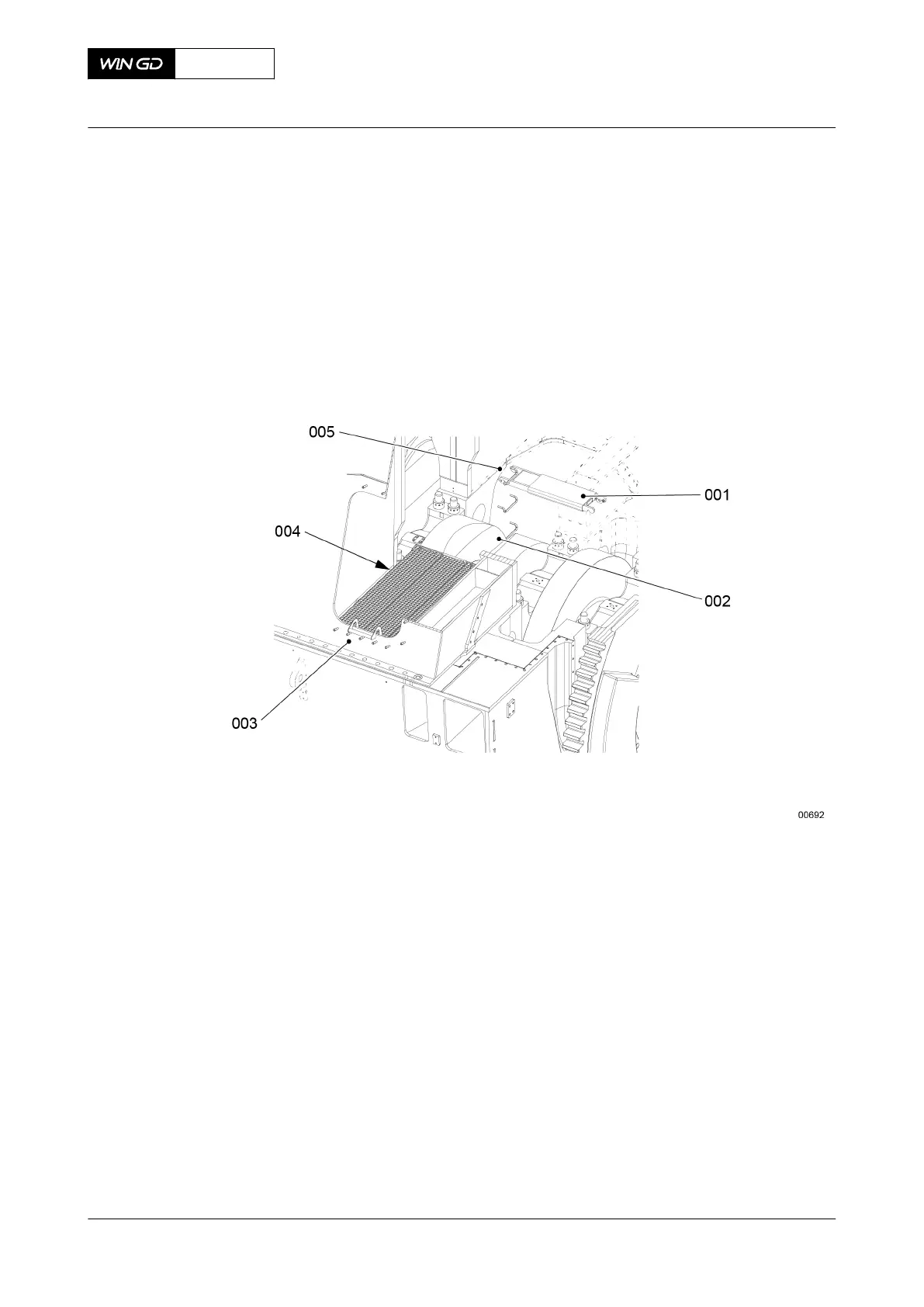

Fig 8-5 Platforms
CLOSE UP
• None
X72DF
AA00-3103-00AAA-720A-A
Maintenance Manual Crankshaft - install the work platform
Winterthur Gas & Diesel Ltd.
- 357 - Issue 002 2020-10
