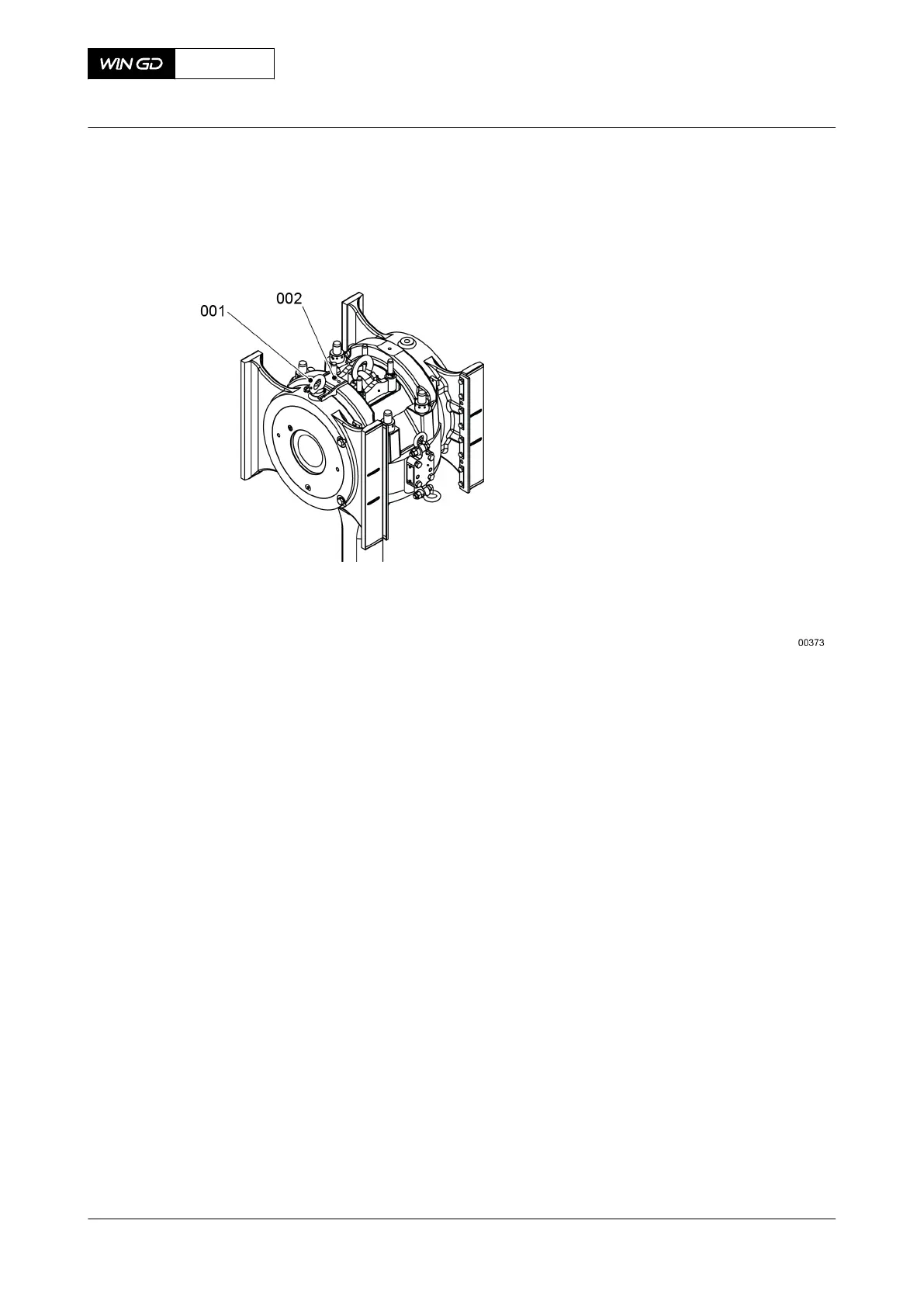

Fig 8-18 Stop plate
12 Lift the crosshead.
13 Remove the lever chain hoists (004, Figure 8-17) from the tool (009).
14 Remove the toggle lever (001) from the crosshead.
15 Put protection on the toggle lever (001) and the crosshead to prevent contamination and
damage.
CLOSE UP
• None
X72DF
AA00-3303-00AAA-523A-A
Maintenance Manual Connecting rod - prepare before removal
Winterthur Gas & Diesel Ltd.
- 380 - Issue 002 2020-10
