18 Turn the crosshead pin 90°.
19 Remove the deviation pipe (005).

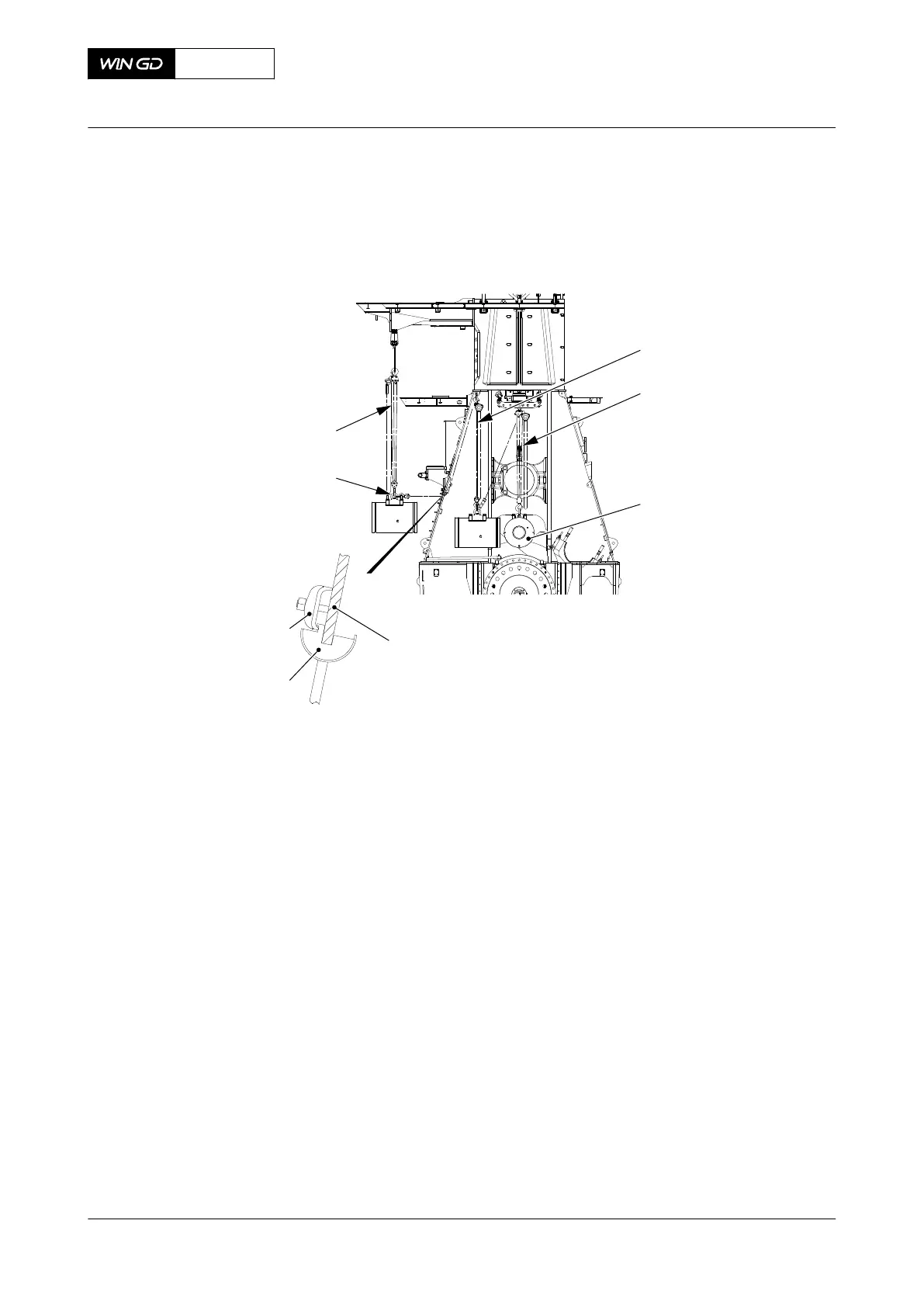

Fig 8-60 Crosshead - move
001
002
003
004
005
006
007
008
00754
20 Operate the chain block (006, Figure 8-61) to lower the guide shoe (005). Align the
guide shoe with the crosshead pin (004).
21 Attach the two eye bolt (007) to the crosshead pin (004).
22 Attach the chain (008) to the eye bolts (007).
23 Attach the eye bolt (011) to an applicable position on the column.
24 Attach the lever chain hoist (010) to the eye bolt 011) and the chain (008).
25 Operate the lever chain hoist (010) to pull the crosshead pin (004) into the guide shoe
(005).
26 Remove the chain (008), the eye bolts (007, 011) and the lever chain hoist (010).
27 Do Step 20 to Step 26 for the other guide shoe (003).
X72DF
AA00-3326-00AAA-720A-A
Maintenance Manual Crosshead - install
Winterthur Gas & Diesel Ltd.
- 465 - Issue 002 2020-10
