3.1.4.1 Use of RUD-eye bolts
•
The RUD-eye bolts must be completely screwed down, lying fully on the seating surfaces.
•
The RUD-eye bolts are hand-screwed with their own star-profile wrenches (do not use
any extension).
•
In order that after tightening the ring of the RUD-eye bolt can freely turn, the star-profile
wrench must be removed from the inner hexagon of the screw.
•
Prior to loading the RUD-eye bolt adjust it in force direction (RUD-eye bolts are not
suitable to be turned under load).
•
Lateral loading is permitted in no circumstances (see Figure 3-1).

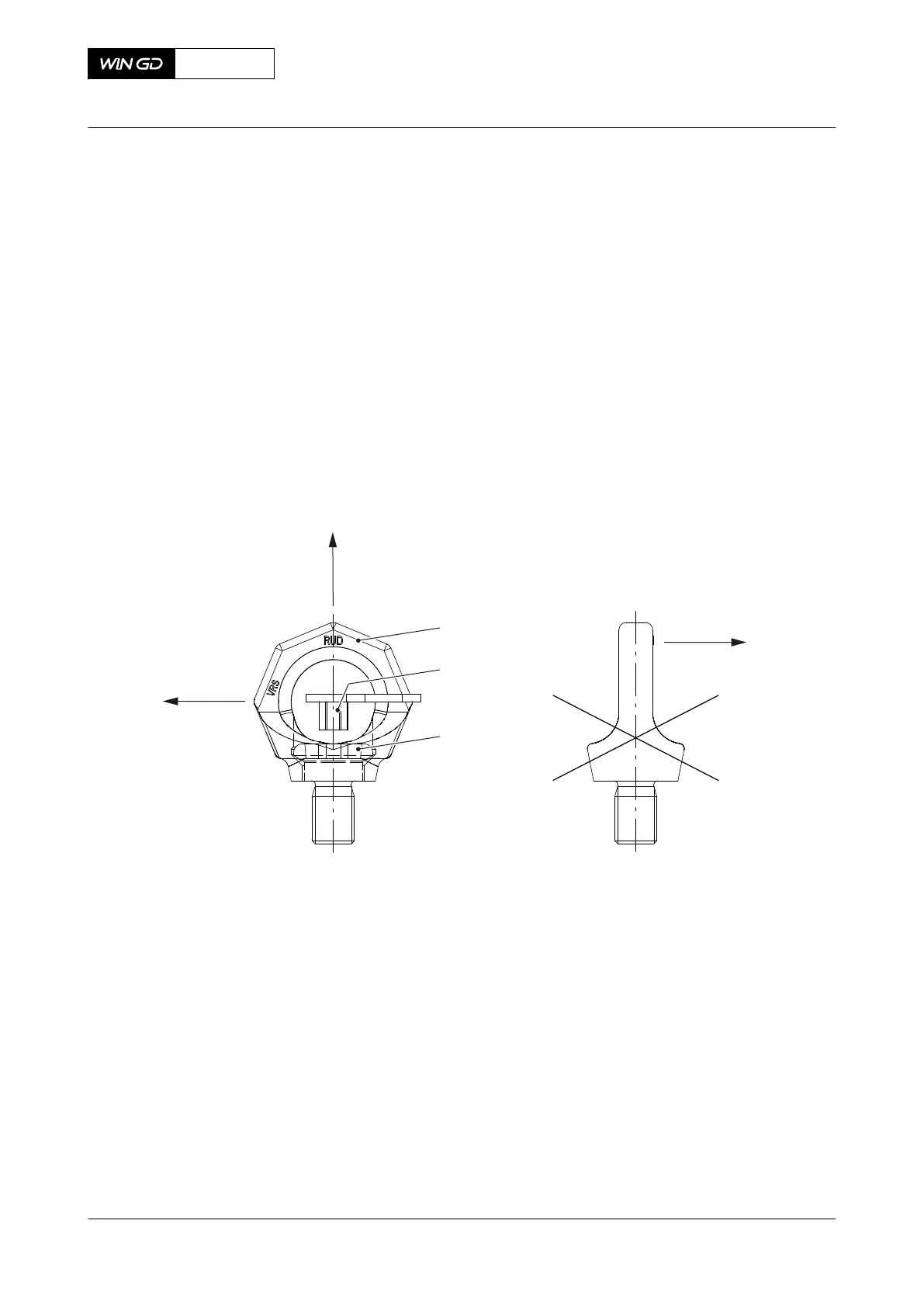

Fig 3-1 RUD-eye bolts
00284
Force
Direction
001
Force
Direction
002
003
Force
Direction
Legend
001 Ring 003 Screw
002 Star-profile wrench
3.1.4.2 Use of RUD-swivel lugs
•
The RUD-swivel lugs must be completely screwed down, lying fully on the seating
surfaces.
•
The RUD-swivel lugs are hand-screwed with an open end wrench.
•
Prior to loading the RUD-swivel lug adjust it in force direction.
•
Loading as shown in Figure 3-2 should be avoided if possible.
X72DF
AA00-0000-00AAA-066A-A
Maintenance Manual Lifting tools
Winterthur Gas & Diesel Ltd.
- 58 - Issue 002 2020-10
