PROCEDURE
1 Attach the cylinder lubricating pump (009, Figure 12-5) to the rail unit with the screws
(002).
NOTE: The figure is for MK-E pump. For MK-1 pump the pump and the pipes are
partly different.
2 Tighten symmetrically the screws (002).
3 Attach the pipes (008) to the cylinder lubrication pump (009).
NOTE: The number of pipes is related to the engine.
4 Tighten the nuts (009) of the pipes (008).
5 Connect the electrical connection to the 4/2-way valve (011).
6 Connect the electrical connection to the pressure transmitter (007).
7 Attach the pipes (001, 003 and 004) to the cylinder lubricating pump, refer to your notes
made in the removal procedure.
8 Attach the pipe brackets (005) to the positions shown.
9 If necessary, attach the pipe brackets (006) to the positions shown.
10 Install the cover (012) to the rail unit.

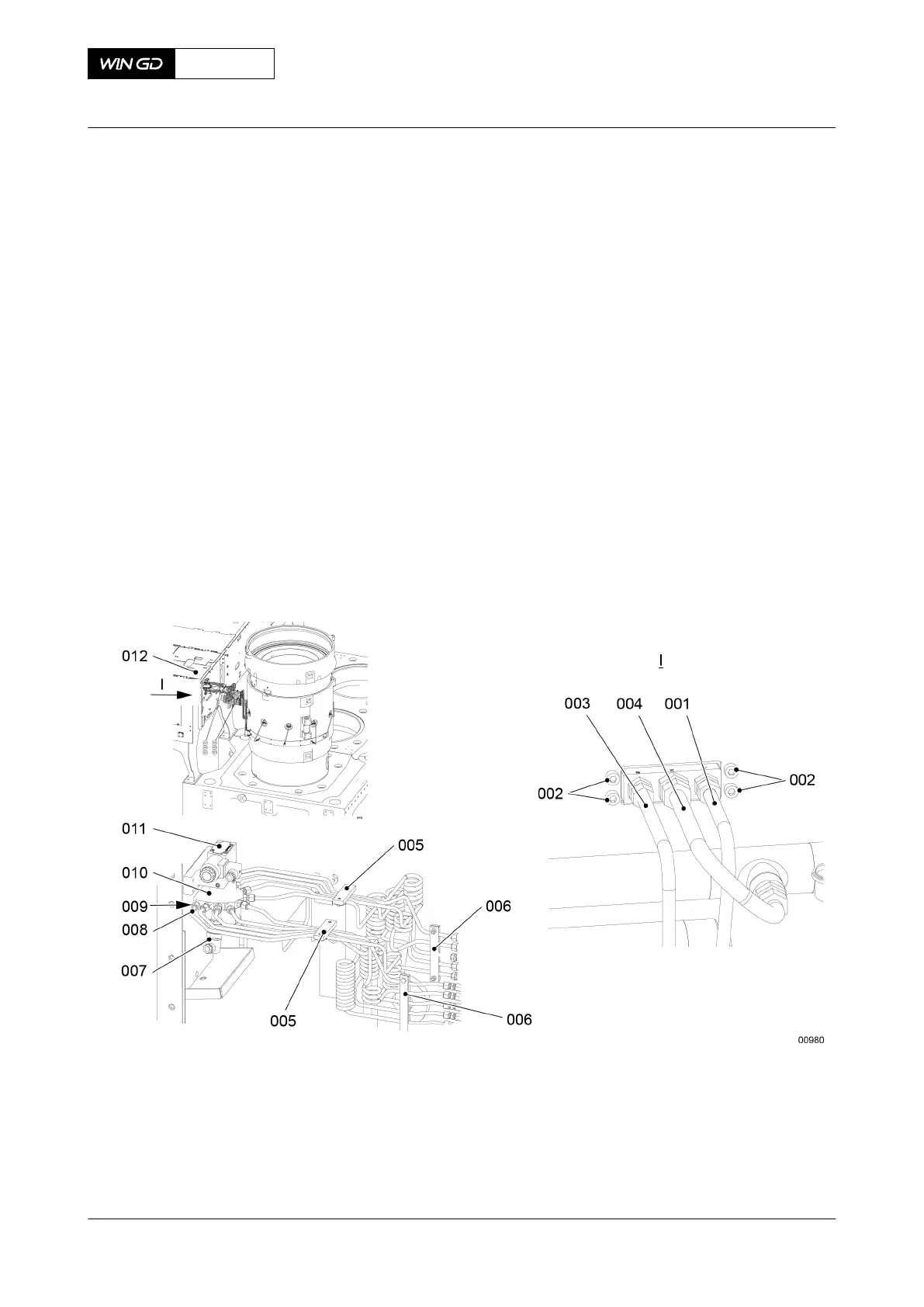

Fig 12-5 Cylinder lubricating pump (MK-E, example) - install
CLOSE UP
• None
X72DF
AA00-7206-00AAA-720A-A
Maintenance Manual Cylinder lubricating pump - install
Winterthur Gas & Diesel Ltd.
- 687 - Issue 002 2020-10
