1128600 SmartPAC 2 with WPC 2000 Integration User Manual
3-4 Keyboard, Displays, Etc.
Number Keys
The number keys, shown in Figure 3-5, are used to input numeric values, such as counter
presets or tool numbers. They are used in conjunction with entry windows–numeric,
alphabetic, and alphanumeric–which display when you select items on SmartPAC 2 screens
(see Figure 3-6, below, and Figure 3-7, page 3-5).
To enter a number in an entry window, simply key in the individual digits of the number,
using the number keys, and press ENTER. The window closes when you are finished, and the
number you entered appears on the SmartPAC 2 screen next to the item you selected.
You can also use the cursor keys to enter information on these entry screens (see Cursor Keys,
page 3-6). The CLEAR key is used to delete entered information (see CLEAR Key, next). To
cancel a numeric entry operation, press RESET (see RESET Key, page 3-11).
CONTINUOUS MODE USED ON PRESS NOT GUARDED PROPERLY FOR CONTINUOUS
Disconnect the “Continuous” position on the Stroke Select switch to prevent your press from being
run in Continuous mode if it is not guarded correctly for use in Continuous mode. Also cover the
“CONT” label on your control’s Stroke Select switch.
Failure to comply with these instructions will result in death or serious injury.

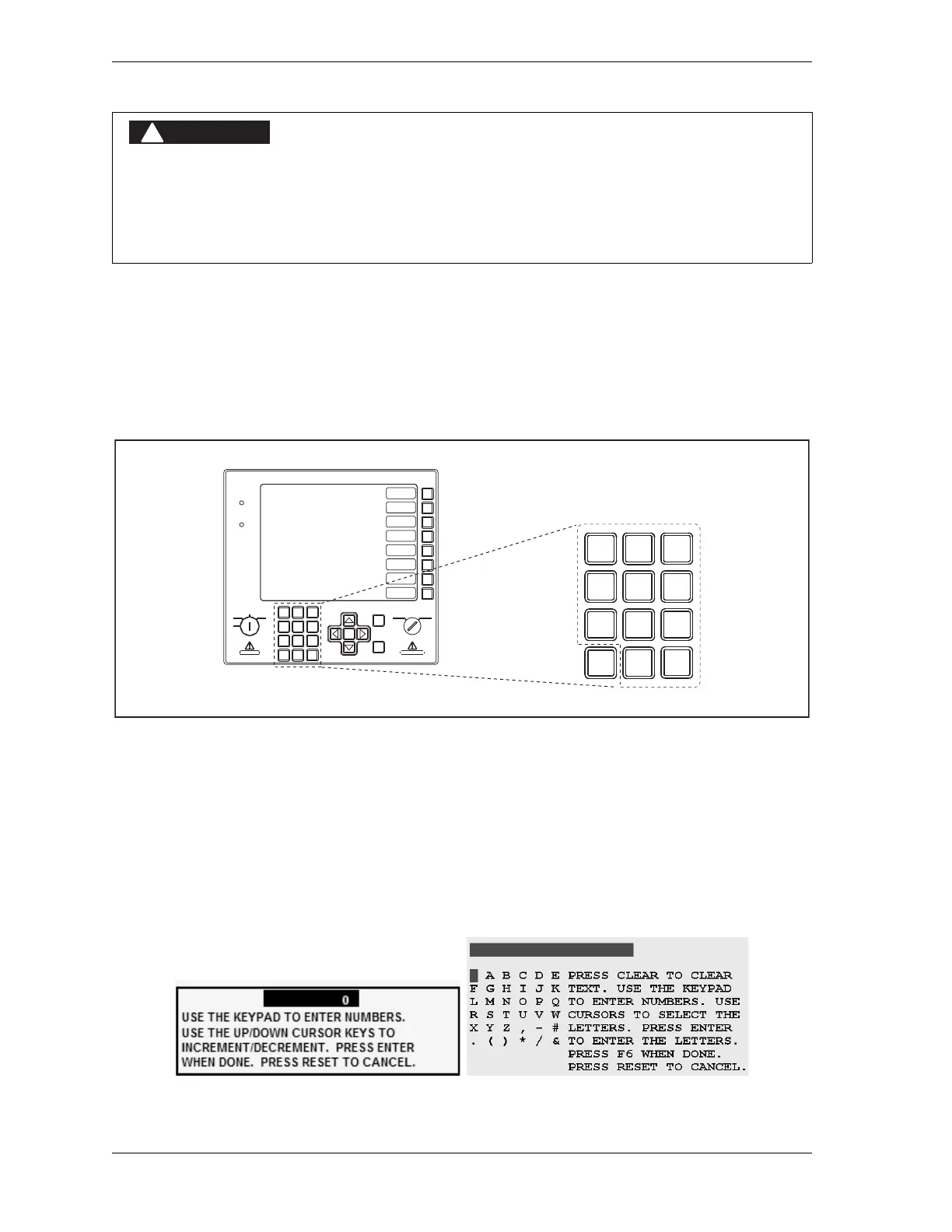

Figure 3-5. Number Keys
Figure 3-6. Numeric Entry Window (Left); Alphabetic Entry Window (Right)
123
456
987
.
0
CLEAR
Number keys
ENTER
RESET
PROG RUN
POWER
BRAKE
WARNING
HELP
123
456
987
.
0
CLEAR
SmartPAC 2
F1
F2
F3
F4
F5
F6
F7
F8
CAMBIE
AL ESPANOL
OFF
INCH
SINGLE
STROKE
CONT
