1128600 SmartPAC 2 with WPC 2000 Integration User Manual

3-6 Keyboard, Displays, Etc.

Cursor Keys

The cursor, or arrow, keys, shown in Figure 3-9, are used to

• Move the highlight bar over an item you want to select on a SmartPAC 2 display

• Increase or decrease numeric values in SmartPAC 2 entry windows and screens

• Move the highlight box over a letter you want to enter in a SmartPAC 2 entry window

• Set the Ready signal for sensors and timing for cams (see page 3-23)

Using Cursor Keys to Move the Highlight Bar

The cursor keys control the movement of the highlight bar that you use to select items on a

SmartPAC 2 screen, such as the CAM SWITCH item on the SmartPAC 2 Run Menu shown in

Figure 3-10.

Pressing the Up () or Down () cursor key moves the highlight bar up or down the list of

items. When the highlight bar rests on the item you want to select, press ENTER.

The highlight bar moves one item up or down for each depression of the appropriate key. If

you hold the key down, the highlight bar moves until you release it.

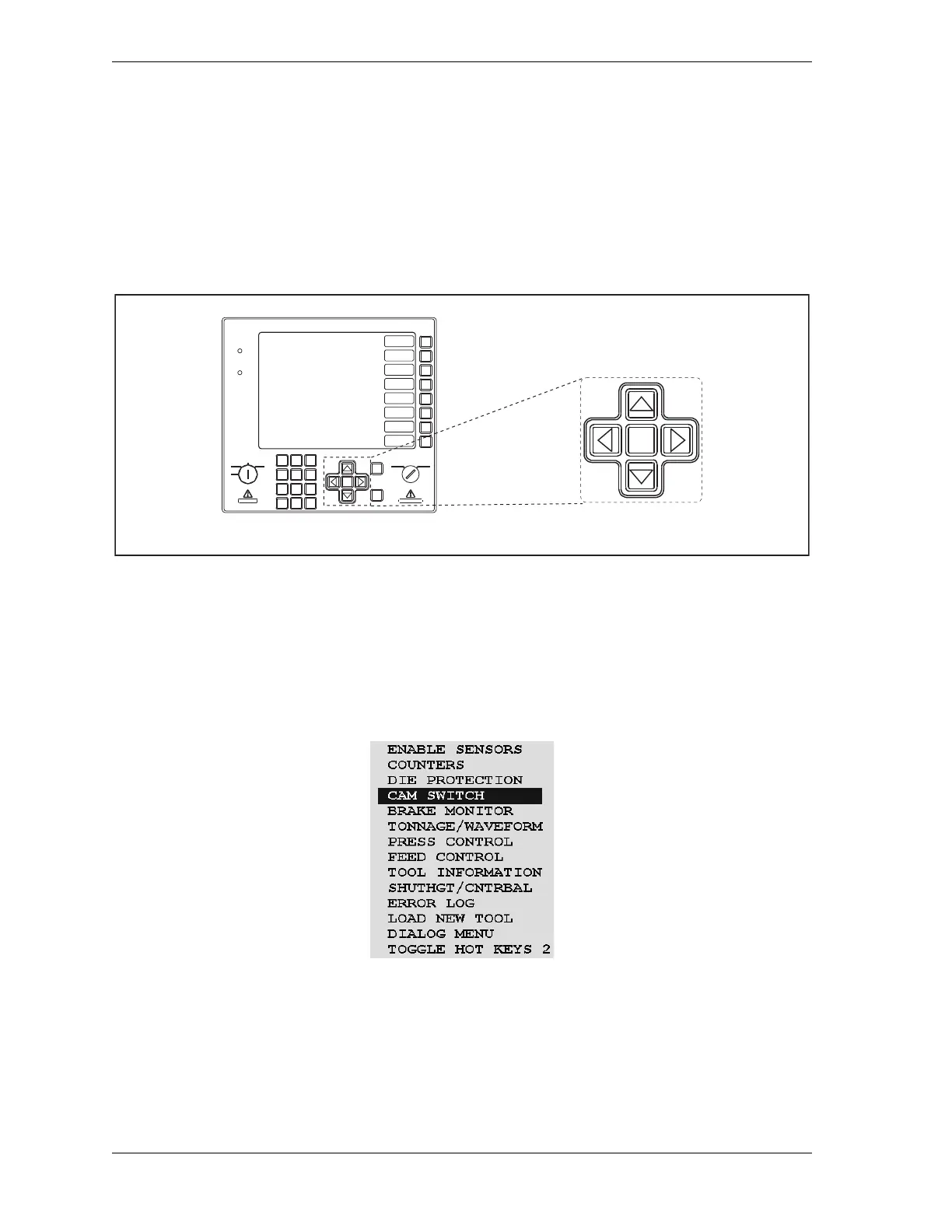

Figure 3-9. Cursor Keys

Figure 3-10. Highlighted Item on Run Menu

Cursor (arrow)

keys

HELP

ENTER

RESET

PROG RUN

POWER

BRAKE

WARNING

HELP

123

456

987

CLEAR

SmartPAC 2

CAMBIE

AL ESPANOL

OFF

INCH

SINGLE

STROKE

CONT
