SmartPAC 2 with WPC 2000 Integration User Manual 1128600

Reporting Downtime and Scrap to LETS I-7

Making Downtime Reporting Settings

To enable and configure the SmartPAC 2 downtime reporting features described in the

previous section, perform the following steps:

1. At the SmartPAC 2, turn the Program/Run key to “PROG,” then press the “1” and

“CLEAR” keys simultaneously for a second or two until the Main Initialization Menu (see

Figure I-4) displays.

2. Highlight the “SETUP DATA COMMS” menu item, using the Up () or Down ()

cursor key, and press ENTER. The Set Communications Menu (see Figure I-5) displays:

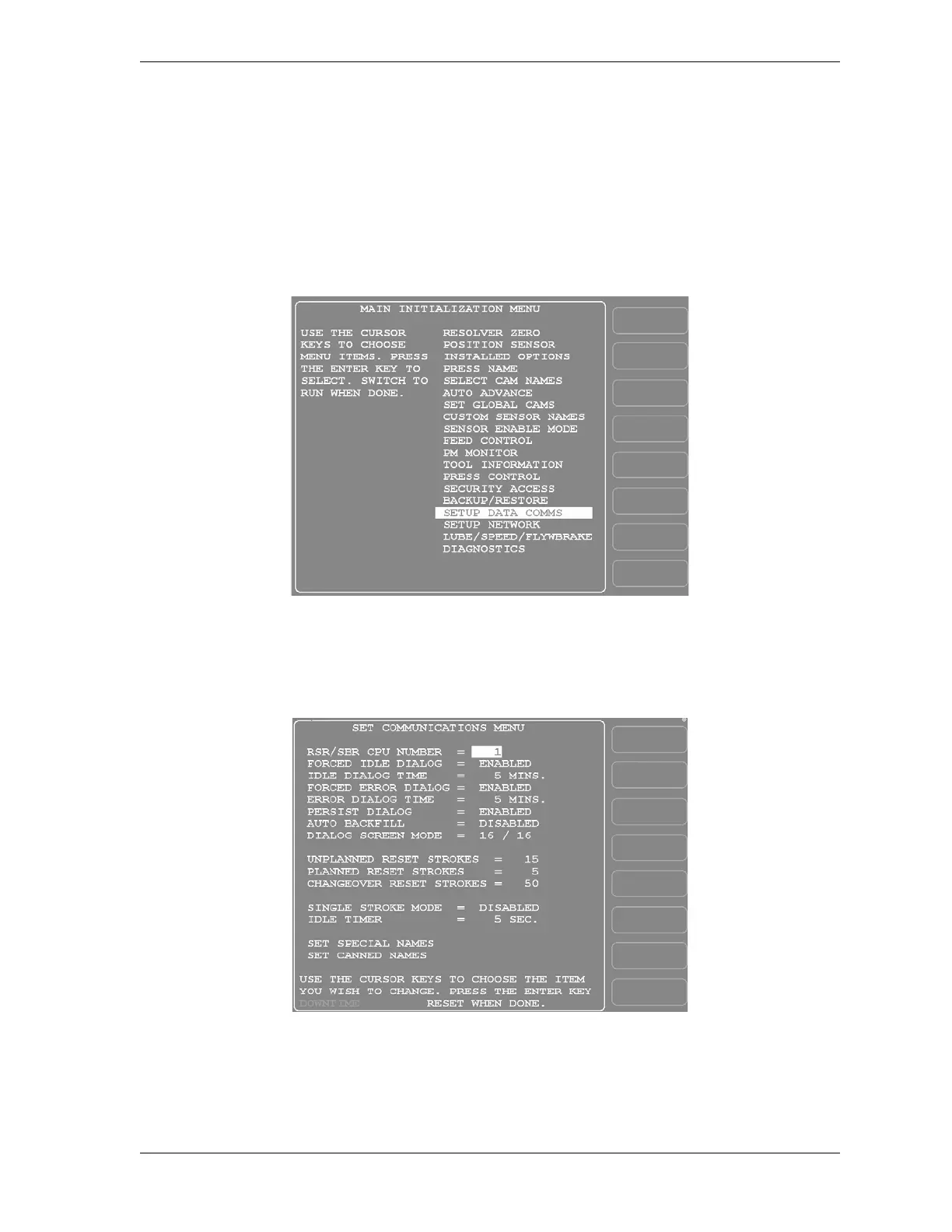

Figure I-4. SmartPAC 2 Main Initialization Menu

Figure I-5. Set Communications Menu
