SmartPAC 2 with WPC 2000 Integration User Manual 1128600
Program Mode 5-37
4. When the Sensor Stop Type screen displays, select a stop type. The Sensor Summary
screen (see Figure 5-41) displays with the stroke count shown for each green special
sensor programmed in the group of sensors 1-16.
5. Select the green special stroke count you want. The Sensor Settings screen (see
Figure 5-42) displays, showing the name of the sensor, sensor type, stop type, and stroke
count you have selected. The screen also shows the number of the sensor in the group of
sensors 1-16 whose stroke count is being used as the stroke count for the sensor you are
programming.
6. Press RESET to return to the Die Protection Sensor 17-32 Menu.

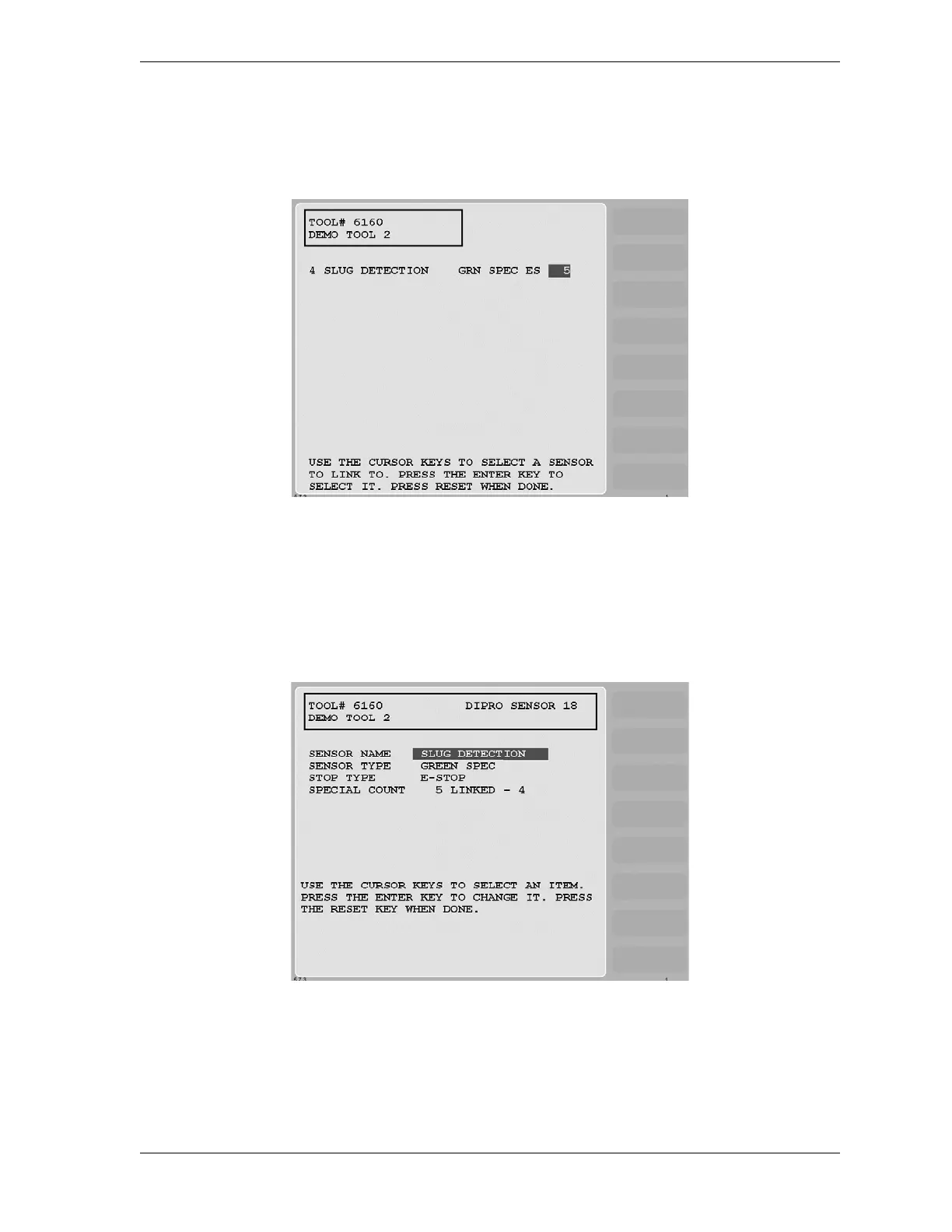

Figure 5-41. Sensor Summary Screen Showing Stroke Counts for Green Special Sensors
Figure 5-42. Sensor Settings Screen
