1128600 SmartPAC 2 with WPC 2000 Integration User Manual
2-8 Installation
Wiring the Control Enclosure
WPC 2000 requires the following electrical components:
• Motor forward auxiliary contact (24V)
• Slide adjust monitor circuit (24V)
• Motor stop circuit (110V), if applicable
• Motor reverse auxiliary contact (24V), if applicable
Power to WPC 2000 should be provided by a step-down control transformer capable of
handling 75 VA at 115 Vac ± 10%.
Most of the original controls on the press will be replaced during rewiring except the
disconnect, motor starter, and control transformer. Make sure to rewire so that the motor
starter operates properly.

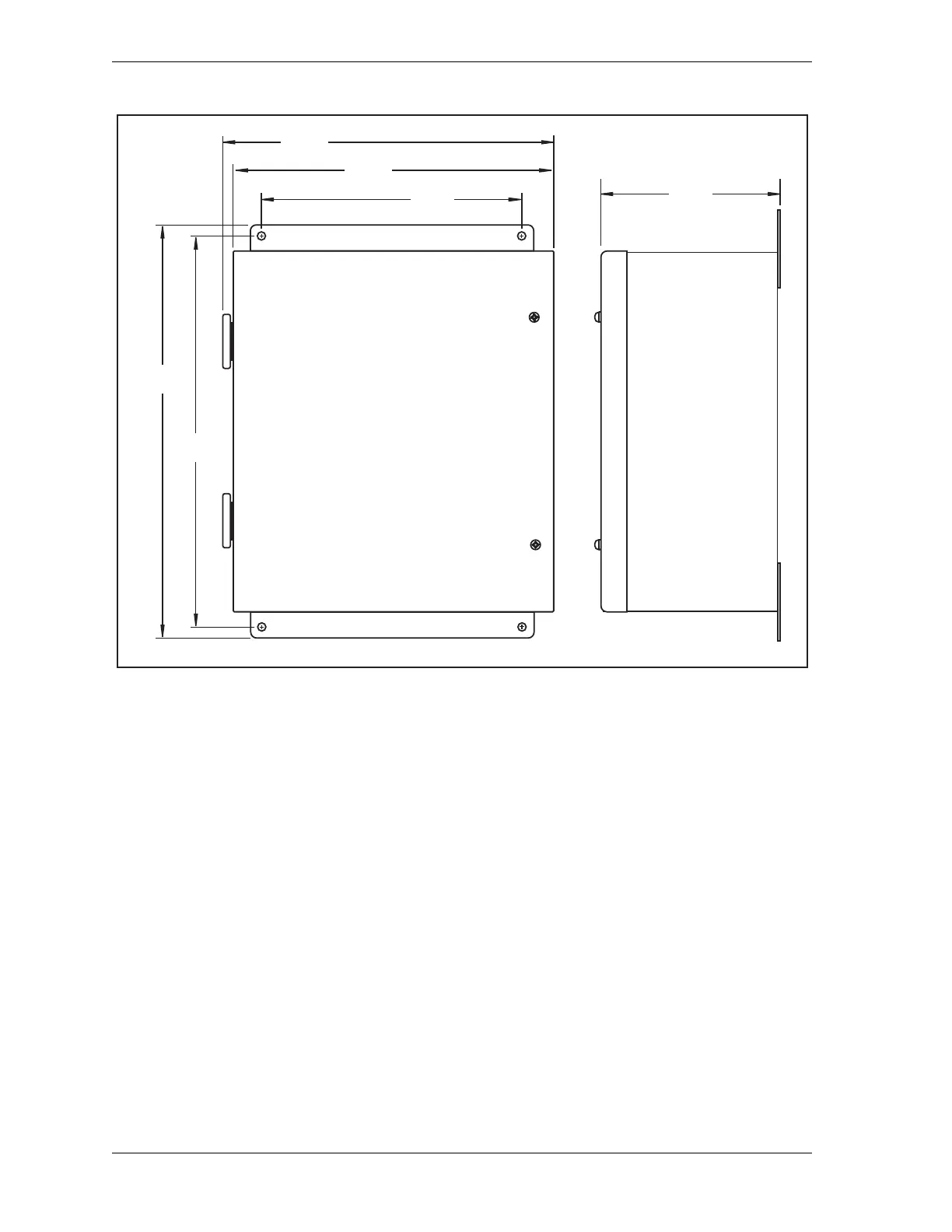

Figure 2-4. WPC 2000 Enclosure: Mounting Dimensions
12.00
(304.8)
14.68
(372.8)
17.62
(447.6)
16.88
(428.8)
Note: Allow sufficient clearance
for opening door
7.27
(184.5)
14.28
(362.7)
Dimensions: inches
(mm)
