1128600 SmartPAC 2 with WPC 2000 Integration User Manual
6-16 Run Mode
When programmed as green sensors, sensors 17-32 cannot be adjusted in Run mode since
they share their Ready signals or stroke counts with one of the first sixteen sensors. You can,
however, adjust the Ready signal or stroke count for the sensor on which settings are based.
Adjustments are automatically duplicated in all linked sensors 17-32.
When you select a sensor programmed as green, green quick check, or green constant on the
Die Protection Menu for Sensors 17-32, the Run mode Ready Signal Programming screen
displays with a message, located underneath the status box, indicating that you cannot change
Ready signal timing for this sensor (see Figure 6-18). If you want to change timing, you must
change the timing for the sensor in the group of sensors 1-16 whose Ready signal is being
used for the sensor you are programming.

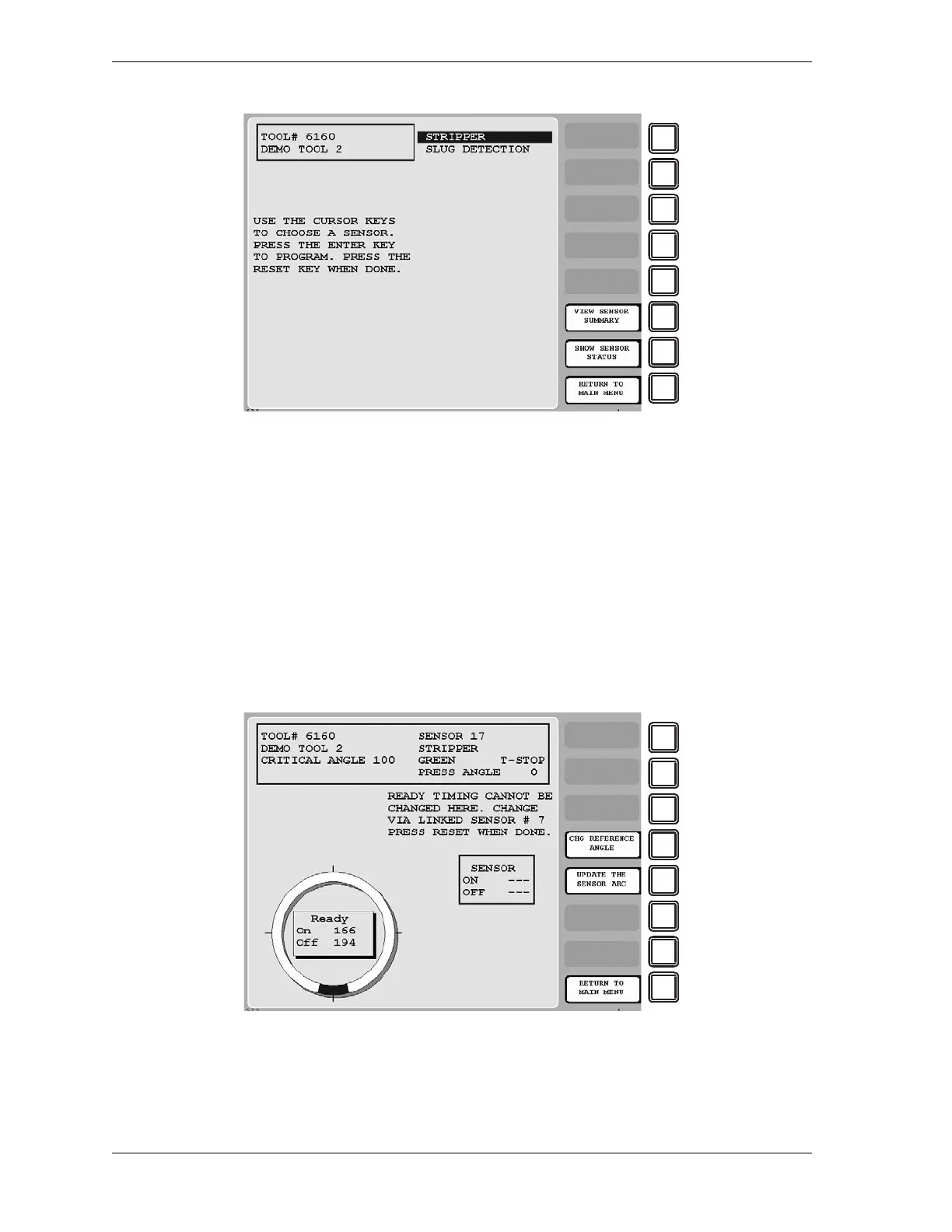

Figure 6-17. Die Protection Sensor Menu for Sensors 17-32
Figure 6-18. Ready Signal Programming Screen, Run Mode
