1128600 SmartPAC 2 with WPC 2000 Integration User Manual

4-46 Initialization Mode

When you press F5 (Transducers), the WPC Transducer Input Status screen displays (see

Figure 4-29).

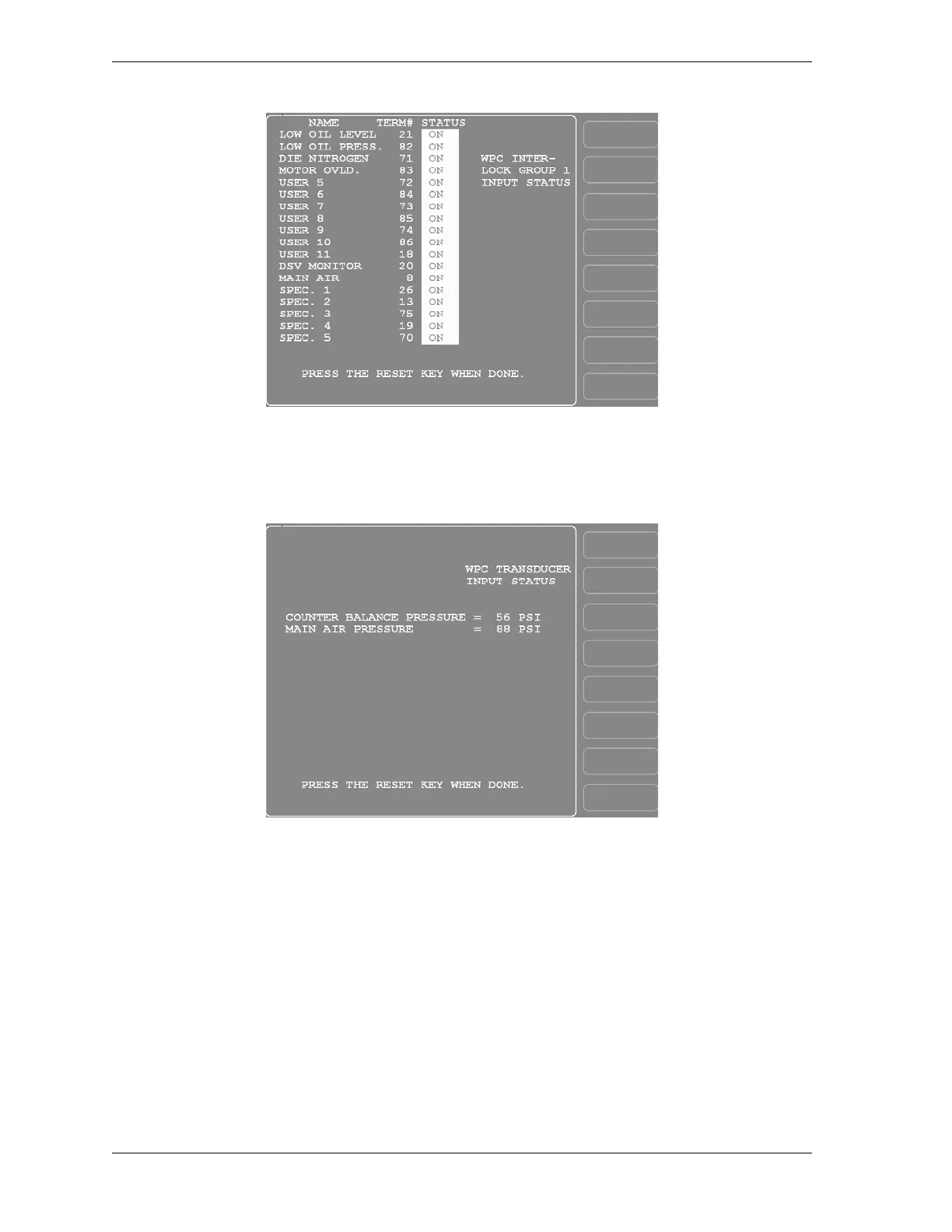

Figure 4-28. WPC Interlock Group 1 Input Status Screen

Figure 4-29. WPC Transducer Input Status Screen
