The maximum and minimum speed limit settings are provided to allow programming of tools
run on a variable-speed press. They apply to all Run operating modes–Continuous,
Single-stroke, and Inch. When the speed of the press exceeds the maximum limit, SmartPAC
2 stops the press and displays the fault message “Maximum press speed exceeded.” When
press speed drops below the minimum limit, SmartPAC 2 stops the press and displays the fault
message “Minimum press speed exceeded.” These fault message are documented in Chapter
7 (see page 7-30).
The counterbalance setpoint is used together with the counterbalance tolerance you set in
Initialization (see Setting Clutch and Counterbalance Air Pressure Limits, page 4-29) to
specify the pressure range outside of which an F46 (Counterbalance Air Outside Sensor
Limits) error displays on the SmartPAC 2 LCD. This field will not display if the Initialization
tolerance value is set to zero (0).
To make settings on this screen, do the following:
1. Select PRESS CONTROL on the Tool Program Menu. The Press Control Parameters
screen displays.

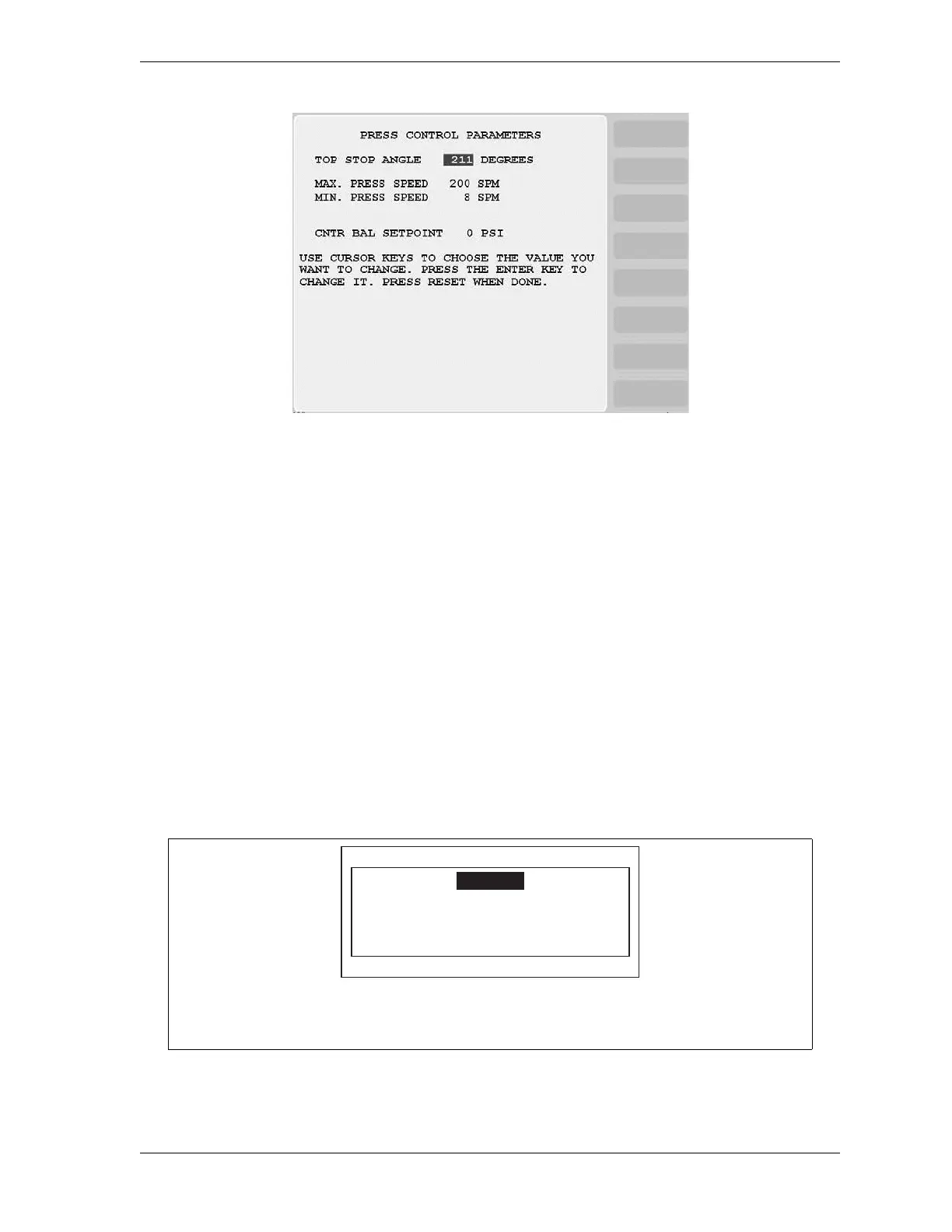

Figure 5-56. Press Control Parameters Screen
If this display appears, you need to enter the general password to program press speed
settings. Security access is set in Initialization mode (see SECURITY ACCESS,
page 4-47).
Figure 5-57. “Enter Your Password” Screen
ENTER YOUR PASSWORD
USE THE KEYPAD TO ENTER NUMBERS.
USE THE UP/DOWN CURSOR KEYS TO
INCREASE/DECREASE. PRESS ENTER
WHEN DONE. PRESS RESET TO CANCEL.
60599
To Next Page
