1128600 SmartPAC 2 with WPC 2000 Integration User Manual
2-6 Installation
Terminating Cable Shields
Your SmartPAC 2 and WPC 2000 have ground studs on the inside of the enclosure for
terminating cable shields at their point of entry. For each shielded cable, perform the
following steps, referring to Figure 2-3.
1. Strip the cable jacket as far as the end of the conduit fitting.
2. Cut the drain wire to a length that allows it to wrap at least once around the nearest
grounding stud. Loosen the nut on the stud, wrap the drain wire clockwise around the
stud, and tighten down the nut.
3. Connect the rest of the wires in the cable to the terminal block.

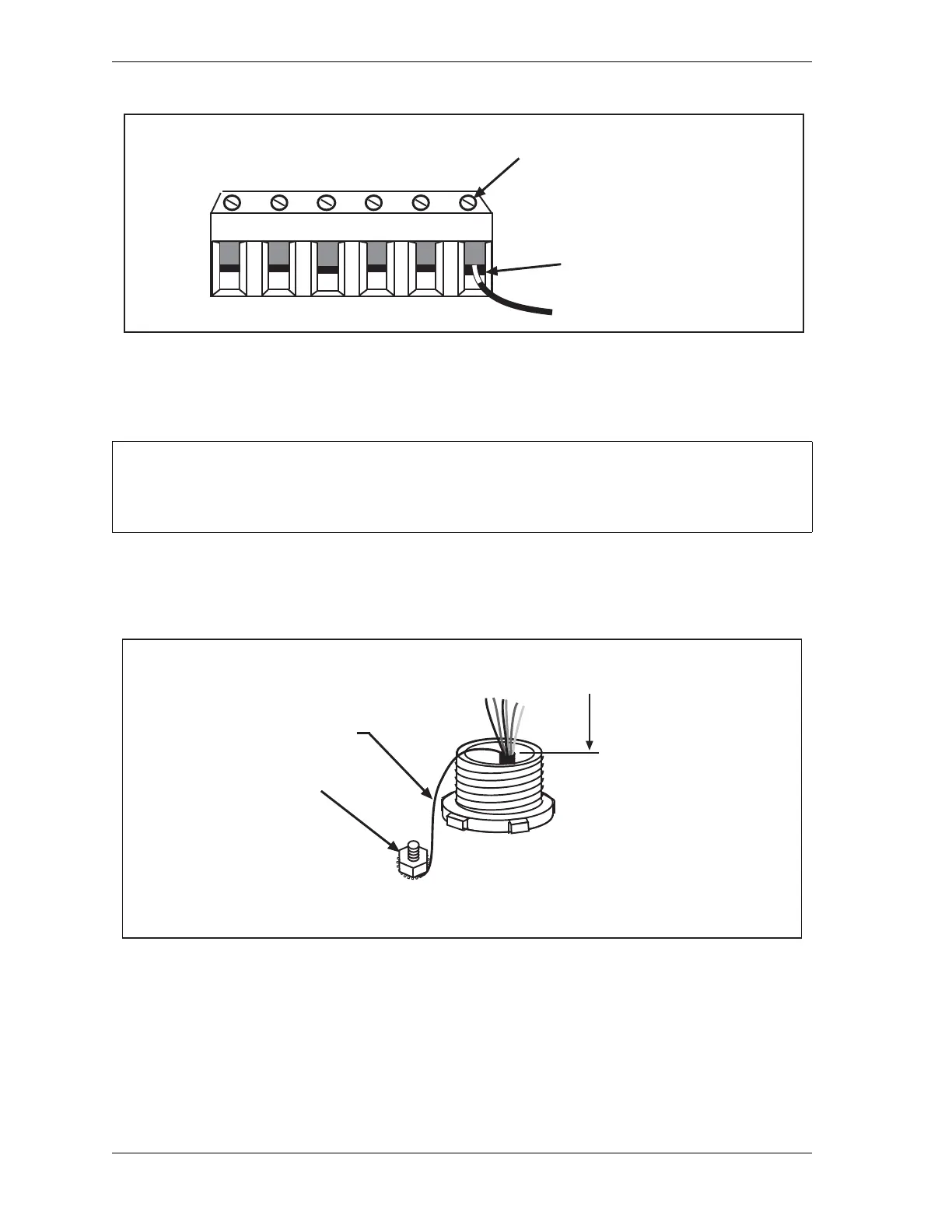

Figure 2-2. Correct Way to Attach Wires to Terminal Block Connectors
TERMINATE BOTH ENDS OF SHIELD
Be sure to terminate cable shields at both ends (for example, at SmartPAC 2 and DSI 2).
Figure 2-3. Connecting Shield Drain Wire to Ground Stud
Insert wire here
Tighten screw to clamp
wire in terminal
NOTICE
Secure drain wire
under nut on
ground stud
Drain wire
Strip cable jacket
as far as end of
conduit fitting
