1128600 SmartPAC 2 with WPC 2000 Integration User Manual
5-48 Program Mode
To view global cams, do the following:
1. Press F5 (View Global Cam Summary) on the Cam Channel Menu. The Global Cam
Summary screen (see Figure 5-55) displays with the name, program type, and
programmed settings shown for each channel set as a global cam.
PRESS CONTROL
(PROGRAM – GO TO THE TOOL MANAGER – select tool – F4-EDIT TOOL – PRESS CONTROL)
This item on the Tool Program Menu enables you to program the following press control
parameters for each tool:
• Top-stop angle
• Maximum and minimum press speed limits
• Counterbalance setpoint
Settings are made on the Press Control Parameters screen, which is shown in Figure 5-56,
page 5-49.
The top-stop angle is the crankshaft angle at which the Top-stop command is given on your
press. This value is set by default to the Initialization Top Stop Default setting (see Setting the
Top-stop Angle, page 4-28). You can change the default setting for each tool to account for
differences in die weight, press speed, etc.

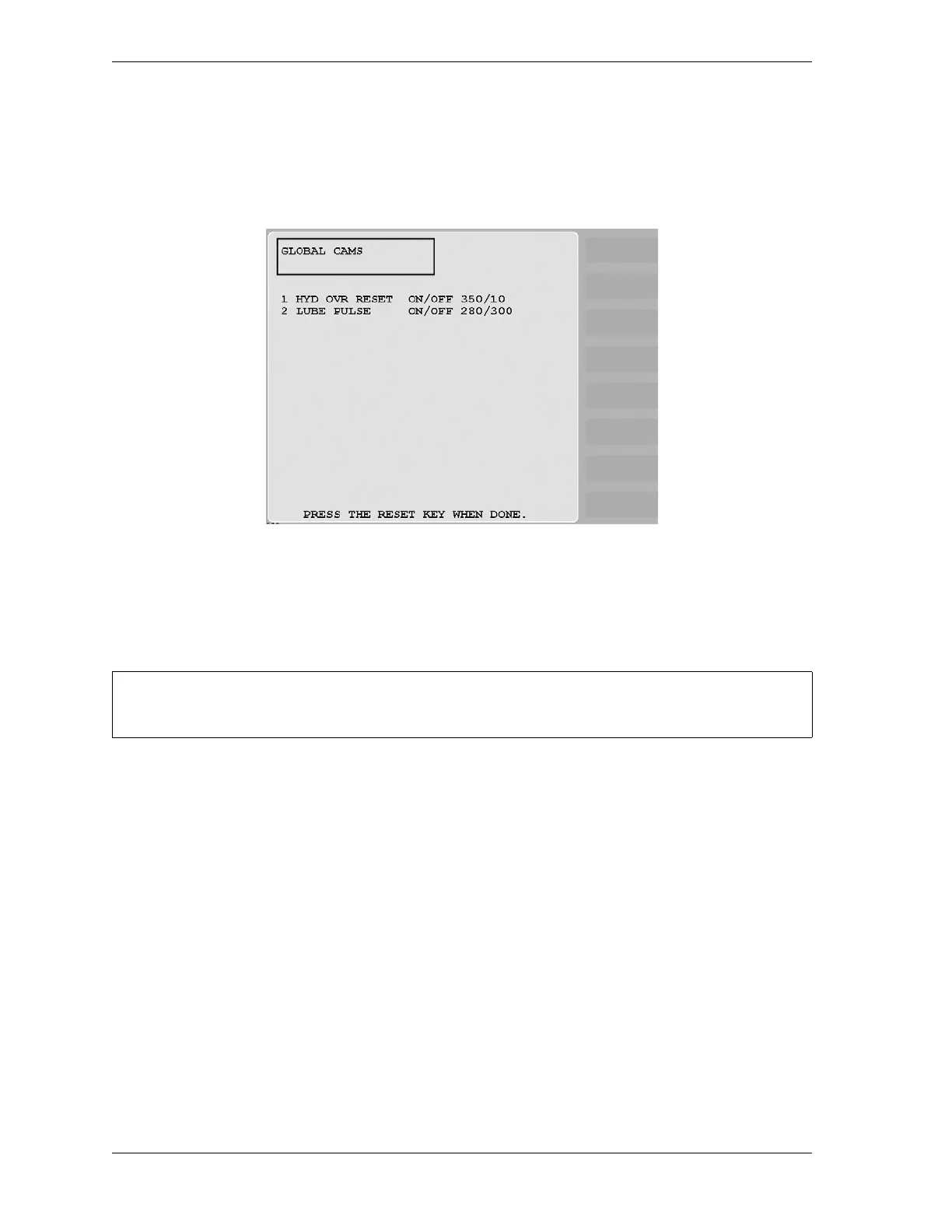

Figure 5-55. Global Cam Summary Screen
For help with the Press Control screen, press the HELP key when the screen is displayed.
