1128600 SmartPAC 2 with WPC 2000 Integration User Manual
6-6 Run Mode
Opening the Crankshaft Angle Window
You can open a window displaying the crankshaft angle at a magnification comparable to that
on the crank angle clock on the Main Run Menu for use on Run mode screens where a
prominent crankshaft angle display is useful such as angle adjustment screens for cams and
die protection sensors. Simply press the decimal point (.) key when you are on the Main Run
Menu. The crankshaft angle window opens in the upper right corner of the screen, as shown
in Figure 6-7. To close the window, press the decimal point key again.
The crankshaft angle window can only be opened on the Main Run Menu. Once the window
is displayed, it carries over to other selected Run mode screens.
DISABLE (ENABLE) SENSORS
(RUN – DISABLE [ENABLE] SENSORS)
This item allows you to manually enable your sensors when they are disabled or disable your
sensors when they are enabled. When sensors are enabled, the message SENSORS
ENABLED is displayed at the left of the Status Box on the Main Run Menu, as shown in
Figure 6-8, page 6-7, and this item is captioned DISABLE SENSORS. When sensors are
disabled, the message SENSORS DISABLED flashes in red at the left of the Status Box, and
the item is captioned ENABLE SENSORS.

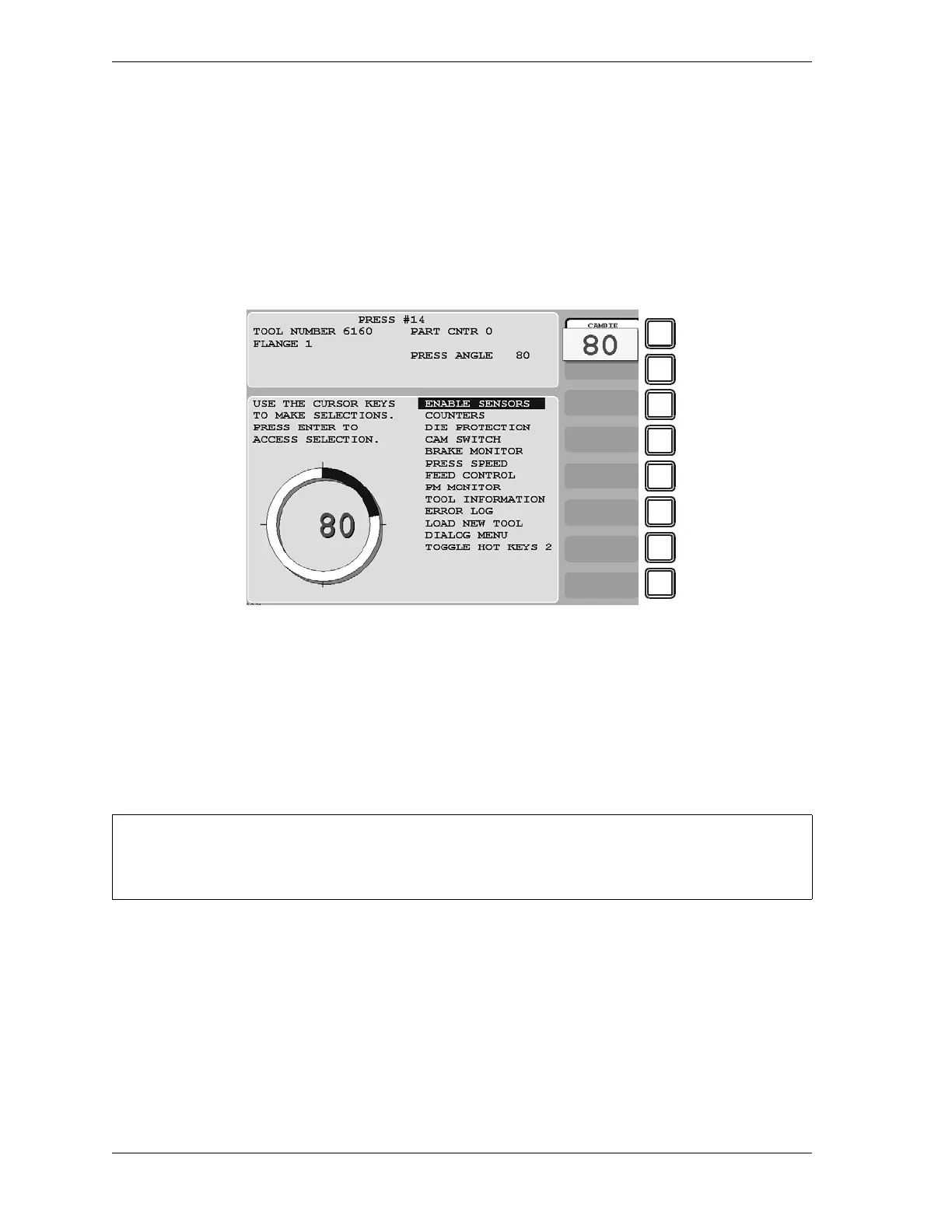

Figure 6-7. Crankshaft Angle Window Displayed on Main Run Menu
DiProPAC has an optional “sensors disabled” output that turns on when the sensors are disabled.
See page 2-70 for details.
