SmartPAC 2 with WPC 2000 Integration User Manual 1128600
Program Mode 5-23
4. Select a “custom” name from the list. (The number of the custom name–e.g., CUSTOM
1–does not have to match the number of the sensor being programmed–e.g., SENSOR 1.)
If Sensor Enable Mode is set to AUTO BY SENSOR (see page 4-18), you are taken to the
Auto Enable by Sensor Counter screen (see next section). Otherwise, the Sensor Type
screen displays (see Setting Sensor Type, page 5-24).
Setting the “Auto Enable by Sensor” Counter Value
If Sensor Enable Mode is set to AUTO BY SENSOR in Initialization (see page 4-18), a screen
like the one shown in Figure 5-24 displays after you enter a sensor name.

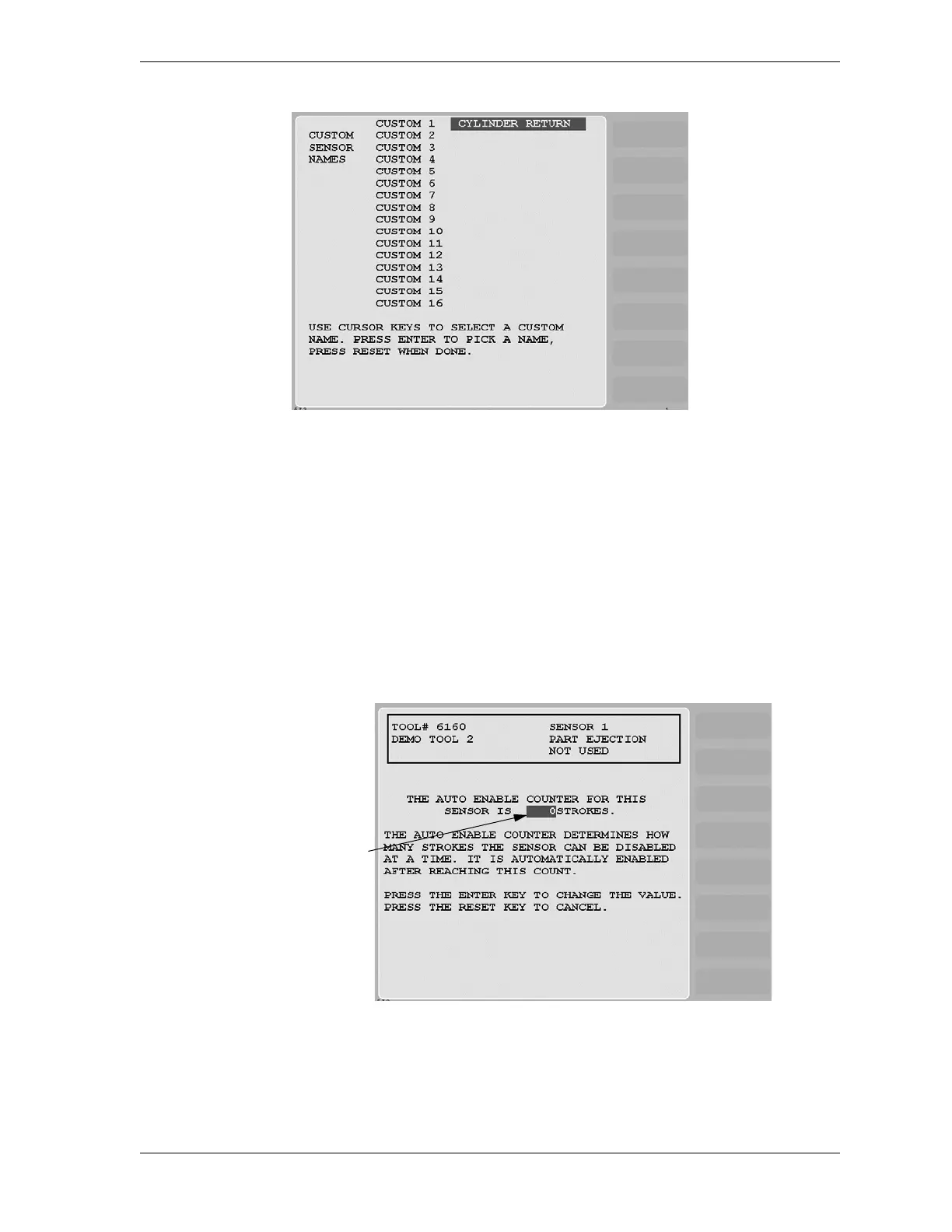

Figure 5-23. Custom Sensor Names Screen
Figure 5-24. Auto Enable by Sensor Counter Screen
Number of strokes
after which DiProPAC
auto enables this sensor
in the tool
