Phaser 4600/4620/4622 Printer Service Manual
REP 10.6
Revised
4 Repairs and Adjustments

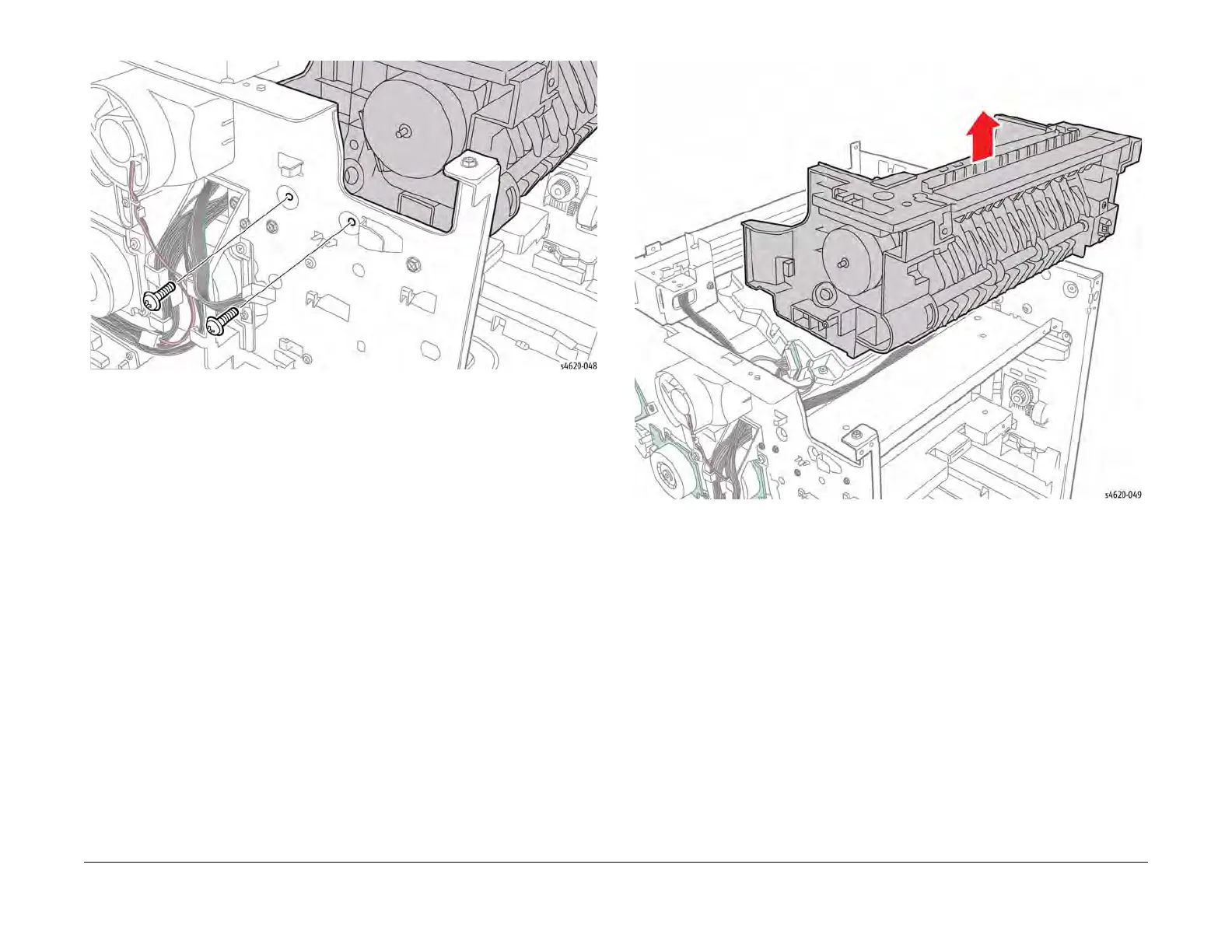

Figure 6 Remove the right side Exit Assembly screws
16. Raise the Exit Assembly up to remove, Figure 7.
Figure 7 Remove the Exit Assembly
